Rorschach, Saint Gallen, Switzerland presents a moderately suitable location for solar energy generation, though it faces typical challenges associated with Central European climates in the Northern Temperate Zone.

Seasonal Solar Performance

The solar energy output at this location varies significantly throughout the year. Summer provides the strongest performance at 5.68 kWh per day per kW of installed capacity, making it the ideal season for solar generation. Spring follows as the second-best period with 4.79 kWh per day per kW, offering excellent energy production as daylight hours increase and weather conditions improve. Autumn sees a notable decline to 2.94 kWh per day per kW as the region transitions toward winter conditions. Winter presents the most challenging period for solar generation, producing only 1.50 kWh per day per kW of installed capacity - less than one-third of summer output. For optimal year-round energy production from fixed solar panels at this location, the ideal installation angle is 41 degrees tilted toward the south. This angle maximizes total annual solar collection by accounting for the sun's varying position throughout the seasons.

Environmental and Weather Challenges

Several factors at Rorschach can significantly impact solar energy production and require careful consideration during installation:

• Snow accumulation: Winter snowfall can completely block solar panels, eliminating energy production until cleared
• Frequent cloud cover: The region experiences substantial overcast conditions, particularly during autumn and winter months
• Lake effect weather: Proximity to Lake Constance can create additional moisture and fog conditions that reduce solar irradiance
• Alpine weather patterns: Sudden weather changes and precipitation common to the Swiss climate can impact consistent energy generation

Preventative Installation Measures

To maximize solar energy production despite these challenges, several installation strategies prove effective: Installing panels at steeper angles (closer to the recommended 41 degrees) helps snow slide off naturally rather than accumulating. Ensuring adequate spacing between panel rows prevents snow buildup and allows for easier maintenance access during winter months. Selecting high-quality panels with anti-reflective coatings improves performance during overcast conditions by capturing more diffuse light. Installing micro-inverters or power optimizers helps maintain system performance when individual panels experience shading from clouds or weather conditions. Regular maintenance scheduling becomes crucial, particularly for snow removal during winter months and cleaning to remove moisture-related debris. Proper drainage around the installation site prevents water accumulation that could create additional humidity and reduce system efficiency. The location's moderate solar potential makes it viable for renewable energy generation, though realistic expectations about seasonal variation and weather-related impacts are essential for successful solar installations.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 245 locations across Switzerland. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Switzerland by location

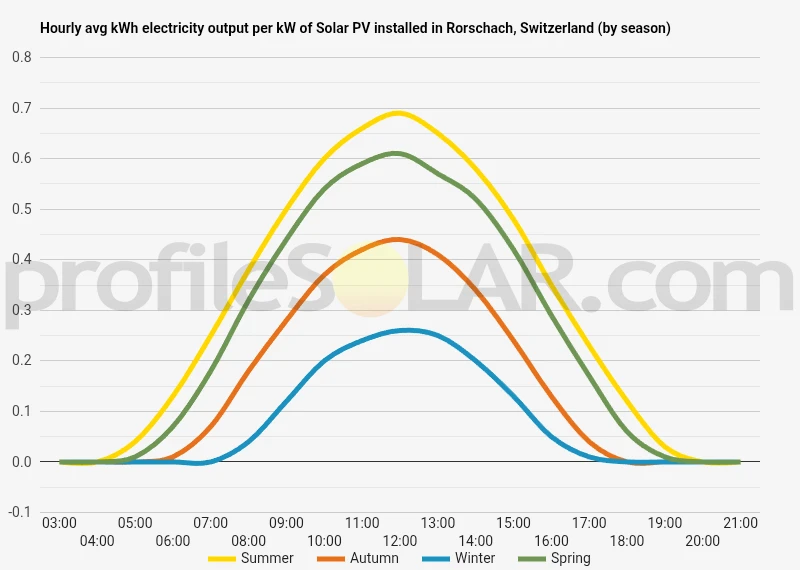

Solar output per kW of installed solar PV by season in Rorschach

Seasonal solar PV output for Latitude: 47.4972, Longitude: 9.5037 (Rorschach, Switzerland), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Rorschach, Switzerland

To maximize your solar PV system's energy output in Rorschach, Switzerland (Lat/Long 47.4972, 9.5037) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rorschach, Switzerland

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rorschach, Switzerland. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
31° South in Summer	50° South in Autumn	61° South in Winter	40° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rorschach, Switzerland

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rorschach, Switzerland.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rorschach, Switzerland

Topographical Features Around Rorschach

Rorschach sits on the southeastern shore of Lake Constance (Bodensee) in northeastern Switzerland, positioned where the rolling hills of the Swiss Plateau meet the waters of this large Alpine lake. The town itself occupies relatively flat terrain along the lakeshore, with elevations ranging from approximately 400 to 450 meters above sea level. This lakeside position creates a distinctive topographical setting where gentle slopes rise gradually from the water's edge toward the south and east. The immediate surroundings feature a mix of flat to gently undulating terrain that characterizes much of the Rhine Valley region. To the south and southeast of Rorschach, the landscape begins its gradual ascent toward the Appenzell Alps, creating a series of rolling hills and moderate slopes that extend inland from the lake. These hills typically range from 500 to 800 meters in elevation within a 10-kilometer radius of the town. The western and northern areas remain relatively flat due to their proximity to Lake Constance and the Rhine Valley floor. This creates an asymmetrical topographical pattern where the southern sectors show increasing elevation and slope gradients, while the northern areas maintain the gentle, lake-influenced terrain typical of major European lake basins.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Rorschach lie in the gently sloping agricultural areas to the south and southeast of the town. These zones offer several topographical advantages, including moderate south-facing slopes that naturally optimize solar panel orientation while providing adequate drainage and accessibility for construction and maintenance activities. The rolling hills between Rorschach and the communities of Goldach and Untereggen present particularly suitable terrain. These areas feature gradual elevation changes that create natural south-facing aspects without excessive steepness that would complicate installation or increase erosion risks. The slopes in this region typically range from 5 to 15 degrees, which falls within the optimal range for ground-mounted solar arrays. Agricultural plateaus and broad ridge tops in the southeastern quadrant also offer excellent potential for solar development. These elevated but relatively flat areas provide stable foundations and reduced shading concerns while maintaining good access to existing road networks. The higher elevation positions also tend to experience better air circulation, which can improve panel efficiency through natural cooling. Areas closer to the lakeshore, while topographically suitable due to their flat terrain, may face different considerations related to proximity to urban development and existing land use patterns. However, the gentle topography throughout much of the Rhine Valley floor provides technically feasible options for solar installations where land availability and zoning permit such development.

Switzerland solar PV Stats as a country

Switzerland ranks 25th in the world for cumulative solar PV capacity, with 3,449 total MW's of solar PV installed. This means that 4.70% of Switzerland's total energy as a country comes from solar PV (that's 16th in the world). Each year Switzerland is generating 399 Watts from solar PV per capita (Switzerland ranks 6th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Switzerland?

Yes, there are several incentives for businesses wanting to install solar energy in Switzerland. The Swiss Federal Office of Energy (SFOE) offers a range of financial support measures for businesses that want to invest in renewable energy sources such as solar power. These include grants, loans and tax deductions. Additionally, the Swiss government has set up a feed-in tariff system which guarantees a fixed price for electricity generated from renewable sources such as solar power. This helps to make investing in solar energy more attractive for businesses.

Do you have more up to date information than this on incentives towards solar PV projects in Switzerland? Please reach out to us and help us keep this information current. Thanks!
