Armagh, Northern Ireland, United Kingdom is not an ideal location for year-round solar PV energy generation, though it does offer reasonable solar potential during certain seasons of the year.

Seasonal Solar Performance

The solar energy output varies dramatically throughout the year at this Northern Temperate Zone location. Summer provides the strongest performance at 4.78kWh per day per kW of installed solar capacity, making it an excellent time for solar generation. Spring also delivers solid results with 4.07kWh per day per kW, offering nearly comparable output to the peak summer months. However, the location shows significant seasonal limitations. Autumn drops to just 1.71kWh per day per kW, while winter performance becomes quite poor at only 0.83kWh per day per kW. This means solar panels produce nearly six times more energy in summer compared to winter months. For optimal year-round energy capture, solar panels at this location should be installed at a fixed tilt angle of 46 degrees facing south. This angle maximizes total annual solar production by accounting for the sun's varying position throughout the seasons and the Earth's elliptical orbit.

Local Factors Affecting Solar Production

Several environmental and weather factors in Armagh can significantly impact solar panel performance:

• Frequent cloud cover and overcast conditions typical of Ireland's maritime climate
• Regular rainfall that can reduce solar irradiance
• High humidity levels that may affect panel efficiency
• Strong winds that could damage improperly secured installations
• Salt air from nearby coastal areas that can cause corrosion over time

Installation Measures for Better Performance

To maximize solar energy production despite these challenging conditions, several preventative measures should be implemented:

• Install panels with anti-reflective coatings to capture maximum light during cloudy conditions
• Use robust mounting systems designed to withstand high winds and storms
• Choose panels and components with marine-grade corrosion resistance
• Ensure proper drainage systems to prevent water accumulation
• Plan for regular cleaning and maintenance to remove dirt, moss, and debris that accumulate in the humid climate

While Armagh faces significant seasonal variation and weather challenges for solar generation, proper installation techniques and equipment selection can help optimize the available solar resource, particularly during the productive spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

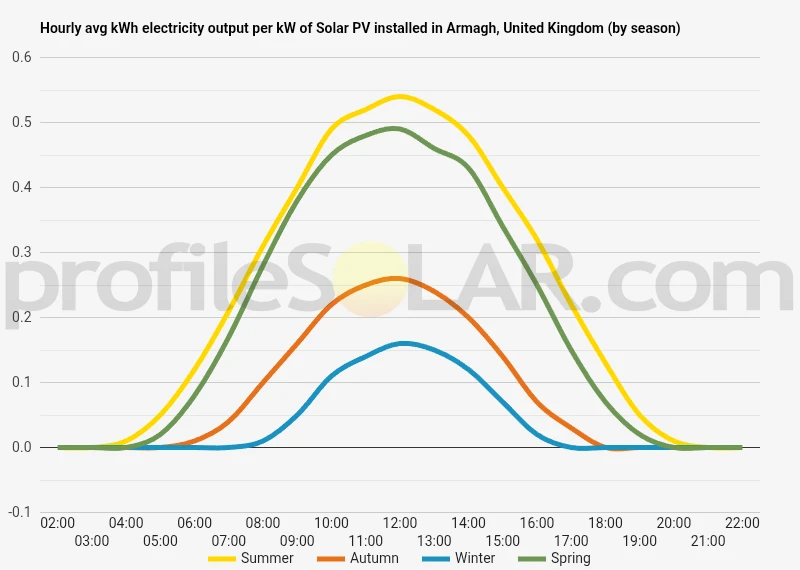

Solar output per kW of installed solar PV by season in Armagh

Seasonal solar PV output for Latitude: 54.3508, Longitude: -6.6674 (Armagh, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 46° South in Armagh, United Kingdom

To maximize your solar PV system's energy output in Armagh, United Kingdom (Lat/Long 54.3508, -6.6674) throughout the year, you should tilt your panels at an angle of 46° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Armagh, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Armagh, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 46° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
38° South in Summer	57° South in Autumn	67° South in Winter	46° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Armagh, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Armagh, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Armagh, United Kingdom

Topographical Features Around Armagh

The landscape surrounding Armagh presents a gently undulating terrain characteristic of County Armagh in Northern Ireland. The city sits at approximately 60 meters above sea level, positioned within a region of rolling hills and shallow valleys that create a varied but generally manageable topography for development purposes. To the north and west of Armagh, the land rises gradually toward the foothills of the Sperrins, though these elevations remain modest and do not create significant shadowing concerns for the immediate vicinity. The terrain features a series of low ridges and gentle slopes, with elevations typically ranging between 50 and 150 meters above sea level within a 10-kilometer radius of the city center. The River Callan flows through the area, creating some natural depressions and flatter valley floors that could prove advantageous for large-scale installations. These river valleys often provide more level ground while maintaining good drainage characteristics essential for solar infrastructure.

Optimal Areas for Large-Scale Solar Development

The most promising locations for substantial solar photovoltaic installations lie to the south and southwest of Armagh, where the topography opens into broader, flatter agricultural areas. These zones benefit from reduced terrain complexity while maintaining sufficient elevation to avoid potential flooding issues associated with lower-lying river valleys. The agricultural lands extending toward Markethill and beyond offer particularly suitable conditions, featuring gentle south-facing slopes that would naturally optimize panel orientation. These areas combine relatively flat terrain with good accessibility via existing road networks, making them practical for large-scale development and maintenance operations. Areas to the east toward Portadown also present favorable conditions, where the landscape transitions into the Lagan Valley system. This region provides extensive flat to gently sloping terrain with fewer obstructions from hills or significant vegetation that might create shading issues. The western approaches toward Tynan and Middletown offer additional potential, particularly on elevated plateaus that provide good exposure while remaining sufficiently level for efficient panel installation. These locations benefit from being positioned on higher ground without the complications of steep gradients or complex terrain features. When considering large-scale solar development in this region, the key advantages lie in the generally modest topographical variations, good drainage characteristics of the elevated areas, and the availability of extensive agricultural land that could accommodate substantial installations without significant grading or terrain modification requirements.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
