The location of Ayr, Scotland, United Kingdom, situated in the Northern Temperate Zone at coordinates 55.3974, -4.7446, presents a mixed picture for solar PV energy generation throughout the year. While the area experiences significant seasonal variations in solar output, it still offers potential for renewable energy production.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Ayr, Scotland, with an impressive daily output of 5.10 kWh per kW of installed solar capacity. Spring follows closely behind, generating 4.22 kWh/day. However, the performance drops considerably during autumn and winter, with outputs of 1.68 kWh/day and 0.81 kWh/day, respectively.

These figures highlight the stark contrast between the longer, sunnier days of summer and the shorter, darker days of winter in this northern latitude. The substantial difference in seasonal output underscores the importance of efficient energy storage solutions to balance the fluctuations throughout the year.

Optimal Panel Installation

To maximize year-round solar energy production in Ayr, Scotland, fixed solar panels should be installed at a tilt angle of 46 degrees facing south. This angle is calculated to optimize the panels' exposure to sunlight throughout the year, taking into account the location's latitude and the Earth's elliptical orbit.

Environmental and Weather Considerations

Several factors could potentially impede solar production in Ayr:

1. Cloud cover: The region experiences frequent overcast conditions, particularly in autumn and winter, which can significantly reduce solar irradiance.
2. Rainfall: Ayr receives considerable precipitation throughout the year, which can affect panel efficiency.
3. Short winter days: The location's northern latitude results in very short days during winter months, limiting solar energy production.

To mitigate these challenges, consider the following preventative measures:

• Use high-efficiency solar panels designed to perform well in low-light conditions.
• Implement a robust cleaning schedule to remove dirt and debris, ensuring optimal panel performance.
• Consider incorporating solar tracking systems to maximize exposure during limited daylight hours.
• Pair the solar PV system with energy storage solutions to balance seasonal variations in output.

While Ayr may not be an ideal location for year-round solar energy production, the strong performance during summer and spring months still makes it a viable option for renewable energy generation, especially when combined with appropriate energy storage and management systems.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 756 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

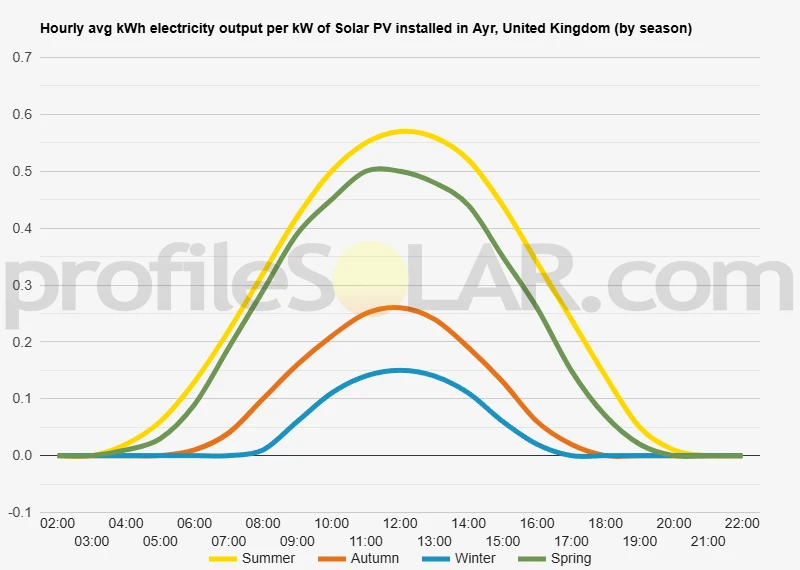

Solar output per kW of installed solar PV by season in Ayr

Seasonal solar PV output for Latitude: 55.3974, Longitude: -4.7446 (Ayr, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 46° South in Ayr, United Kingdom

To maximize your solar PV system's energy output in Ayr, United Kingdom (Lat/Long 55.3974, -4.7446) throughout the year, you should tilt your panels at an angle of 46° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ayr, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ayr, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 46° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
39° South in Summer	58° South in Autumn	68° South in Winter	47° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ayr, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ayr, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ayr, United Kingdom

The topography around Ayr, United Kingdom, is characterized by a diverse landscape that transitions from coastal plains to gently rolling hills as you move inland. Situated on the western coast of Scotland, Ayr benefits from a relatively flat shoreline with sandy beaches and low-lying areas near the sea. This coastal strip gradually gives way to undulating terrain as you travel eastward. The immediate surroundings of Ayr feature a mix of urban development and agricultural land. The River Ayr meanders through the area, creating a shallow valley that adds some variation to the otherwise modest relief. As you move further from the town center, the landscape becomes more rural, with fields and pastures dotting the countryside.

Inland Topography

Moving inland and to the southeast, the terrain becomes more pronounced, with hills and valleys becoming more prominent features of the landscape. The Carrick Hills, located to the south of Ayr, offer some of the most significant elevations in the vicinity, with gentle slopes and rounded summits typical of the region's topography. To the east and northeast, the land continues to rise gradually, forming part of the Southern Uplands. This area is characterized by a series of hills and valleys, with some steeper inclines and more rugged terrain compared to the coastal areas.

Potential for Solar PV

When considering areas suitable for large-scale solar PV installations near Ayr, several factors come into play. The most promising locations would likely be found in the gently sloping areas to the east and southeast of the town, where the land rises away from the coast. These areas offer several advantages for solar PV development: 1. They typically receive more consistent sunlight due to their elevation and reduced coastal cloud cover. 2. The gradual slopes provide good sun exposure throughout the day. 3. There is often more available land that is not prime agricultural territory or densely populated. Specific regions that might be suitable include the areas around Coylton and Dalrymple, where there are expanses of open land with favorable topography. The gently rolling hills in these areas could accommodate large solar arrays while minimizing visual impact on the landscape. It's important to note that while the topography is suitable in many areas, other factors such as grid connection, local planning regulations, and environmental considerations would also play crucial roles in determining the feasibility of large-scale solar PV projects in the region around Ayr.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
