Ballymena, a town in County Antrim, Northern Ireland, presents a mixed picture for solar PV energy generation. Located in the Northern Temperate Zone, this area experiences significant seasonal variations in solar energy potential.

Seasonal Solar Output

The solar energy production in Ballymena fluctuates considerably throughout the year. Summer stands out as the most productive season, with an average daily output of 4.87kWh per kW of installed solar capacity. Spring follows closely behind, generating 4.14kWh/day. However, the output drops dramatically during autumn (1.77kWh/day) and reaches its lowest point in winter (0.88kWh/day).

These figures indicate that solar PV systems in Ballymena are most effective from late spring through early autumn. During this period, longer daylight hours and generally clearer skies contribute to higher energy production. The substantial decline in output during autumn and winter highlights the challenges of relying solely on solar power in this location year-round.

Optimal Panel Installation

To maximize year-round solar energy production in Ballymena, fixed solar panels should be installed at a tilt angle of 46 degrees facing south. This angle is calculated to optimize the panels' exposure to sunlight throughout the year, taking into account the town's latitude and seasonal sun positions.

Environmental and Weather Factors

Several factors can impact solar energy production in Ballymena:

1. Cloud cover: The region is known for its frequent cloud cover, which can significantly reduce solar panel efficiency.
2. Rainfall: Ballymena experiences considerable rainfall throughout the year, which can affect panel performance and require more frequent cleaning.
3. Short winter days: The location's northern latitude results in very short days during winter, severely limiting solar energy production during this season.

Preventative Measures

To mitigate these challenges and enhance solar energy production, consider the following measures:

• Use high-efficiency solar panels designed to perform well in low-light conditions.
• Implement a robust cleaning schedule to combat the effects of frequent rainfall and potential dirt accumulation.
• Consider integrating a hybrid system with other renewable energy sources or battery storage to compensate for the low winter output.
• Ensure proper spacing between panels to minimize shading and allow for natural cleaning by rainfall.

While Ballymena's location presents some challenges for year-round solar energy production, careful planning and appropriate technology can still make solar PV a viable part of the local energy mix, particularly during the more productive spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

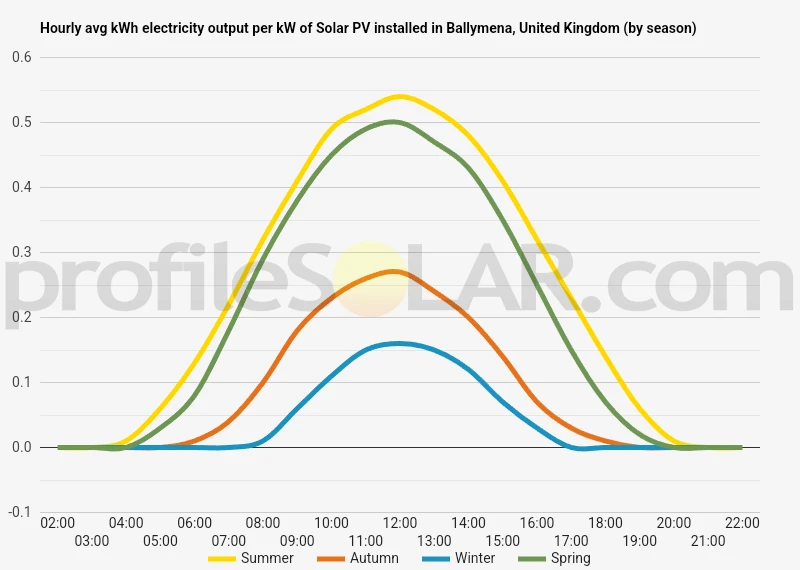

Solar output per kW of installed solar PV by season in Ballymena

Seasonal solar PV output for Latitude: 54.8609, Longitude: -6.2819 (Ballymena, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 4.87kWh/day in Summer.

Average 1.77kWh/day in Autumn.

Average 0.88kWh/day in Winter.

Average 4.14kWh/day in Spring.

Ideally tilt fixed solar panels 46° South in Ballymena, United Kingdom

To maximize your solar PV system's energy output in Ballymena, United Kingdom (Lat/Long 54.8609, -6.2819) throughout the year, you should tilt your panels at an angle of 46° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 54.8609, Longitude: -6.2819, the ideal angle to tilt panels is 46° South

Seasonally adjusted solar panel tilt angles for Ballymena, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ballymena, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 46° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ballymena, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ballymena, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ballymena, United Kingdom

The topography around Ballymena, located in County Antrim, Northern Ireland, is characterized by a mix of gently rolling hills and low-lying valleys. The town itself sits in a basin formed by several rivers, including the Main, Braid, and Kells Water. The surrounding landscape gradually rises from the town center, with elevations generally increasing as you move away from Ballymena.

To the west and northwest of Ballymena, the terrain becomes more hilly as it approaches the Antrim Plateau and the Antrim Hills. These areas feature steeper slopes and higher elevations, with some peaks reaching over 300 meters above sea level. To the east, the land gradually descends towards the coast of the North Channel, about 20 kilometers away.

The southern and southeastern parts of the region around Ballymena tend to be flatter, with more expansive lowlands and gentle slopes. This area is part of the Bann Valley, which extends southwards towards Lough Neagh, the largest freshwater lake in the British Isles.

When considering areas nearby that would be most suited for large-scale solar PV (photovoltaic) installations, the southern and southeastern regions around Ballymena offer the most promise. These areas have several advantages for solar energy production:

1. Flatter terrain, which makes it easier and more cost-effective to install large arrays of solar panels
2. Fewer obstructions from hills or mountains that could cast shadows on the panels
3. Generally larger, more open spaces that could accommodate expansive solar farms
4. Potentially lower land costs compared to areas closer to the coast or in more hilly regions

However, it's important to note that Northern Ireland, including the Ballymena area, receives relatively less sunlight compared to more southern latitudes. This factor would need to be carefully considered when planning any large-scale solar PV projects in the region. Additionally, local zoning regulations, grid connection capabilities, and environmental considerations would all play crucial roles in determining the feasibility and exact locations of such installations.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.

Helping you assess viability of solar PV for your site

Calculate Your Optimal Solar Panel Tilt Angle: A Comprehensive Guide

Enhance your solar panel's performance with our in-depth guide. Determine the best tilt angle using hard data, debunk common misunderstandings, and gain insight into how your specific location affects solar energy production.
