Solar Energy Potential in Brentwood, England, UK

Brentwood, England, located in the United Kingdom, offers moderate potential for solar energy generation throughout the year. Situated in the Northern Temperate Zone, this location experiences significant seasonal variations in solar output. Summer proves to be the most productive season for solar energy in Brentwood, England, with an average daily output of 5.13 kWh per kW of installed solar capacity. Spring follows closely behind, generating 4.41 kWh/day. These seasons provide the ideal conditions for maximizing solar energy production, with longer daylight hours and generally clearer skies. Autumn sees a considerable drop in solar output, producing an average of 2.29 kWh/day. Winter, as expected, offers the lowest solar energy potential, with a daily average of just 1.03 kWh per kW of installed capacity. This significant seasonal variation highlights the importance of efficient energy storage solutions and alternative energy sources during the colder months.

Optimizing Solar Panel Installation

To maximize year-round solar energy production in Brentwood, England, fixed solar panels should be installed at a tilt angle of 44 degrees facing South. This optimal angle takes into account the location's latitude and the Earth's elliptical orbit, ensuring the best possible exposure to sunlight throughout the year.

Environmental Factors and Mitigation Strategies

While Brentwood's location is generally suitable for solar energy production, there are some environmental factors that could impact efficiency: 1. Cloud cover: The UK is known for its cloudy weather, which can reduce solar panel efficiency. To mitigate this, consider using high-efficiency panels designed to perform well in diffuse light conditions. 2. Rain and humidity: Frequent rainfall can lead to dirt accumulation on panels. Installing self-cleaning panels or implementing regular cleaning schedules can help maintain optimal performance. 3. Limited winter sunlight: The significant drop in winter output highlights the need for a robust energy storage system or hybrid energy solutions to ensure consistent power supply year-round. By addressing these factors during the installation process and employing appropriate maintenance strategies, Brentwood residents can maximize their solar energy potential and contribute to a more sustainable energy future.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

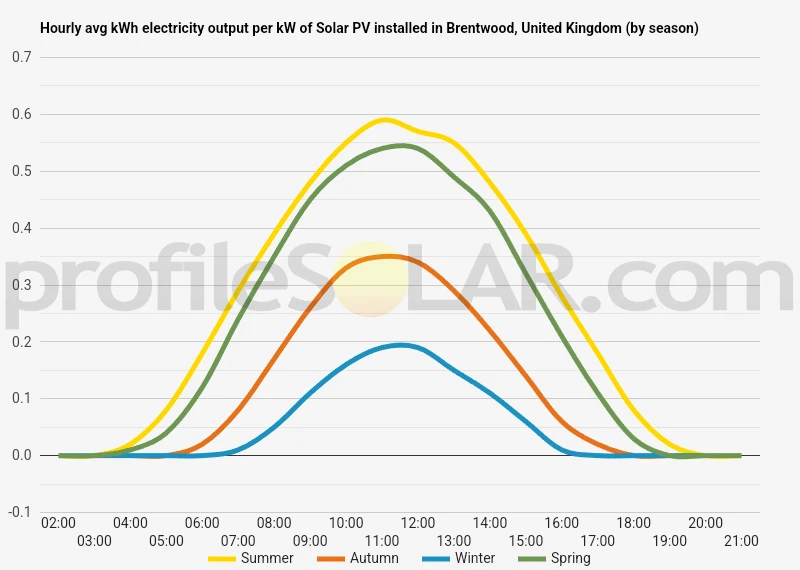

Solar output per kW of installed solar PV by season in Brentwood

Seasonal solar PV output for Latitude: 51.6548, Longitude: 0.3165 (Brentwood, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Brentwood, United Kingdom

To maximize your solar PV system's energy output in Brentwood, United Kingdom (Lat/Long 51.6548, 0.3165) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Brentwood, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Brentwood, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	55° South in Autumn	65° South in Winter	44° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Brentwood, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Brentwood, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Brentwood, United Kingdom

The topography around Brentwood, United Kingdom, is characterized by gently rolling hills and shallow valleys typical of the Essex countryside. The town itself sits on a ridge, with elevations ranging from about 50 to 100 meters above sea level. The surrounding landscape is a mix of open farmland, scattered woodlands, and small villages.

To the north and east of Brentwood, the land gradually slopes downward towards the River Crouch and its tributaries. This area features a patchwork of agricultural fields and meadows, interspersed with hedgerows and small copses. To the south and west, the terrain becomes slightly more undulating, with some steeper hillsides and more pronounced valleys.

For large-scale solar PV installations, the most suitable areas nearby would likely be found in the flatter, more open spaces to the north and east of Brentwood. These areas offer several advantages for solar energy production:

• They have fewer obstructions that could cast shadows on solar panels, such as tall buildings or dense forests.
• The relatively flat terrain makes construction and maintenance of solar arrays easier and more cost-effective.
• There are larger contiguous areas of open land, which allows for more efficient use of space in solar farm layouts.

However, it's important to note that any large-scale solar PV project would need to carefully consider factors beyond just topography. These include local planning regulations, grid connection availability, environmental impact assessments, and the agricultural value of the land. The gentle slopes found in much of the area around Brentwood could potentially be advantageous for solar installations, as a slight tilt towards the south can improve the efficiency of fixed solar panels in the Northern Hemisphere.

While the immediate vicinity of Brentwood may have limited space for very large solar farms due to existing development and valuable agricultural land, there could be opportunities for smaller-scale installations or for integrating solar PV into new building developments within the town itself.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
