Solar PV Analysis of Brierley Hill, United Kingdom
Brierley Hill in the United Kingdom is a decent location for generating energy via solar PV systems, but it is not ideal all year round. This location would be most productive in summer and spring, where you can expect to generate around 5.27kWh/day and 4.42kWh/day respectively per kW of installed solar. In autumn and winter, the production drops significantly to 2.14kWh/day and 1.01kWh/day respectively.
In order to maximize solar energy production throughout the year at this location, fixed panel installations should ideally be tilted at an angle of 44 degrees facing southwards.
However, there are certain factors that could potentially impede solar production at Brierley Hill due to its geographical location and climate conditions:
1) Weather: The UK often experiences cloudy weather which can reduce the amount of sunlight reaching your panels.
2) Topography: Brierley Hill is located in a hilly area which might result in shading issues depending on the specific site.
3) Environmental Factors: Any tall buildings or trees surrounding your property could also cast shadows over your panels reducing their efficiency.
To mitigate these issues:
1) Weather: While you cannot control the weather, using high-quality panels that perform well under diffused light conditions (such as monocrystalline panels) can help maintain productivity during cloudy days.
2) Topography & Environmental Factors: Careful site selection can help avoid shading from hills or nearby structures. If unavoidable, consider using micro-inverters or power optimizers which allow each panel to operate independently thereby minimizing losses from shading.
In conclusion, while Brierley Hill may not provide optimal conditions for solar energy generation year-round due to its seasonal variations in sunlight exposure and potential impediments such as weather patterns and topographical features; with careful planning and appropriate equipment choices it's still possible to generate a significant amount of renewable energy from this location.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in United Kingdom by location

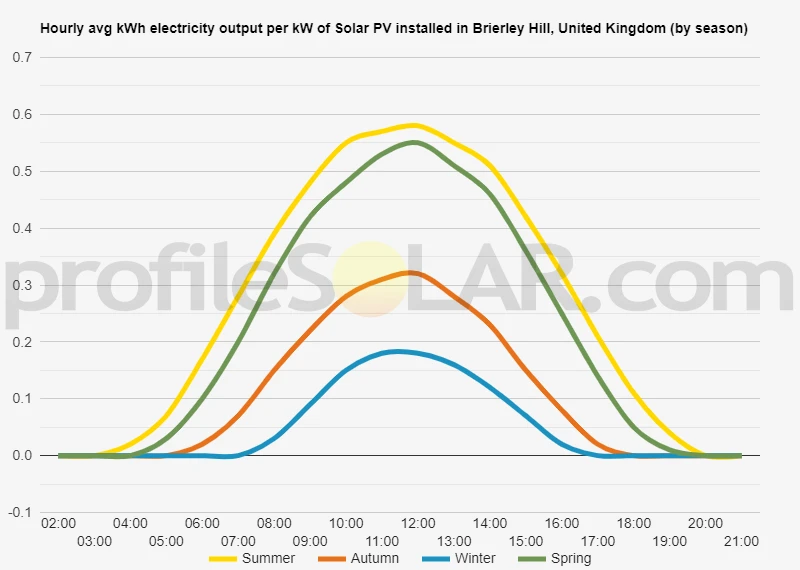

Solar output per kW of installed solar PV by season in Brierley Hill
Seasonal solar PV output for Latitude: 52.4811, Longitude: -2.1156 (Brierley Hill, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 44° South in Brierley Hill, United Kingdom
To maximize your solar PV system's energy output in Brierley Hill, United Kingdom (Lat/Long 52.4811, -2.1156) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Brierley Hill, United Kingdom
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Brierley Hill, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 36° South in Summer | 55° South in Autumn | 66° South in Winter | 44° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Brierley Hill, United Kingdom
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Brierley Hill, United Kingdom.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Brierley Hill, United Kingdom
Brierley Hill is located in the West Midlands region of England, United Kingdom. The topography is generally flat to gently rolling, characteristic of much of the industrial heartland in this part of England. The area has a mix of urban and suburban environments with some areas covered by parks and open spaces.
The most suitable areas for large-scale solar PV installations would be flat or gently sloping lands that are not shadowed by buildings or trees for most parts of the day. These could include open fields, industrial estates with large roofs, or brownfield sites (previously developed land now vacant).
However, it's important to note that planning permission would be required for such installations and various factors including visual impact on the landscape, proximity to residential areas and potential effect on local wildlife habitats would need to be taken into account before any development.
As Brierley Hill is situated within an urbanized area, one potential approach could be rooftop solar panel installations on commercial or industrial buildings. This can make use of existing structures without needing additional land space.
For larger ground-mounted solar farms more suited towards rural settings, looking beyond Brierley Hill towards less densely populated surrounding regions might prove more feasible. Areas like agricultural lands may also present opportunities if they are not prime farmland and their conversion doesn't adversely affect food production.
In any case, a detailed site-specific assessment considering both environmental and socio-economic factors should be carried out before deciding on specific locations for large-scale solar PV projects.
United Kingdom solar PV Stats as a country
United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United Kingdom?
Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.
Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
