Burntwood, England, United Kingdom is a moderately suitable location for solar PV energy generation, though it faces the typical challenges associated with the Northern Temperate Zone's climate and latitude.

Seasonal Solar Performance

The solar energy output at Burntwood varies dramatically throughout the year. Summer delivers the strongest performance at 5.09kWh per day per kW of installed solar capacity, making it the prime season for solar generation. Spring follows as the second-best period with 4.21kWh per day per kW, offering excellent energy production as daylight hours increase and weather conditions improve. Autumn sees a significant decline to 2.18kWh per day per kW as the sun's angle drops and cloud cover typically increases. Winter presents the greatest challenge, producing only 1.03kWh per day per kW of installed capacity - roughly one-fifth of summer output. For optimal year-round performance at this location, solar panels should be installed at a fixed tilt angle of 45 degrees facing south. This angle maximizes total annual energy production by accounting for the sun's varying elevation throughout the seasons.

Local Factors Affecting Solar Production

Several environmental and weather factors at Burntwood can significantly impact solar energy generation:

• Frequent cloud cover and overcast conditions - Common throughout the year but particularly problematic during autumn and winter months
• High humidity and moisture levels - Can reduce panel efficiency and create condensation issues
• Seasonal weather patterns - Including fog, drizzle, and extended periods of grey skies typical of the British climate
• Potential shading from vegetation - Deciduous trees may cause variable shading patterns between seasons

Preventative Measures for Better Performance

Several installation strategies can help maximize solar energy production despite these challenges:

• Choose high-efficiency panels - Modern panels perform better in low-light and overcast conditions
• Implement micro-inverters or power optimizers - These minimize the impact of partial shading and varying light conditions across the array
• Ensure proper panel spacing and mounting - Adequate ventilation prevents moisture buildup and maintains optimal operating temperatures
• Regular maintenance scheduling - Cleaning panels and removing debris becomes more critical in humid climates
• Strategic positioning - Avoid areas with potential seasonal shading from nearby structures or vegetation

Despite these challenges, Burntwood can still provide reasonable solar energy returns, particularly during the spring and summer months when production is at its peak.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

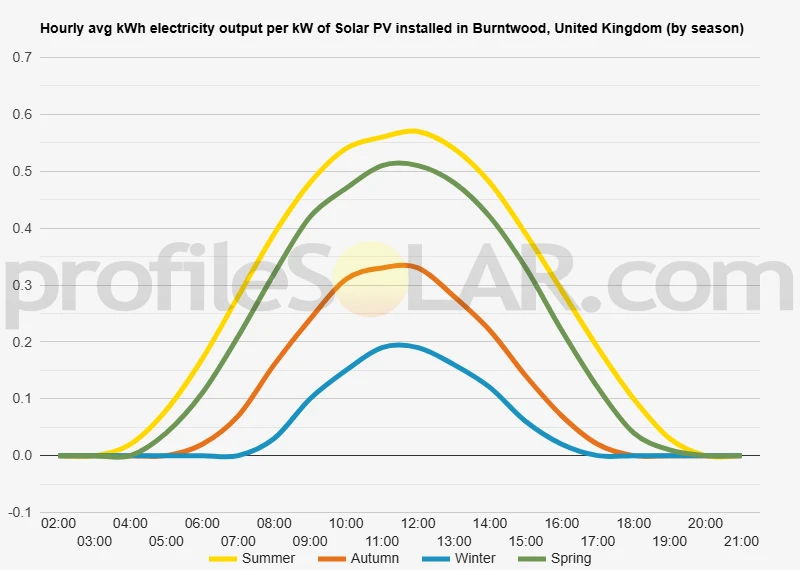

Solar output per kW of installed solar PV by season in Burntwood

Seasonal solar PV output for Latitude: 52.6834, Longitude: -1.928 (Burntwood, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 45° South in Burntwood, United Kingdom

To maximize your solar PV system's energy output in Burntwood, United Kingdom (Lat/Long 52.6834, -1.928) throughout the year, you should tilt your panels at an angle of 45° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Burntwood, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Burntwood, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 45° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
36° South in Summer	56° South in Autumn	66° South in Winter	44° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Burntwood, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Burntwood, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Burntwood, United Kingdom

Topographical Features Around Burntwood

Burntwood sits within the gently rolling landscape of Staffordshire, positioned on elevated ground that forms part of the broader Cannock Chase area. The terrain around this market town is characterized by modest hills and shallow valleys, with elevations typically ranging between 150 and 200 meters above sea level. The topography reflects the underlying geology of the region, which consists primarily of sandstone formations that have been shaped by centuries of weathering and erosion.

The landscape immediately surrounding Burntwood features a mix of undulating farmland, woodland patches, and former mining areas that have been reclaimed and restored. To the east and northeast, the ground tends to slope more gently toward the Trent Valley, while the western approaches rise toward the higher ground of Cannock Chase, an Area of Outstanding Natural Beauty. The terrain is generally well-drained due to the permeable sandstone bedrock, though there are several small watercourses and brooks that have carved shallow valleys through the area.

The region's topography has been significantly influenced by its industrial heritage, particularly coal mining activities that ceased in the latter half of the 20th century. Many former mining sites have been rehabilitated, creating relatively flat, open areas that contrast with the naturally rolling countryside. These reclaimed industrial sites often feature engineered landscapes with gentle gradients and good drainage systems.

Optimal Areas for Large-Scale Solar Development

The most promising locations for substantial solar photovoltaic installations around Burntwood would be the former industrial and mining sites that have undergone restoration. These areas typically offer several key advantages including relatively flat terrain, existing infrastructure connections, and fewer competing land uses compared to active agricultural areas. The engineered nature of these reclaimed sites often means they have been designed with appropriate drainage and access roads, making them particularly suitable for large-scale renewable energy projects.

South and southeast of Burntwood, the gently sloping agricultural land presents excellent opportunities for solar development. These areas benefit from favorable topographical conditions with gradual south-facing slopes that would optimize solar panel orientation. The terrain in these directions tends to be less fragmented by woodland and offers larger continuous parcels of land that could accommodate substantial solar arrays.

The flatter agricultural areas extending toward the Trent Valley, particularly those to the east and northeast of the town, would also be well-suited for solar installations. These locations combine gentle topography with good accessibility via the existing road network. The relatively open landscape in these areas experiences fewer issues with shading from trees or buildings, which is crucial for maximizing solar energy generation efficiency.

Areas closer to existing electrical infrastructure, such as those near the former industrial sites or along major transport corridors, would offer additional advantages for solar development. The proximity to power transmission lines and substations could significantly reduce the costs and complexity associated with connecting large solar installations to the national grid. The combination of suitable topography and existing infrastructure makes these locations particularly attractive for commercial-scale solar projects.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.
