Caerphilly, Wales, United Kingdom, located at latitude 51.6011 and longitude -3.2744, presents a moderate opportunity for solar PV energy generation throughout the year. This location in the Northern Temperate Zone experiences significant seasonal variations in solar energy production, which affects the overall efficiency of solar installations.

Seasonal Solar Production

Solar energy output in Caerphilly varies considerably across the seasons. Summer is the most productive period, with an average daily output of 5.36 kWh per kW of installed solar capacity. Spring follows as the second most productive season, generating 4.48 kWh per day. Autumn sees a significant drop in production to 2.25 kWh per day, while winter experiences the lowest output at just 1.01 kWh per day.

These figures indicate that solar PV systems in Caerphilly are most effective during the spring and summer months, from approximately April to September. During this period, longer daylight hours and generally clearer skies contribute to higher energy production.

Optimal Panel Tilt

For fixed panel installations in Caerphilly, Wales, the ideal tilt angle to maximize year-round solar production is 44 degrees facing south. This angle helps optimize energy capture across all seasons, balancing the lower sun angle in winter with the higher sun position in summer.

Environmental and Weather Factors

Several factors can impact solar production in Caerphilly:

1. Cloud cover: The region experiences frequent cloudy days, particularly in autumn and winter, which can significantly reduce solar output.
2. Rainfall: Caerphilly's climate includes regular rainfall, which can temporarily decrease panel efficiency.
3. Short winter days: The location's northern latitude results in very short days during winter, limiting solar production.

To mitigate these challenges, consider the following preventative measures:

• Use high-efficiency solar panels designed for low-light conditions
• Implement a robust cleaning schedule to remove dirt and debris
• Consider adding a solar tracking system to maximize energy capture, especially during shorter winter days
• Ensure proper drainage to prevent water accumulation on panels

While Caerphilly's location presents some challenges for solar PV generation, particularly during autumn and winter, the strong performance in spring and summer makes it a viable option for renewable energy production. With appropriate system design and maintenance, solar installations can still provide significant energy contributions throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

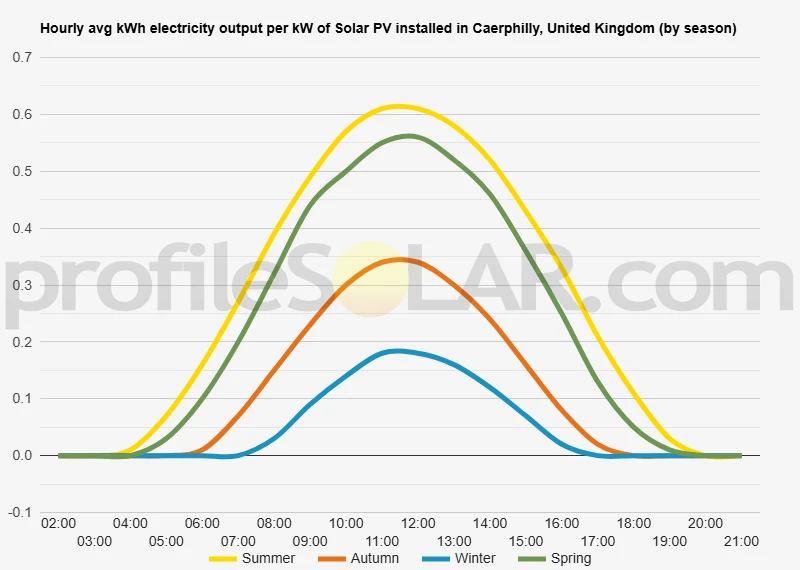

Solar output per kW of installed solar PV by season in Caerphilly

Seasonal solar PV output for Latitude: 51.6011, Longitude: -3.2744 (Caerphilly, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Caerphilly, United Kingdom

To maximize your solar PV system's energy output in Caerphilly, United Kingdom (Lat/Long 51.6011, -3.2744) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Caerphilly, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Caerphilly, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	55° South in Autumn	65° South in Winter	44° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Caerphilly, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Caerphilly, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Caerphilly, United Kingdom

Caerphilly, located in South Wales, United Kingdom, sits within a diverse and picturesque landscape. The town itself is nestled in a valley, surrounded by rolling hills and gentle slopes. To the north and west, the terrain becomes more rugged as it rises into the Brecon Beacons National Park, featuring higher elevations and steeper inclines. The southern and eastern areas gradually descend towards the coastal plains of the Bristol Channel. The immediate vicinity of Caerphilly is characterized by a mix of urban development and green spaces. The town center is relatively flat, but as you move outwards, the land begins to undulate. Notable features include Caerphilly Mountain to the north, which offers panoramic views of the surrounding area, and the Rhymney Valley to the east, carved out by the Rhymney River.

Potential for Solar PV Development

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations would be relatively flat or gently sloping, with good exposure to sunlight and minimal shading from hills or trees. The areas to the south and southeast of Caerphilly show the most promise for solar PV development. These regions tend to have more open, flatter terrain as they approach the coastal plain. The land here is often used for agriculture, which could potentially be repurposed or shared with solar installations. Specific locations that might be suitable include the areas around Rudry and Machen to the east, and the more open spaces between Caerphilly and Cardiff to the south. These areas benefit from slightly lower elevations and fewer obstructions, potentially maximizing solar exposure throughout the day. However, it's important to note that any large-scale solar development would need to carefully consider environmental impacts, local planning regulations, and the preservation of the area's natural beauty. The proximity to urban areas like Cardiff could be advantageous for energy distribution, but it also means that available land might be more limited or subject to competing interests. In conclusion, while the immediate surroundings of Caerphilly present some challenges for large-scale solar PV due to the hilly terrain, there are promising areas to the south and east that could be explored for such developments, balancing the need for renewable energy with the preservation of the region's distinctive landscape.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
