Cannock, England, a town in Staffordshire, United Kingdom, presents a mixed picture for solar energy generation. Located in the Northern Temperate Zone, this area experiences significant seasonal variations in solar potential.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Cannock, England, with an average daily output of 5.27 kWh per kW of installed capacity. Spring follows closely, generating 4.42 kWh per day. However, autumn and winter see a substantial drop in production, with 2.14 kWh and 1.01 kWh per day, respectively.

The stark contrast between summer and winter production highlights the challenges of year-round solar energy generation in this location. While the long summer days provide ample sunlight, the short, often overcast winter days significantly limit solar potential.

Optimal Panel Installation

To maximize year-round solar energy production in Cannock, England, fixed solar panels should be installed at a 45-degree angle facing south. This tilt helps optimize sunlight capture throughout the year, balancing between summer and winter sun angles.

Environmental and Weather Factors

Several factors can impact solar production in Cannock:

• Cloud cover: The UK is known for its frequent overcast conditions, which can reduce solar efficiency.
• Rainfall: Cannock experiences significant rainfall, which can temporarily decrease panel output.

To mitigate these issues, consider using high-efficiency panels that perform well in low-light conditions. Regular cleaning and maintenance of panels can also help maximize production by removing dirt and debris that may accumulate due to rain and pollution.

In conclusion, while Cannock's location is not ideal for year-round solar energy production, it still offers significant potential, especially during spring and summer. With proper installation and maintenance, solar PV systems can provide a valuable contribution to the area's renewable energy mix.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

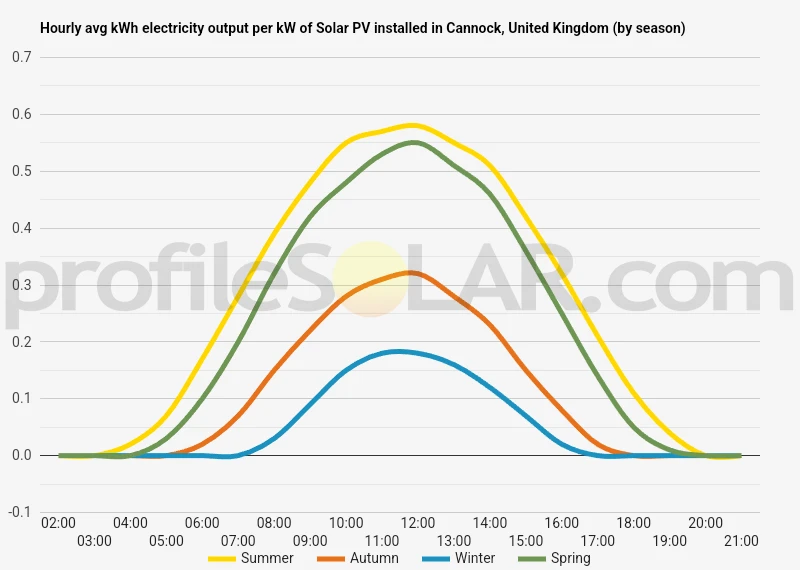

Solar output per kW of installed solar PV by season in Cannock

Seasonal solar PV output for Latitude: 52.7061, Longitude: -2.0061 (Cannock, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 45° South in Cannock, United Kingdom

To maximize your solar PV system's energy output in Cannock, United Kingdom (Lat/Long 52.7061, -2.0061) throughout the year, you should tilt your panels at an angle of 45° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cannock, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cannock, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 45° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
36° South in Summer	56° South in Autumn	66° South in Winter	45° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cannock, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cannock, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cannock, United Kingdom

Cannock, located in Staffordshire, England, sits within a diverse topographical landscape. The town itself is situated on relatively flat terrain, but it is surrounded by gently rolling hills and undulating countryside. To the west of Cannock, the land gradually rises towards Cannock Chase, an Area of Outstanding Natural Beauty. This elevated area consists of mixed woodland and heathland, with some parts reaching heights of around 240 meters above sea level. To the east and south of Cannock, the terrain becomes more level, transitioning into the broader West Midlands plateau. This area is characterized by a mix of agricultural land, small woodlands, and scattered urban developments. The landscape here is generally open and less dramatic than the Chase to the west.

Potential Areas for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations would be relatively flat, open spaces with good exposure to sunlight and minimal shading from trees or buildings. The agricultural lands to the east and south of Cannock present promising opportunities for solar development. These areas often feature expansive fields with few obstructions, making them potentially suitable for large solar arrays. The gently sloping terrain in some of these locations could even be advantageous, as south-facing slopes can increase the efficiency of solar panels. However, it's important to note that any large-scale solar development would need to balance energy production goals with preservation of agricultural land and local ecosystems. Areas immediately adjacent to Cannock Chase would likely be unsuitable due to their protected status and woodland cover. Brownfield sites or former industrial areas in the vicinity of Cannock might also offer potential for solar PV installations. These locations often have the advantage of being already developed and may have existing grid connections, potentially simplifying the implementation of large-scale solar projects. Ultimately, the suitability of any specific site for solar PV would require detailed assessment, taking into account factors such as local planning regulations, grid capacity, and environmental considerations. While the topography around Cannock offers some promising possibilities for solar energy development, careful planning and community engagement would be essential to ensure any such projects are implemented sustainably and sensitively.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
