Carryduff, Northern Ireland, United Kingdom, located in the Northern Temperate Zone, presents a mixed picture for solar PV energy generation. The location's potential for solar power varies significantly throughout the year, with notable seasonal differences in electricity output.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Carryduff, Northern Ireland, with an impressive average daily output of 5.21 kWh per kW of installed solar capacity. Spring follows closely behind, yielding 4.48 kWh/day. However, the performance drops considerably during autumn and winter, with outputs of 1.80 kWh/day and 0.81 kWh/day respectively.

These figures highlight the stark contrast between the warmer and colder months, indicating that solar energy production in Carryduff is most effective from late spring through early autumn. During this period, longer daylight hours and generally clearer skies contribute to higher energy yields.

Optimal Panel Installation

To maximize year-round solar production in Carryduff, Northern Ireland, fixed solar panels should be installed at a tilt angle of 45 degrees facing south. This optimal angle has been calculated to capture the most sunlight throughout the year, considering the location's latitude and seasonal sun positions.

Environmental and Weather Factors

Several factors can impact solar production in Carryduff:

1. Cloud cover: The region experiences frequent overcast conditions, particularly in autumn and winter, which can significantly reduce solar output.
2. Rainfall: Carryduff receives considerable rainfall throughout the year, which can affect panel efficiency.
3. Short winter days: Being in the Northern Temperate Zone, Carryduff experiences notably shorter days during winter, limiting solar exposure.

Preventative Measures

To mitigate these challenges and enhance solar energy production, consider the following measures:

• Use high-efficiency solar panels designed for low-light conditions
• Implement a robust cleaning schedule to combat the effects of rainfall and potential debris
• Consider adding a solar tracking system to maximize exposure during shorter winter days
• Explore battery storage options to balance out seasonal variations in energy production

While Carryduff's location presents some challenges for year-round solar energy production, proper planning and installation can still yield significant benefits, especially during the more favorable months of the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

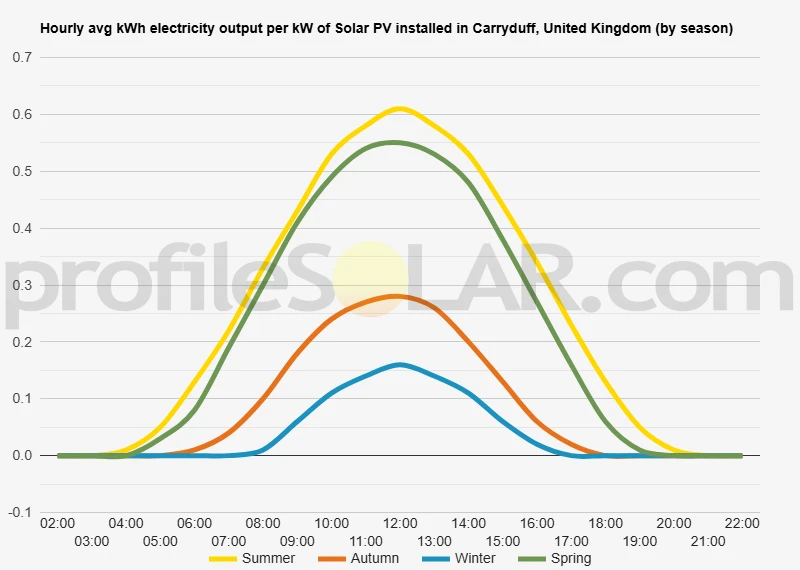

Solar output per kW of installed solar PV by season in Carryduff

Seasonal solar PV output for Latitude: 54.5137, Longitude: -5.8793 (Carryduff, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 45° South in Carryduff, United Kingdom

To maximize your solar PV system's energy output in Carryduff, United Kingdom (Lat/Long 54.5137, -5.8793) throughout the year, you should tilt your panels at an angle of 45° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Carryduff, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Carryduff, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 45° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
38° South in Summer	57° South in Autumn	67° South in Winter	46° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Carryduff, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Carryduff, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Carryduff, United Kingdom

Carryduff, located in County Down, Northern Ireland, is situated in an area characterized by gently rolling hills and shallow valleys. The topography around Carryduff is relatively mild, with elevations ranging from about 30 to 100 meters above sea level. The landscape is a mix of agricultural fields, pastures, and scattered woodlands, creating a patchwork of green spaces typical of the rural Irish countryside. To the north and west of Carryduff, the terrain gradually slopes upward towards the Belfast Hills, with Black Mountain and Divis Mountain being prominent features in the distance. These hills provide a scenic backdrop to the area but do not significantly impact the immediate surroundings of Carryduff. To the east and south, the land becomes slightly flatter as it approaches Strangford Lough, a large sea loch that influences the local geography. This area is dotted with small hills and drumlins, which are elongated hills formed by glacial activity during the last ice age.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations would have relatively flat or gently sloping terrain, good exposure to sunlight, and minimal shading from natural or man-made structures. The agricultural lands to the south and east of Carryduff present promising opportunities for solar PV development. These areas tend to have more open, unobstructed spaces that could accommodate large arrays of solar panels. The gentle slopes in this direction also provide favorable conditions for maximizing solar exposure throughout the day. Another potentially suitable area lies to the northeast of Carryduff, towards Dundonald and Newtownards. This region features expansive farmlands with minimal elevation changes, making it conducive to large-scale solar installations. However, it's important to note that while the topography in these areas may be suitable, other factors such as grid connectivity, land ownership, and local planning regulations would also need to be considered for any large-scale solar PV project. Additionally, the relatively high latitude of Northern Ireland means that solar irradiance levels are lower compared to more southerly regions, which could impact the overall efficiency and economic viability of large-scale solar installations in the area.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
