Catterick, England, located in North Yorkshire, United Kingdom, presents a mixed picture for solar energy generation throughout the year. Situated in the Northern Temperate Zone, this location experiences significant seasonal variations in solar output.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Catterick, England, with an average daily output of 4.99kWh per kW of installed solar capacity. Spring follows closely behind, generating 4.28kWh/day. However, the performance drops considerably during autumn, with only 1.94kWh/day, and plummets to a mere 0.86kWh/day in winter.

The stark contrast between summer and winter output highlights the challenges of year-round solar energy production in this location. The long, sunny days of summer provide ideal conditions for solar generation, while the short, often overcast days of winter significantly hamper production.

Optimal Panel Installation

To maximize year-round solar energy production in Catterick, England, fixed solar panels should be installed at a tilt angle of 46 degrees facing south. This angle is calculated to capture the most sunlight throughout the year, considering the location's latitude and the Earth's elliptical orbit.

Environmental and Weather Factors

Several factors can impede solar production in Catterick:

1. Cloud cover: The region is known for frequent overcast conditions, particularly in autumn and winter, which can significantly reduce solar output.
2. Rainfall: Catterick experiences considerable rainfall throughout the year, which can affect panel efficiency.
3. Snow: Winter snowfall can temporarily cover panels, reducing their effectiveness.

To mitigate these challenges, consider the following preventative measures:

• Install self-cleaning panels or implement regular cleaning schedules to combat the effects of rainfall and dust accumulation.
• Use panels with anti-reflective coatings to maximize light absorption on cloudy days.
• Consider installing panels at a steeper angle to encourage snow to slide off more easily.
• Implement a robust monitoring system to quickly identify and address any drops in performance.

While Catterick's location presents some challenges for year-round solar energy production, careful planning and appropriate technology can still make solar PV a viable option for supplementing energy needs, particularly during the more productive spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

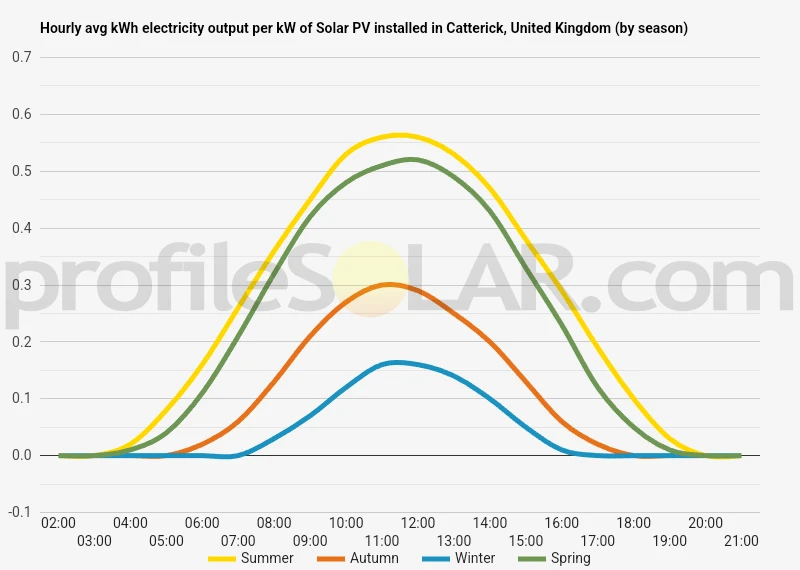

Solar output per kW of installed solar PV by season in Catterick

Seasonal solar PV output for Latitude: 54.3506, Longitude: -1.7098 (Catterick, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 46° South in Catterick, United Kingdom

To maximize your solar PV system's energy output in Catterick, United Kingdom (Lat/Long 54.3506, -1.7098) throughout the year, you should tilt your panels at an angle of 46° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Catterick, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Catterick, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 46° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
38° South in Summer	57° South in Autumn	67° South in Winter	46° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Catterick, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Catterick, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Catterick, United Kingdom

The area surrounding Catterick in North Yorkshire, United Kingdom, is characterized by a diverse and picturesque landscape. Situated in the Vale of Mowbray, Catterick lies on the eastern edge of the Yorkshire Dales, where the terrain transitions from the rugged hills of the Dales to the flatter lowlands of the Vale of York. To the west of Catterick, the land gradually rises into the foothills of the Yorkshire Dales. This area is marked by rolling hills, steep valleys, and exposed moorland. The terrain becomes increasingly dramatic as one moves further west, with limestone outcrops and scenic waterfalls dotting the landscape. Eastward from Catterick, the topography flattens out considerably as it merges into the Vale of York. This area is predominantly composed of gently undulating farmland, interspersed with small woodlands and meandering rivers. The River Swale flows to the north of Catterick, carving a shallow valley through the landscape.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, the flatter terrain to the east of Catterick presents the most promising opportunities. The gently sloping or level fields in the Vale of York offer several advantages for solar energy production: Firstly, these areas receive more consistent sunlight throughout the day due to the lack of significant hills or mountains that could cast shadows. The open landscape allows for maximum sun exposure from dawn to dusk. Secondly, the relatively flat terrain makes construction and maintenance of solar arrays more straightforward and cost-effective. It reduces the need for extensive earthworks and simplifies the installation process. Thirdly, many of these areas are already used for agriculture, which could potentially allow for dual-use of the land, combining solar energy production with farming activities. However, it's important to note that any large-scale solar PV project would need to carefully consider factors such as grid connectivity, local planning regulations, and potential impact on the rural landscape. The areas immediately surrounding Catterick Garrison, a large military base, may also have restrictions on development. While the flatter eastern areas offer the most potential, some of the gentler slopes in the western foothills could also be suitable for solar PV, particularly south-facing inclines that receive good sun exposure. These locations would require more careful planning and design to maximize efficiency and minimize visual impact on the scenic Dales landscape.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
