Solar PV Analysis of Chertsey, United Kingdom
The location at Chertsey, England, United Kingdom is somewhat ideal for generating energy via solar PV year-round. This area experiences varying amounts of sunlight throughout the different seasons, affecting how much electricity can be generated from solar power.
During the summer months, each kilowatt of installed solar could generate about 5.13 kilowatt-hours per day due to longer daylight hours and higher sun intensity. In contrast, during autumn this production decreases to around 2.31 kilowatt-hours per day as daylight hours lessen and sun intensity drops.
Winter sees the lowest potential for solar energy generation with only about 1.07 kilowatt-hours produced per day due to shorter days and often overcast skies. However, in spring the output increases again to approximately 4.36 kilowatt-hours per day as daylight hours increase.
To make the most out of these seasonal variations in sunlight availability, a fixed panel installation at this location would ideally be tilted at an angle of 44 degrees facing South so that it catches maximum sunlight year-round.
However, there are certain local factors that may affect solar production in Chertsey such as frequent cloudy or rainy weather which can block direct sunlight and reduce efficiency of panels.
Other environmental factors might include dust or debris build-up on panels which can also hinder their performance by blocking light absorption; trees or buildings casting shadows on panels; bird droppings etc., all impacting overall production negatively.
To mitigate these issues:
1) Regular cleaning and maintenance should be scheduled for your panels to remove any dirt or debris.
2) Consideration should be given while installing panels regarding nearby trees/buildings so they do not cast shadows on your system.
3) Installation of bird deterrents like spikes/nets might help keep birds away from your system reducing chances of droppings affecting panel efficiency.
Overall though these issues are manageable with regular upkeep & good installation practices ensuring better energy production even if the location isn’t perfect for solar.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in United Kingdom by location

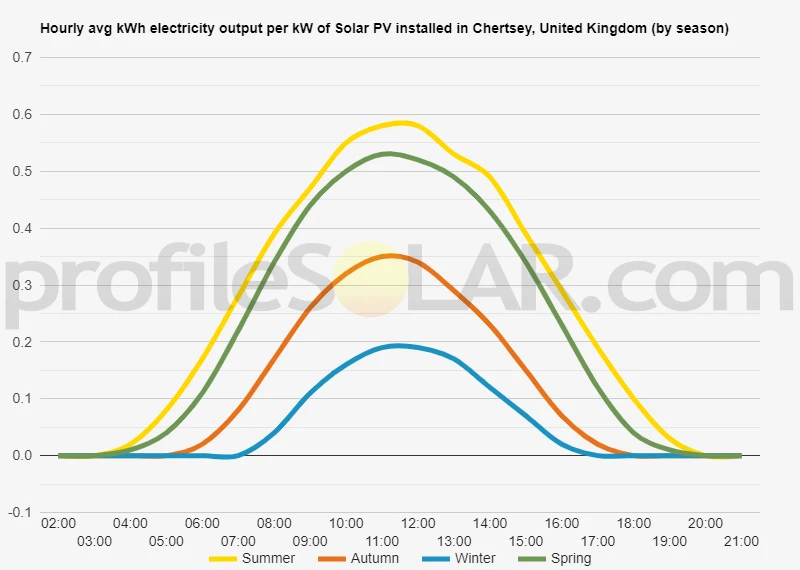

Solar output per kW of installed solar PV by season in Chertsey
Seasonal solar PV output for Latitude: 51.3917, Longitude: -0.5099 (Chertsey, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 44° South in Chertsey, United Kingdom
To maximize your solar PV system's energy output in Chertsey, United Kingdom (Lat/Long 51.3917, -0.5099) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Chertsey, United Kingdom
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chertsey, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 35° South in Summer | 55° South in Autumn | 65° South in Winter | 43° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Chertsey, United Kingdom
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chertsey, United Kingdom.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Chertsey, United Kingdom
Chertsey is located in the county of Surrey, England. The topography of Chertsey and its surrounding areas is generally flat to gently rolling hills. It's part of the Thames Basin, so it has fertile soil with the River Thames running nearby.
The area has a mix of urban development with some open fields and farmlands, as well as woodland areas. For large scale solar PV installations, open fields or farmland would be most suited due to their exposure to sunlight without obstruction from buildings or trees.
However, other factors must also be considered such as land ownership and use regulations, proximity to power grids for energy transmission and potential environmental impacts.
It may also be possible to install solar panels on large commercial or industrial roofs in the area which can provide a significant amount of power without needing additional space on the ground.
In terms of weather conditions for solar energy production, while UK is not known for its sunny weather compared to other countries like Spain or Australia; however modern solar panels can still generate electricity even under cloudy skies albeit at lower efficiency levels.
United Kingdom solar PV Stats as a country
United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United Kingdom?
Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.
Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
