Cradley Heath, England, located in the United Kingdom, offers moderate potential for solar PV energy generation throughout the year. This location in the Northern Temperate Zone experiences significant seasonal variations in solar energy production, with the highest output during summer months and considerably reduced generation in winter.

Seasonal Solar Production

Solar panels at this location produce varying amounts of electricity depending on the season. During summer, each kilowatt of installed capacity generates approximately 5.21kWh per day, making this the most productive season. Spring follows with a respectable 4.33kWh daily output per installed kilowatt.

In contrast, autumn sees a significant drop to 2.08kWh per day, while winter production falls dramatically to just 0.96kWh daily per kilowatt installed. This stark seasonal difference means that a solar installation in Cradley Heath will produce more than five times as much energy in summer compared to winter.

Optimal Panel Installation

For fixed solar panel installations in Cradley Heath, England, the ideal tilt angle to maximize year-round energy production is 44 degrees facing South. This specific angle has been calculated to optimize annual solar collection based on the location's latitude and seasonal sun positions.

Environmental and Weather Considerations

Several factors may impact solar production at this West Midlands location. The UK's characteristically cloudy climate is perhaps the most significant limitation, with Cradley Heath experiencing frequent overcast days that reduce direct sunlight. The region also receives moderate rainfall throughout the year, which can temporarily decrease panel efficiency.

Additionally, the urban/suburban nature of Cradley Heath means potential shading from nearby buildings, trees, or structures could impact solar performance at specific sites. During winter months, occasional snow cover might temporarily reduce output, though this is typically short-lived.

Preventative Measures

To maximize solar production despite these challenges, several preventative measures can be implemented:

• Install panels at the precise 44-degree South-facing angle to optimize year-round collection
• Consider micro-inverters or power optimizers to minimize the impact of partial shading
• Ensure regular cleaning to remove dirt, pollen, and bird droppings that can reduce efficiency
• Conduct a thorough shade analysis before installation to identify optimal positioning
• Use high-efficiency panels designed to perform better in diffuse light conditions common in the UK

While Cradley Heath may not offer ideal solar conditions compared to sunnier regions, a properly designed system can still provide significant energy generation, particularly from late spring through early autumn when production peaks.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

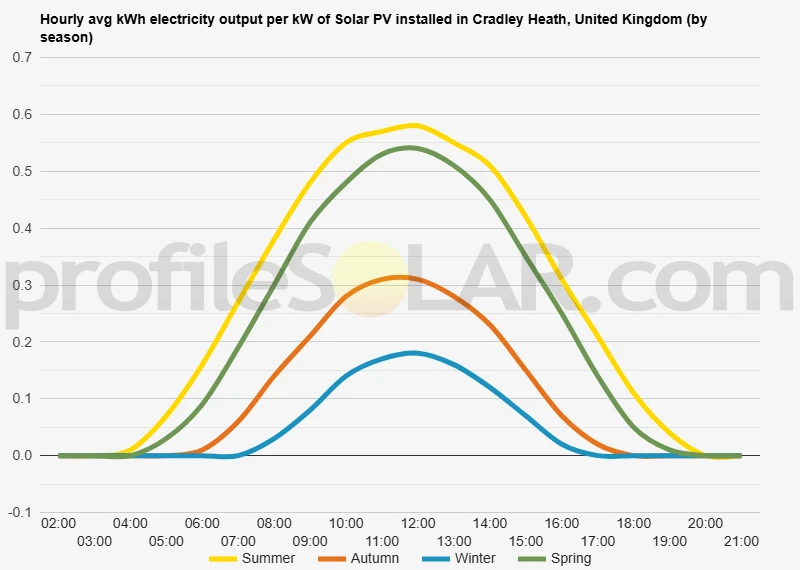

Solar output per kW of installed solar PV by season in Cradley Heath

Seasonal solar PV output for Latitude: 52.4844, Longitude: -2.0609 (Cradley Heath, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Cradley Heath, United Kingdom

To maximize your solar PV system's energy output in Cradley Heath, United Kingdom (Lat/Long 52.4844, -2.0609) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cradley Heath, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cradley Heath, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
36° South in Summer	55° South in Autumn	66° South in Winter	44° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cradley Heath, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cradley Heath, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cradley Heath, United Kingdom

Topography of Cradley Heath

Cradley Heath is situated in the Black Country region of the West Midlands in the United Kingdom. The area's topography is characterized by gently undulating terrain, with modest hills and shallow valleys forming a landscape that bears the historical imprint of industrial development. The elevation generally ranges between 140-180 meters above sea level, with gradual slopes rather than steep inclines dominating the local relief. The area lies within the western edge of the Birmingham Plateau, a raised landmass that forms part of the watershed between rivers flowing east to the Trent and west to the Severn. This plateau feature has been significantly modified by human activity over centuries of industrial use, particularly coal mining and metal working which were historically prevalent in the region. Small streams and minor waterways cut through the landscape, including the River Stour which flows near the town. These waterways have historically played an important role in the industrial development of the area, though many have been modified, culverted, or redirected over time.

Surrounding Landscape Features

The broader landscape around Cradley Heath includes the Rowley Hills to the north, which rise to over 200 meters and provide some of the more pronounced topographic features in the vicinity. To the west, the land gradually descends toward the Stour Valley, while eastward the urban sprawl of the West Midlands conurbation dominates, with its mixture of residential, commercial, and post-industrial land use. The soil composition reflects the area's geological history, with clay-rich soils predominant, overlying coal measures and other sedimentary rocks that have been extensively mined in previous centuries. This mining heritage has left its mark on the landscape, with subtle subsidence features and reclaimed former industrial sites scattered throughout the area.

Solar PV Suitability in the Region

When considering areas near Cradley Heath most suited for large-scale solar PV installations, several topographic factors come into play. The gently sloping terrain south of Cradley Heath offers favorable conditions, as these areas generally have good southerly aspects which maximize solar exposure throughout the day. Specifically, the more elevated areas around Halesowen and toward Romsley present opportunities where the land rises sufficiently to reduce shadowing effects. The reclaimed former industrial sites in the region also present potential opportunities for solar development. These brownfield locations often have limited alternative uses and can provide substantial flat areas ideal for solar array installation. Several such sites exist within a 5-kilometer radius of Cradley Heath, particularly toward Oldbury and parts of Dudley. Areas to avoid would include the more densely wooded valleys and north-facing slopes, particularly those in the shadow of the Rowley Hills. These locations experience reduced direct sunlight due to topographic shadowing. Similarly, the more densely developed urban corridors toward Birmingham would present challenges due to space limitations and shadowing from buildings.

Topographic Considerations for Installation

The moderate relief of the landscape means that most potential solar sites would require minimal grading work, reducing installation costs compared to more rugged terrain. The clay-rich soils may present some seasonal challenges with stability during very wet periods, necessitating appropriate foundation design for ground-mounted systems. Drainage patterns should be carefully considered when planning installations, as the numerous small streams and surface water flows could affect site accessibility and long-term stability. Historical mining activity also necessitates thorough ground surveys to identify any subsidence risks or contamination issues before development. The most promising larger-scale sites appear to be on the southern and southwestern periphery of the urban area, where agricultural land with appropriate slope aspects exists alongside good access to the electrical grid infrastructure that remains from the region's industrial heyday. These locations combine favorable topography with practical accessibility for construction and maintenance.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
