Culcheth, England, United Kingdom presents a moderately challenging location for year-round solar PV energy generation, with significant seasonal variation typical of its Northern Temperate Zone position.

Seasonal Solar Performance

The solar energy output at this location varies dramatically throughout the year. Summer provides the strongest performance at 5.26 kWh per day per kW of installed capacity, making it an excellent time for solar generation. Spring also offers good production levels at 4.30 kWh per day per kW, creating a substantial energy generation period from roughly March through September. However, the location faces considerable challenges during colder months. Autumn production drops significantly to 1.90 kWh per day per kW, while winter performance becomes quite poor at just 0.85 kWh per day per kW. This represents more than a six-fold difference between peak summer and winter production. For maximum year-round energy capture, solar panels should be installed at a fixed tilt angle of 45 degrees facing south. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance potential.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Culcheth area can significantly impact solar energy production:

• Frequent cloud cover and precipitation: The UK's maritime climate brings regular overcast skies, rain, and drizzle that can substantially reduce solar irradiance
• High humidity and fog: Common in this region, these conditions scatter and absorb sunlight before it reaches solar panels
• Snow accumulation: Winter snow can completely block panels, eliminating energy production until cleared
• Atmospheric pollution: Industrial and urban emissions can create haze that reduces solar intensity

Preventative Installation Measures

Several strategies can help maximize solar production despite these challenging conditions: Panel positioning should prioritize easy snow removal access while maintaining the optimal 45-degree south-facing angle. Installing panels with adequate spacing prevents snow from one panel shadowing adjacent ones when it slides off. Choosing high-quality panels with anti-reflective coatings and good low-light performance helps capture more energy during overcast conditions. Micro-inverters or power optimizers can minimize the impact when individual panels are partially shaded by snow or debris. Regular maintenance becomes crucial in this climate. Installing accessible mounting systems allows for easier cleaning of accumulated dirt, leaves, and snow. Automated monitoring systems can quickly identify performance drops that indicate cleaning or maintenance needs. Proper drainage around the installation prevents water pooling that could create humidity problems or ice formation. Additionally, selecting corrosion-resistant materials for all mounting hardware helps withstand the high moisture environment typical of this region.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

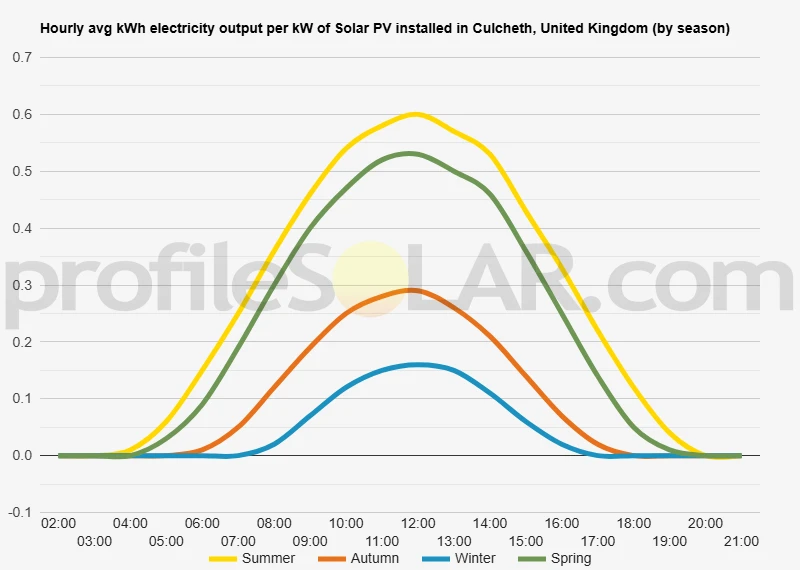

Solar output per kW of installed solar PV by season in Culcheth

Seasonal solar PV output for Latitude: 53.4431, Longitude: -2.5109 (Culcheth, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 45° South in Culcheth, United Kingdom

To maximize your solar PV system's energy output in Culcheth, United Kingdom (Lat/Long 53.4431, -2.5109) throughout the year, you should tilt your panels at an angle of 45° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Culcheth, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Culcheth, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 45° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
37° South in Summer	56° South in Autumn	66° South in Winter	45° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Culcheth, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Culcheth, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Culcheth, United Kingdom

Topography Around Culcheth

Culcheth sits within the relatively flat agricultural landscape of Warrington in Cheshire, positioned on gently undulating terrain that characterizes much of the Greater Manchester and Cheshire Plain region. The area lies at a modest elevation of approximately 30 to 40 meters above sea level, with the surrounding countryside featuring gentle slopes and shallow valleys carved by small watercourses over millennia.

The immediate landscape around Culcheth consists primarily of open farmland interspersed with small woodlands and hedgerows. The terrain slopes very gradually toward the northwest, following the natural drainage patterns that eventually feed into the River Mersey system. To the east and southeast, the land rises slightly toward the foothills of the Pennines, though these elevated areas remain relatively modest in height and present only gentle gradients.

The geological foundation beneath Culcheth comprises predominantly sedimentary rocks covered by glacial deposits left behind during the last ice age. This has created fertile, well-drained soils that support the area's agricultural character. The relatively stable ground conditions and absence of significant geological features such as steep slopes, deep valleys, or rocky outcrops make the region particularly suitable for development projects.

Optimal Areas for Large-Scale Solar Development

The agricultural fields stretching south and southwest of Culcheth present the most promising opportunities for large-scale solar photovoltaic installations. These areas benefit from predominantly flat to gently sloping terrain with excellent southern exposure, minimizing the risk of shading from topographical features. The open nature of this farmland provides extensive unobstructed areas that could accommodate substantial solar arrays without significant grading or earthwork requirements.

The land immediately west of Culcheth, toward Croft and Winwick, offers particularly favorable conditions due to its combination of flat topography and minimal existing development. These areas maintain good accessibility via existing rural roads while remaining sufficiently distant from residential areas to minimize visual impact concerns. The gentle southward-facing slopes in this direction would naturally optimize panel orientation for maximum solar exposure throughout the day.

Areas to the northwest, while topographically suitable, may present more challenges due to proximity to existing infrastructure and more fragmented land ownership patterns. The terrain east of Culcheth, though still relatively flat, begins to show more variation in elevation and increased woodland coverage, which could create shading issues and require more complex site preparation.

The absence of significant hills, ridges, or deep valleys throughout the region means that large-scale solar installations would face minimal topographical constraints. The primary considerations for site selection would likely center on land availability, agricultural land classification, and proximity to electrical grid connection points rather than challenging terrain features.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
