Ellesmere Port, England, located in the United Kingdom, presents a mixed picture for solar PV energy generation. Situated in the Northern Temperate Zone, this location experiences significant seasonal variations in solar output, which impacts the overall efficiency of solar installations throughout the year.

Seasonal Solar Performance

The solar energy production at Ellesmere Port varies dramatically across the seasons. Summer stands out as the most productive period, with an impressive daily output of 5.25kWh per kW of installed solar capacity. Spring follows closely behind, generating 4.32kWh/day. However, the colder months see a sharp decline in production, with autumn yielding 1.88kWh/day and winter dropping to a mere 0.86kWh/day.

These figures highlight that the location is most ideal for solar energy generation from late spring through early autumn. During these months, longer daylight hours and generally clearer skies contribute to higher energy yields. Conversely, the winter months present significant challenges due to shorter days and frequently overcast conditions.

Optimal Panel Installation

To maximize year-round solar production at this location, fixed panels should be installed at a 45-degree angle facing south. This tilt angle is calculated to optimize the capture of available sunlight throughout the year, balancing the low winter sun with the higher summer sun path.

Environmental and Weather Factors

Several factors can impede solar production in Ellesmere Port:

1. Cloud cover: The UK is known for its frequently overcast skies, particularly in autumn and winter, which can significantly reduce solar efficiency.
2. Rainfall: The area experiences considerable rainfall, which can affect panel performance and require more frequent cleaning.
3. Short winter days: The location's northern latitude results in very short days during winter, severely limiting solar generation potential.

Preventative Measures

To mitigate these challenges, several preventative measures can be implemented:

• Use high-efficiency panels designed to perform well in low-light conditions.
• Install a robust cleaning system or schedule regular manual cleaning to combat the effects of rainfall and potential dirt accumulation.
• Consider incorporating energy storage solutions to balance out the seasonal variations in production.
• Implement smart inverter technology to optimize power output even during periods of partial shading or low light.

While Ellesmere Port may not be ideal for year-round solar production, with proper planning and technology, it can still be a viable location for solar PV installations, particularly during the more favorable months of the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

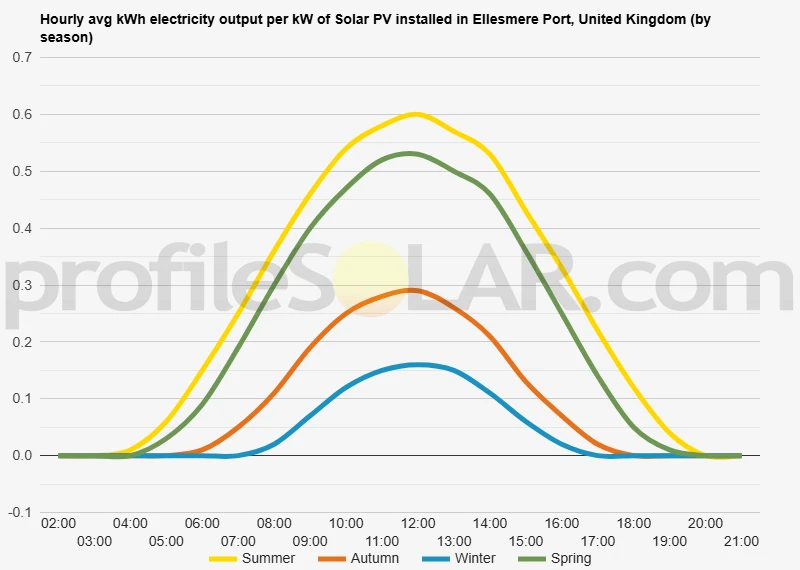

Solar output per kW of installed solar PV by season in Ellesmere Port

Seasonal solar PV output for Latitude: 53.2797, Longitude: -2.9128 (Ellesmere Port, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 45° South in Ellesmere Port, United Kingdom

To maximize your solar PV system's energy output in Ellesmere Port, United Kingdom (Lat/Long 53.2797, -2.9128) throughout the year, you should tilt your panels at an angle of 45° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ellesmere Port, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ellesmere Port, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 45° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
37° South in Summer	56° South in Autumn	66° South in Winter	45° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ellesmere Port, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ellesmere Port, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ellesmere Port, United Kingdom

The topography around Ellesmere Port, United Kingdom, is characterized by relatively flat, low-lying terrain. This area, located in the Cheshire Plain, is predominantly composed of gently rolling countryside with minimal elevation changes. The landscape is largely shaped by the nearby Mersey Estuary, which influences the local geography and creates a mix of urban, industrial, and rural environments. To the west of Ellesmere Port, the land gradually slopes towards the River Mersey, forming mudflats and salt marshes along the shoreline. These areas are typically at or near sea level, making them susceptible to tidal influences. Moving inland, the terrain slowly rises, but remains generally flat, with only subtle undulations across the landscape. The eastern side of Ellesmere Port sees a gradual increase in elevation as it transitions into the Cheshire countryside. However, this rise is modest, with most areas remaining below 50 meters above sea level. The surrounding region features a patchwork of agricultural fields, interspersed with small woodlands and hedgerows, which add texture to the otherwise uniform topography.

Areas Suitable for Large-Scale Solar PV

When considering locations for large-scale solar PV installations near Ellesmere Port, several factors come into play. The relatively flat terrain in the surrounding area offers potential advantages for solar development, as it reduces the need for extensive land preparation and allows for efficient panel placement. The agricultural lands to the east and southeast of Ellesmere Port present promising opportunities for solar PV projects. These areas benefit from open spaces with minimal shading from natural or man-made structures. The gently sloping fields could provide optimal angles for solar panel placement, maximizing exposure to sunlight throughout the day. Another potentially suitable area lies to the south of Ellesmere Port, where expansive farmlands offer ample space for large-scale installations. These locations are sufficiently distant from densely populated areas, reducing potential conflicts with residential development while still being close enough to existing infrastructure for grid connection. It's important to note that while the topography is favorable, other factors such as local planning regulations, environmental considerations, and grid capacity would need to be carefully evaluated before proceeding with any large-scale solar PV development in the region.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
