Ferndale, Wales, United Kingdom is a moderately suitable location for solar PV energy generation, though it faces the typical challenges of the Northern Temperate Zone climate. The location experiences significant seasonal variation in solar output, with summer providing the strongest generation potential and winter showing considerably reduced performance.

Seasonal Solar Performance

Summer represents the peak solar generation period at Ferndale, Wales, delivering 5.36kWh per day per kW of installed capacity. This strong summer performance makes it the ideal time for maximizing solar energy production. Spring follows as the second-best season with 4.46kWh per day per kW, offering excellent generation potential as daylight hours increase and weather conditions improve. Autumn shows a notable decline to 2.24kWh per day per kW as the location transitions toward winter conditions. Winter presents the most challenging period for solar generation, producing only 0.99kWh per day per kW of installed capacity, representing the lowest output of the year. For optimal year-round performance at this location, solar panels should be installed at a fixed tilt angle of 44 degrees facing south. This angle has been calculated to maximize total annual solar output by accounting for the sun's changing position throughout the seasons and weighting for solar irradiance potential.

Environmental and Weather Challenges

Several local factors at Ferndale can significantly impact solar PV performance and require consideration during installation:

• Frequent cloud cover and overcast conditions typical of the UK climate reduce direct solar irradiance
• High humidity and regular precipitation can lead to dirt, dust, and debris accumulation on panel surfaces
• Strong winds common in this coastal Welsh location can affect panel mounting systems
• Salt air from nearby coastal areas may cause corrosion of mounting hardware and electrical components
• Moss and lichen growth on panels due to the damp climate

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be implemented. Panel mounting systems should be engineered for high wind loads and constructed from marine-grade materials resistant to salt corrosion. Stainless steel or specially coated aluminum components will provide better longevity in the coastal environment. Regular cleaning schedules become essential due to the frequent precipitation and humidity that promote organic growth on panel surfaces. Installing panels at the recommended 44-degree tilt helps with natural rainwater cleaning, but manual cleaning may still be required several times per year. Proper drainage around the installation site prevents water pooling that could lead to foundation issues or increased humidity around electrical components. Additionally, using high-quality weatherproof electrical enclosures and connections rated for marine environments will help prevent moisture-related failures. Despite these challenges, Ferndale's solar potential remains viable, particularly during the spring and summer months when generation peaks. The key to success lies in proper installation techniques that account for the local climate conditions and implementing appropriate maintenance schedules to keep the system operating at optimal efficiency throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

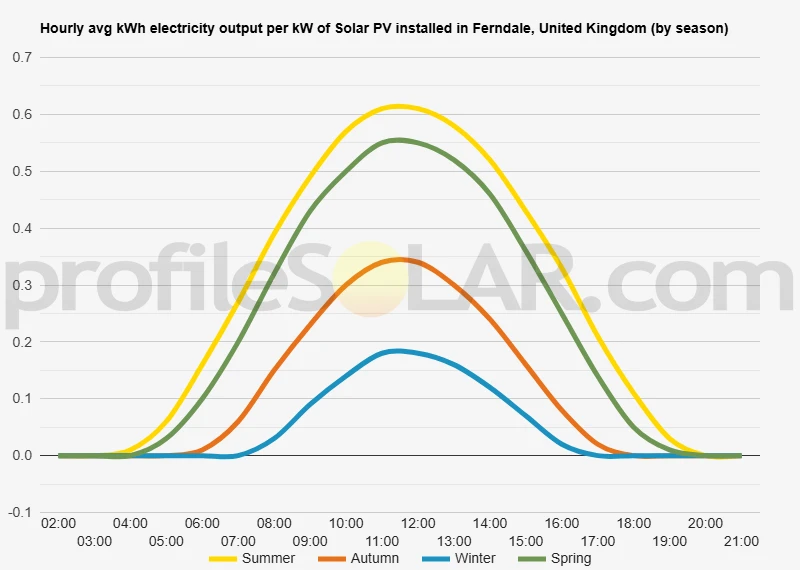

Solar output per kW of installed solar PV by season in Ferndale

Seasonal solar PV output for Latitude: 51.6611, Longitude: -3.4526 (Ferndale, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Ferndale, United Kingdom

To maximize your solar PV system's energy output in Ferndale, United Kingdom (Lat/Long 51.6611, -3.4526) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ferndale, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ferndale, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	55° South in Autumn	65° South in Winter	44° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ferndale, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ferndale, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ferndale, United Kingdom

Topographical Features of Ferndale

Ferndale sits in the heart of the Rhondda Valley in South Wales, positioned within a distinctive landscape shaped by centuries of coal mining and natural geological processes. The town occupies the valley floor at approximately 200 metres above sea level, surrounded by steep-sided hills that rise dramatically on all sides. These hills form part of the South Wales Valleys system, characterizing the region with their narrow valley bottoms and pronounced ridgelines. The immediate terrain around Ferndale consists of former industrial land mixed with residential areas, much of which has been reclaimed from old mining operations. The valley sides are covered with a mixture of grassland, scrubland, and patches of woodland, while the valley floor contains the main urban development. The underlying geology comprises primarily of coal measures and sandstone formations typical of the South Wales coalfield region. Water features include small streams that flow down from the surrounding hills, eventually joining the River Rhondda which runs through the valley system. The climate is influenced by the topography, with the surrounding hills creating a somewhat sheltered microclimate within the valley, though this can also lead to temperature inversions and periods of reduced air circulation.

Solar Development Opportunities in the Region

The surrounding hills and ridgelines present the most promising locations for large-scale solar photovoltaic installations. The elevated positions on the valley sides and ridge tops offer several advantages over the valley floor locations. These higher elevations typically experience less atmospheric obstruction and reduced shading from surrounding terrain features. South-facing slopes on the hills surrounding Ferndale would be particularly well-suited for solar development. These locations benefit from optimal solar orientation while avoiding the shadowing effects that can occur in the narrow valley bottom during certain times of the year. The gradient of many slopes in the area provides natural angling that can be advantageous for solar panel positioning. Former industrial sites and reclaimed mining land on the hillsides offer additional opportunities for solar development. These areas often have existing infrastructure access and may face fewer planning restrictions compared to pristine agricultural or residential land. The legacy of mining activity has created numerous flat or gently sloping terraced areas that could accommodate solar installations without significant ground preparation. The ridge tops and plateau areas to the north and south of Ferndale present the most expansive opportunities for large-scale solar farms. These elevated locations typically have more consistent exposure and fewer obstructions from trees or buildings. However, accessibility and grid connection requirements would need careful consideration for these more remote locations. Agricultural land on the gentler slopes and valley edges could also support solar development, particularly through agrivoltaic systems that allow continued farming beneath elevated solar panels. The pastoral landscape surrounding the more built-up valley floor includes several areas with suitable topography for ground-mounted installations.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
