Grantham, England, United Kingdom is a moderately suitable location for solar PV energy generation, though it faces the typical challenges of northern European climates. Located in the Northern Temperate Zone, this area experiences significant seasonal variation in solar energy production that reflects the changing daylight patterns and weather conditions throughout the year.

Seasonal Solar Performance

The solar energy output varies dramatically across the seasons in Grantham. Summer provides the highest production at 5.09 kWh per day per kW of installed capacity, making it the ideal time for solar generation. Spring follows as the second-best season with 4.21 kWh per day per kW, offering excellent production as daylight hours increase and weather improves. Autumn sees a notable decline to 2.18 kWh per day per kW as conditions become less favorable. Winter presents the greatest challenge, with output dropping to just 1.03 kWh per day per kW, representing roughly one-fifth of summer production levels. For optimal year-round performance, solar panels should be installed at a fixed angle of 45 degrees facing south. This positioning maximizes total annual energy production by accounting for the sun's varying position throughout the year and the daily solar irradiance patterns specific to this latitude.

Local Factors Affecting Solar Production

Several environmental and weather factors in Grantham can significantly impact solar panel performance:

• Frequent cloud cover and overcast skies, particularly during autumn and winter months
• Regular rainfall that can reduce solar irradiance
• Potential for snow accumulation during winter months
• High humidity levels that may affect panel efficiency
• Dust and debris accumulation from agricultural activities in the surrounding area

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies can be employed:

• Install panels with adequate spacing to prevent snow buildup and allow for natural cleaning by rain
• Use anti-reflective coatings and high-quality glass to maintain efficiency in low-light conditions
• Implement regular cleaning schedules to remove dust, bird droppings, and agricultural debris
• Consider micro-inverters or power optimizers to minimize the impact of partial shading from clouds
• Ensure proper drainage around the installation to prevent water pooling that could create humidity issues

While Grantham's location presents some challenges for solar energy generation, particularly during winter months, proper installation techniques and maintenance can help optimize performance throughout the year. The strong summer and spring production periods help offset the lower winter output, making solar PV a viable renewable energy option for this location.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

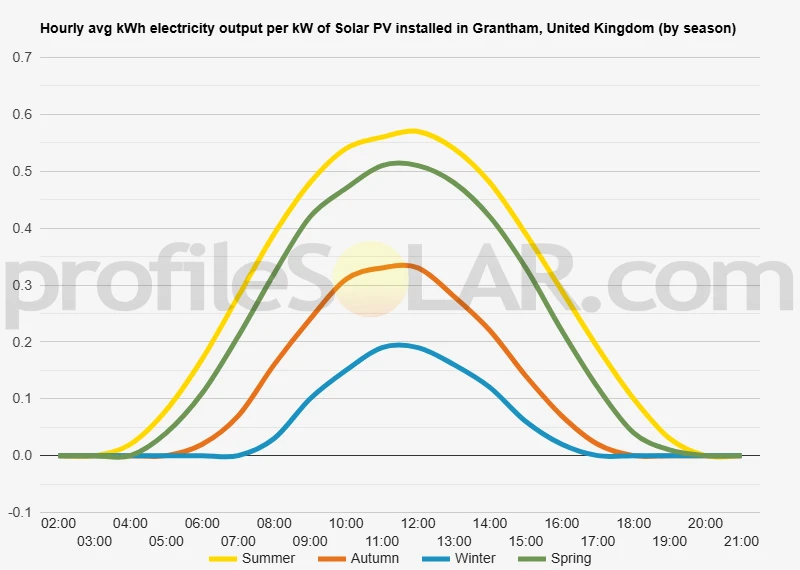

Solar output per kW of installed solar PV by season in Grantham

Seasonal solar PV output for Latitude: 52.9095, Longitude: -0.6456 (Grantham, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 45° South in Grantham, United Kingdom

To maximize your solar PV system's energy output in Grantham, United Kingdom (Lat/Long 52.9095, -0.6456) throughout the year, you should tilt your panels at an angle of 45° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Grantham, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Grantham, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 45° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
36° South in Summer	56° South in Autumn	66° South in Winter	45° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Grantham, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Grantham, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Grantham, United Kingdom

Topographical Features Around Grantham

Grantham sits in the heart of Lincolnshire, positioned within a predominantly flat to gently rolling landscape that characterises much of the East Midlands. The town lies at approximately 75 metres above sea level, nestled in the valley of the River Witham, which flows northward through the settlement before continuing toward Lincoln and eventually reaching The Wash on the North Sea coast. The surrounding terrain exhibits the classic characteristics of the Lincolnshire countryside, with extensive areas of fertile agricultural land stretching in all directions. To the west, the landscape gradually rises toward the Lincoln Edge, a prominent limestone escarpment that forms part of the Jurassic ridge running through central England. This escarpment creates a notable change in elevation, rising to around 200 metres above sea level and providing a distinctive backdrop to the western horizon. Eastward from Grantham, the land remains relatively level, forming part of the broader Lincolnshire fenland system. This area consists of reclaimed marshland that has been drained over centuries to create some of England's most productive agricultural territory. The gentle gradients and open nature of this landscape make it particularly suitable for large-scale development projects.

Terrain Characteristics and Land Use

The immediate vicinity of Grantham features a patchwork of arable fields, with field boundaries typically marked by hedgerows and occasional copses of deciduous woodland. The underlying geology consists primarily of mudstone and limestone formations, providing stable foundations for construction while maintaining good drainage characteristics. South of Grantham, the terrain begins to show slightly more variation, with gentle undulations becoming more pronounced as the land approaches the borders with Leicestershire and Rutland. However, these changes in elevation remain modest, rarely exceeding gradients that would present significant challenges for development or infrastructure installation. The A1 trunk road runs north-south through the area, creating a corridor of development that has influenced local land use patterns. Railway lines also traverse the region, with Grantham serving as an important junction on the East Coast Main Line, connecting London to Scotland.

Optimal Areas for Large-Scale Solar Development

The extensive agricultural plains to the east and southeast of Grantham present the most favourable conditions for large-scale solar photovoltaic installations. These areas benefit from minimal topographical constraints, with vast expanses of relatively level ground that would require little site preparation or grading work. The open nature of this landscape also means fewer issues with shading from trees, buildings, or natural features. The fenland areas extending toward Sleaford and beyond offer particularly attractive sites, where large contiguous plots of land could accommodate substantial solar arrays. The flat terrain in these locations would facilitate efficient panel orientation and maintenance access, while the existing agricultural road network could support the logistics requirements of major installations. Areas to the southwest of Grantham, toward Melton Mowbray, also present good opportunities, though the slightly more undulating terrain might require more careful site selection. The key advantage of this region lies in its proximity to major electrical infrastructure, including high-voltage transmission lines that could facilitate grid connection for large-scale projects. The western approaches toward the Lincoln Edge would be less suitable for major solar developments due to the changing gradients and the presence of more significant woodland cover. Similarly, areas immediately adjacent to Grantham itself may face constraints from existing development and infrastructure, though smaller installations might still be viable on appropriate sites.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
