Helensburgh, United Kingdom, located in the Northern Temperate Zone at coordinates 56.0037, -4.722, presents a challenging location for year-round solar photovoltaic energy generation. The seasonal variation in solar output is quite dramatic, making it far from ideal for consistent solar power production throughout the year.

Seasonal Solar Performance

The location shows extreme seasonal differences in solar energy production. Summer delivers the strongest performance at 4.81kWh per day per kW of installed solar capacity, while spring also provides reasonable output at 3.88kWh per day per kW. However, the colder months present significant challenges, with autumn dropping to just 1.44kWh per day per kW and winter plummeting to a mere 0.67kWh per day per kW. This means that summer produces more than seven times the solar energy of winter, creating substantial seasonal energy gaps that would require alternative power sources or extensive battery storage systems to maintain consistent electricity supply year-round.

Optimal Installation Configuration

For fixed panel installations at this Helensburgh location, the ideal angle to tilt solar panels is 47 degrees facing south to maximise total year-round production. This angle is calculated by analyzing daily solar elevation angles at the latitude, determining optimal panel tilt angles, and weighting these by daily photovoltaic potential using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Challenges

Several significant local factors could impede solar production at this Scottish coastal location:

• High rainfall and cloud cover: Scotland's west coast experiences frequent overcast conditions and substantial precipitation, which can significantly reduce solar panel efficiency
• Salt air corrosion: Being near the coast, salt-laden air can corrode panel frames, electrical connections, and mounting hardware over time
• Strong winds: Coastal locations often experience high winds that can damage panels or mounting systems if not properly secured
• Snow and ice accumulation: Winter weather can block panels with snow or ice, further reducing already limited cold-weather output

Preventative Installation Measures

To maximise energy production despite these challenges, several preventative measures should be implemented:

• Marine-grade materials: Use corrosion-resistant aluminum frames and stainless steel mounting hardware specifically designed for coastal environments
• Enhanced weatherproofing: Install panels with superior sealing around electrical connections and use marine-grade cabling
• Robust mounting systems: Employ heavy-duty mounting structures engineered to withstand high wind loads typical of coastal areas
• Steeper tilt angles: The recommended 47-degree tilt helps snow and debris slide off more easily while optimising sun exposure
• Regular maintenance scheduling: Plan for more frequent cleaning and inspection due to salt buildup and weather exposure

Overall Assessment

While Helensburgh can generate reasonable solar energy during spring and summer months, the location is not ideal for year-round solar PV generation. The combination of extreme seasonal variation, challenging weather conditions, and coastal environmental factors means that solar installations here require careful planning, robust equipment, and realistic expectations about winter energy production. Property owners should consider solar as part of a mixed energy strategy rather than a standalone solution.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

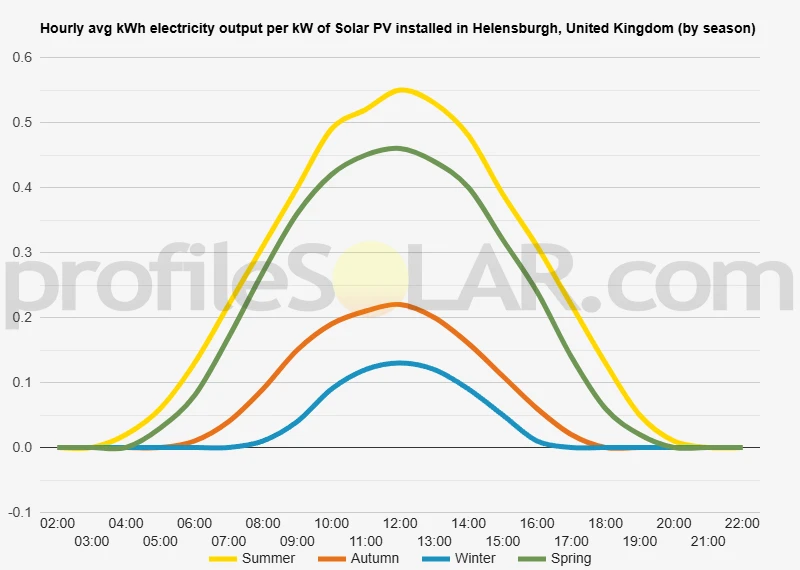

Solar output per kW of installed solar PV by season in Helensburgh

Seasonal solar PV output for Latitude: 56.0037, Longitude: -4.722 (Helensburgh, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 47° South in Helensburgh, United Kingdom

To maximize your solar PV system's energy output in Helensburgh, United Kingdom (Lat/Long 56.0037, -4.722) throughout the year, you should tilt your panels at an angle of 47° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Helensburgh, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Helensburgh, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 47° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
40° South in Summer	58° South in Autumn	69° South in Winter	48° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Helensburgh, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Helensburgh, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Helensburgh, United Kingdom

Topographical Features Around Helensburgh

Helensburgh sits on the northern shore of the Firth of Clyde in Argyll and Bute, Scotland, positioned where the Highland landscape begins to rise dramatically from the coastal plain. The town itself occupies a relatively flat coastal terrace that slopes gently toward the water, but the surrounding terrain becomes increasingly mountainous as one moves inland toward the north and east. The immediate area is characterized by rolling hills and steep-sided valleys, with the landscape rising sharply from sea level to significant elevations within just a few kilometers of the coast. The Loch Lomond and Trossachs National Park boundary lies close to the town, indicating the wild and rugged nature of the surrounding Highland topography. Glen Fruin cuts through the landscape to the northeast, while the hills of the Rosneath Peninsula extend to the southwest across the Gareloch. To the north and northwest, the terrain becomes increasingly challenging, with steep gradients and complex valley systems carved by ancient glacial activity. The area features a mixture of moorland, forestry plantations, and rough grazing land, much of it at considerable elevation above sea level. Rocky outcrops and areas of poor drainage are common throughout the higher elevations.

Optimal Areas for Large-Scale Solar Development

The most promising locations for substantial solar photovoltaic installations lie primarily to the south and southeast of Helensburgh, where the topography remains relatively gentle before rising into the more challenging Highland terrain. The coastal plain and lower hillsides in these directions offer the best combination of suitable gradients, accessibility, and land availability for large-scale renewable energy projects. Areas around the A82 corridor, which runs southeast toward Alexandria and Dumbarton, present particularly favorable conditions. This zone benefits from gentler topography, existing infrastructure connections, and proximity to the electrical grid. The land here consists mainly of agricultural fields and improved grassland on relatively stable, well-drained soils that would support the construction and maintenance requirements of extensive solar arrays. The western slopes facing the Rosneath Peninsula also show potential, particularly on south-facing hillsides with moderate gradients. These areas receive good exposure while remaining accessible for construction and ongoing maintenance activities. However, developers would need to consider the visual impact on this scenic coastal landscape. Less suitable areas include the steep-sided valleys and higher elevations to the north and east, where challenging gradients, poor access, and unstable ground conditions would significantly increase development costs and complexity. The heavily forested areas and designated conservation zones also present regulatory and practical obstacles for large-scale solar development.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
