Hornchurch, England, United Kingdom presents a moderately suitable location for solar PV energy generation, though with significant seasonal variations typical of its position in the Northern Temperate Zone. The solar output data reveals substantial differences between peak and low production periods throughout the year.

Seasonal Solar Performance

Summer represents the optimal period for solar energy generation at this location, producing 5.09kWh per day per kW of installed capacity. This makes it the most productive season, delivering more than five times the energy output compared to winter months. Spring follows as the second-best performing season with 4.34kWh per day per kW, demonstrating that the shoulder seasons can still provide substantial energy generation. The combination of increasing daylight hours and favorable weather conditions makes spring particularly valuable for solar production. Autumn shows a notable decline to 2.23kWh per day per kW, representing less than half of summer's output. Winter presents the most challenging period with only 0.99kWh per day per kW, highlighting the significant seasonal variation that characterizes solar generation in the UK.

Optimal Installation Configuration

For fixed panel installations at Hornchurch, England, the ideal tilt angle is 44 degrees facing south to maximize total year-round production. This angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data, accounting for Earth's elliptical orbit around the sun.

Local Factors Affecting Solar Production

Several environmental and weather factors in Hornchurch can significantly impact solar PV performance:

• Frequent cloud cover and overcast conditions typical of the British climate
• High humidity levels that can reduce panel efficiency
• Regular rainfall and moisture accumulation on panels
• Potential for fog and mist, particularly during autumn and winter months
• Salt air from proximity to coastal areas, which can cause corrosion over time

Preventative Measures for Enhanced Performance

To maximize energy production despite these challenges, several installation strategies should be considered:

• Install panels with adequate spacing to allow natural cleaning from rainfall
• Use anti-reflective coatings and hydrophobic treatments to minimize dirt accumulation
• Ensure proper drainage and ventilation around panels to prevent moisture buildup
• Select corrosion-resistant mounting systems suitable for coastal environments
• Position installations away from trees or buildings that could create shading during low-angle winter sun
• Consider regular professional cleaning schedules, particularly after dusty or pollen-heavy periods

Regular maintenance becomes particularly important in this climate to ensure panels remain clean and free from debris that could reduce efficiency during already limited winter production periods.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

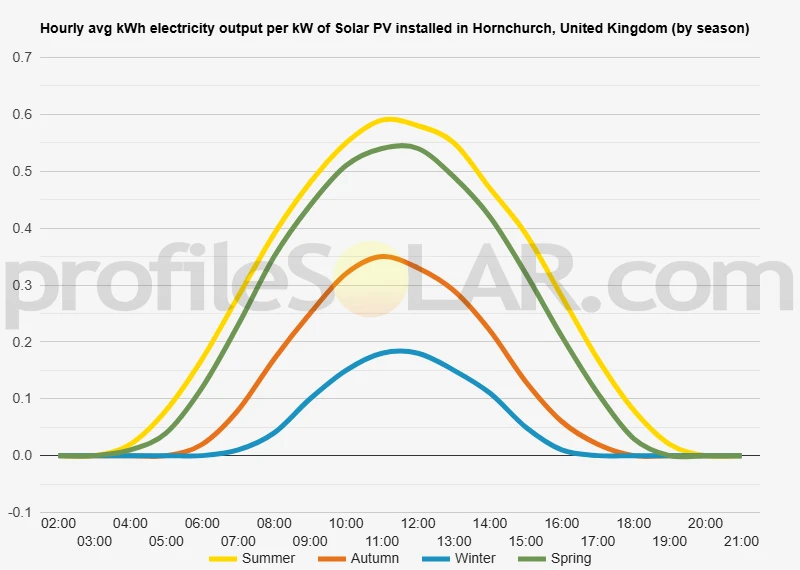

Solar output per kW of installed solar PV by season in Hornchurch

Seasonal solar PV output for Latitude: 51.558, Longitude: 0.2245 (Hornchurch, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Hornchurch, United Kingdom

To maximize your solar PV system's energy output in Hornchurch, United Kingdom (Lat/Long 51.558, 0.2245) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Hornchurch, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Hornchurch, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	55° South in Autumn	65° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Hornchurch, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Hornchurch, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Hornchurch, United Kingdom

Topographical Features of Hornchurch

The landscape around Hornchurch is characterized by relatively flat, low-lying terrain typical of the Thames Estuary region in East London. This area sits within the London Basin, where elevations rarely exceed 30 meters above sea level. The gentle undulations and predominantly level ground create favorable conditions for development and infrastructure projects. The region forms part of the broader Essex coastal plain, which extends eastward toward the North Sea. Ancient river terraces from the Thames have shaped much of the local topography, creating a series of subtle ridges and shallow valleys that are barely perceptible to the casual observer. These geological formations have resulted in well-drained soils across much of the area, though some lower-lying sections near waterways may experience seasonal variations in ground conditions.

Drainage and Water Features

Several small streams and drainage channels meander through the Hornchurch area, most notably the Rom River, which flows northward through the district. These waterways have carved shallow valleys into the landscape, though the gradients remain minimal throughout the region. The presence of these water features creates localized variations in the otherwise uniform topography, with slightly elevated areas between the drainage corridors. The proximity to the Thames Estuary influences the local hydrology, with tidal effects extending inland through connected waterways. This coastal influence, combined with the area's low elevation, means that flood management considerations play a role in land use planning across the region.

Optimal Areas for Large-Scale Solar Development

The expansive agricultural lands stretching eastward from Hornchurch toward Upminster and Cranham present excellent opportunities for large-scale solar installations. These areas feature extensive flat fields with minimal topographical constraints, allowing for efficient panel layout and maintenance access. The agricultural belt extending toward Brentwood and the broader Essex countryside offers particularly suitable conditions due to the combination of level terrain and large unobstructed parcels of land. The elevated areas around Upminster Common and the gentle slopes extending toward Warley provide additional promising locations. While these areas feature slightly more varied topography, the gradual inclines and southern-facing aspects could enhance solar collection efficiency. The open countryside between Hornchurch and Basildon contains numerous large agricultural fields that would accommodate substantial solar arrays without significant grading or terrain modification. Areas to the north of Hornchurch, particularly the farmland extending toward Romford and beyond, offer substantial flat expanses with excellent accessibility via existing road networks. The relatively sparse development in these agricultural zones reduces potential conflicts with residential areas while providing the space necessary for meaningful renewable energy generation.

Infrastructure Considerations

The region benefits from well-developed transportation networks, including major roads and rail connections that facilitate construction and maintenance access. The proximity to London's electrical grid infrastructure provides advantageous connection points for large-scale solar developments. The combination of suitable topography, existing infrastructure, and available land makes the agricultural areas surrounding Hornchurch particularly attractive for renewable energy projects.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
