Flag of United KingdomSolar PV Analysis of Isleworth, United Kingdom

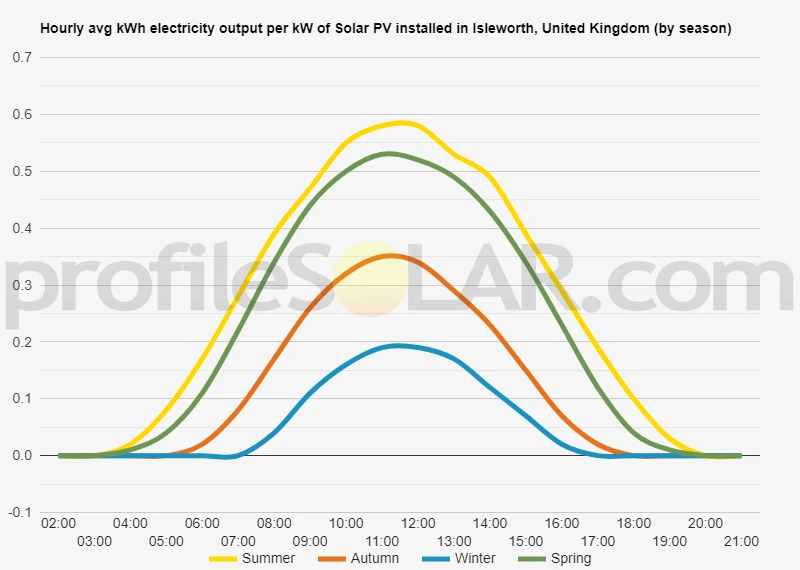

Graph of hourly avg kWh electricity output per kW of Solar PV installed in Isleworth, United Kingdom (by season)

The location at Isleworth, England, United Kingdom is decent for generating energy through solar photovoltaic (PV) systems throughout the year, though it's not perfect. It's in the Northern Temperate Zone and can produce varying amounts of electricity depending on the season.

During summer, each kilowatt of installed solar can generate about 5.13 kilowatt-hours per day. In autumn, this drops to around 2.31 kWh/day; winter sees a further drop to about 1.07 kWh/day; and spring increases again to around 4.36 kWh/day.

This means that the best times of year for generating solar power in Isleworth are during spring and summer when daylight hours are longest and sunlight is strongest.

For fixed panel installations at this location, tilting panels at an angle of 44 degrees facing south would maximize total yearly production from your solar PV system as it aligns with the sun’s path across the sky most effectively over different seasons.

As for local factors that could impact solar production: The UK is known for its cloudy weather which could reduce sunlight reaching your panels thereby reducing their efficiency. Additionally, any nearby tall buildings or trees might cast shadows onto your panels which would also limit their output.

To mitigate these issues:

1) Choose high-efficiency panels that work well even in less-than-ideal light conditions.
2) If possible, install your system where there will be minimal shading throughout the day.
3) Regular cleaning and maintenance can help ensure maximum absorption of available light by keeping dirt or debris off your panels.
4) Consider installing a tracking system that allows your panels to follow the sun’s path across the sky during daytime thus maximizing exposure to direct sunlight.

Remember though every situation is unique so it's always best to consult with a local expert before making decisions regarding installation specifics based on average data alone!

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 754 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

Solar output per kW of installed solar PV by season in Isleworth

Seasonal solar PV output for Latitude: 51.4731, Longitude: -0.3438 (Isleworth, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Summer
Average 5.13kWh/day in Summer.
Autumn
Average 2.31kWh/day in Autumn.
Winter
Average 1.07kWh/day in Winter.
Spring
Average 4.36kWh/day in Spring.



Ideally tilt fixed solar panels 44° South in Isleworth, United Kingdom

To maximize your solar PV system's energy output in Isleworth, United Kingdom (Lat/Long 51.4731, -0.3438) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

The sun
At Latitude: 51.4731, Longitude: -0.3438, the ideal angle to tilt panels is 44° South

Seasonally adjusted solar panel tilt angles for Isleworth, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Isleworth, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle Overall Best Autumn Angle Overall Best Winter Angle Overall Best Spring Angle
35° South in Summer 55° South in Autumn 65° South in Winter 43° South in Spring

Assuming you can modify the tilt angle of your solar PV panels throughout the year, you can optimize your solar generation in Isleworth, United Kingdom as follows: In Summer, set the angle of your panels to 35° facing South. In Autumn, tilt panels to 55° facing South for maximum generation. During Winter, adjust your solar panels to a 65° angle towards the South for optimal energy production. Lastly, in Spring, position your panels at a 43° angle facing South to capture the most solar energy in Isleworth, United Kingdom.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Isleworth, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Isleworth, United Kingdom.

Our calculation method

  1. Solar Position:
    We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
  2. Shadow Projection:
    We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
  3. Minimum Spacing:
    We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.






Please enter information above to calculate panel spacing.

Topography for solar PV around Isleworth, United Kingdom

Isleworth is located in the London Borough of Hounslow, in the southwestern part of Greater London. The topography of this area is relatively flat with some gentle slopes. It's situated near the River Thames which provides a low-lying, level terrain.

The areas most suited for large-scale solar PV installations would be open spaces with minimal shading and maximum sun exposure throughout the day. Nearby locations that could potentially meet these criteria include:

1. Parks and green spaces: There are numerous parks around Isleworth such as Syon Park, Redlees Park, or Osterley Park that could potentially host solar panels if permitted by local regulations.

2. Industrial or commercial rooftops: Large buildings such as warehouses or factories often have expansive rooftop spaces that can be utilized for solar panel installation.

3. Brownfield sites: These are previously developed lands that are not currently in use and may be suitable for renewable energy projects.

4. Farmland: Areas outside of Isleworth towards Surrey could potentially accommodate large scale solar farms if landowners were willing to lease their property for this purpose.

However, it should be noted that any potential site would need to undergo an individual feasibility study considering factors like local planning policies, grid connection availability and environmental impacts before proceeding with a large-scale solar project.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
