Kilsyth, United Kingdom presents a challenging location for year-round solar energy generation, with significant seasonal variations that reflect its position in the Northern Temperate Zone at coordinates 55.9707, -4.0636.

Seasonal Solar Performance

The solar energy output at Kilsyth varies dramatically throughout the year. Summer months deliver the strongest performance at 5.06 kWh per day per kW of installed solar capacity, making this the prime season for solar generation. Spring follows as the second-best period with 4.15 kWh per day per kW, offering nearly as much potential as summer. Autumn sees a significant decline to 1.64 kWh per day per kW, while winter presents the most challenging conditions with only 0.75 kWh per day per kW. This represents more than a six-fold difference between peak summer and winter production, highlighting the seasonal dependency of solar power at this latitude.

Optimal Installation Configuration

For maximum year-round energy production at Kilsyth, solar panels should be installed at a fixed tilt angle of 47 degrees facing south. This angle has been calculated to optimize total annual output by accounting for the sun's varying position throughout the year and weighting the angles based on actual solar irradiance data.

Local Environmental Challenges

Several environmental and weather factors in the Kilsyth area can significantly impact solar panel performance:

• Frequent cloud cover and overcast skies typical of Scotland's maritime climate
• Regular rainfall that can reduce solar irradiance
• Potential for snow accumulation during winter months
• High humidity levels that may affect panel efficiency
• Strong winds common in the region

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies can be employed:

• Install panels with adequate spacing to prevent snow buildup and allow natural cleaning from rain
• Use high-quality mounting systems designed to withstand strong winds
• Consider anti-reflective coatings that perform better in diffuse light conditions
• Ensure proper drainage around panel installations to prevent water pooling
• Select panels with good low-light performance characteristics
• Implement regular maintenance schedules to clear any debris or buildup

Regular cleaning and maintenance become particularly important in this climate, as the frequent moisture can lead to dirt and organic matter accumulating on panel surfaces, further reducing their already limited winter efficiency. While Kilsyth's location makes solar energy generation viable during spring and summer months, the substantial winter reduction in output means that solar installations here work best as part of a diversified energy strategy rather than as a sole power source.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

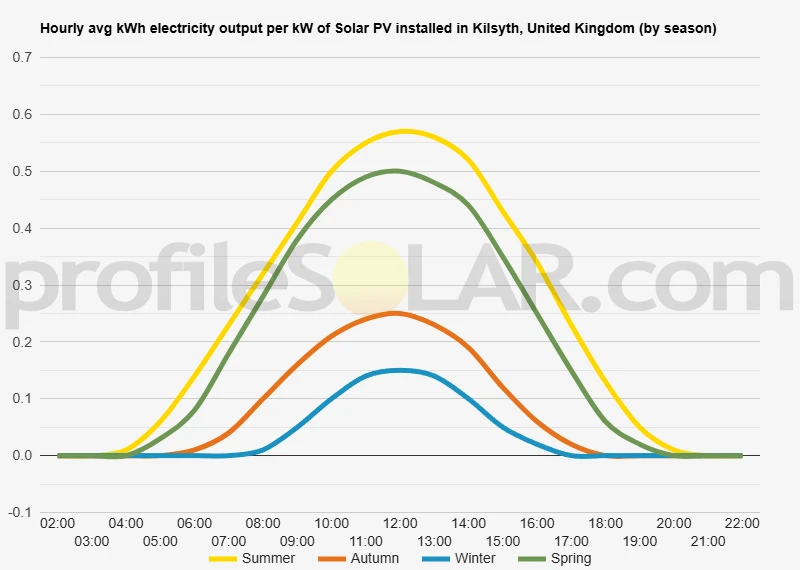

Solar output per kW of installed solar PV by season in Kilsyth

Seasonal solar PV output for Latitude: 55.9707, Longitude: -4.0636 (Kilsyth, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 47° South in Kilsyth, United Kingdom

To maximize your solar PV system's energy output in Kilsyth, United Kingdom (Lat/Long 55.9707, -4.0636) throughout the year, you should tilt your panels at an angle of 47° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kilsyth, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kilsyth, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 47° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
39° South in Summer	59° South in Autumn	69° South in Winter	48° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kilsyth, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kilsyth, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kilsyth, United Kingdom

Topographical Features Around Kilsyth

Kilsyth sits in a distinctive position within Scotland's central belt, nestled between the southern edge of the Campsie Fells and the more gentle terrain that stretches towards Glasgow to the southwest. The town itself occupies a relatively elevated position at approximately 200 metres above sea level, positioned on what can be described as an undulating plateau that forms part of the broader Kelvin Valley landscape.

The most prominent topographical feature dominating the area is the dramatic escarpment of the Campsie Fells, which rises steeply to the north and northeast of the town. This ancient volcanic formation creates a natural barrier, with peaks reaching over 500 metres in elevation, including notable summits like Cort-ma Law and Laird's Hill. The steep southern face of these hills presents a striking backdrop to the town but also creates significant variations in terrain within a relatively short distance.

To the south and west of Kilsyth, the landscape transitions into gentler rolling farmland and moorland, with gradual slopes descending towards the River Kelvin valley system. This area forms part of the broader central Scottish lowlands, characterized by a mix of agricultural fields, scattered woodland, and areas of rough grazing land. The terrain here is generally more forgiving, with moderate gradients and fewer dramatic elevation changes.

Suitable Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations lie in the gentler terrain south and southwest of Kilsyth, where the landscape opens up into the broader Kelvin Valley. These areas offer several advantages for solar development, including more consistent south-facing slopes that can be optimized for solar panel orientation, and terrain that is neither too steep nor too flat, allowing for effective drainage while maintaining accessibility for construction and maintenance.

The agricultural land between Kilsyth and the villages of Twechar and Queenzieburn presents particularly suitable conditions, with gently undulating fields that could accommodate large arrays while maintaining reasonable access to existing road networks. The gradual southward slope of much of this terrain naturally lends itself to optimal panel positioning, while the relatively open landscape reduces concerns about shading from nearby topographical features.

Areas further west towards Kirkintilloch and south towards Cumbernauld also show promise, where the landscape becomes increasingly gentle and the elevation gradually decreases. These locations benefit from being positioned away from the dramatic topographical variations created by the Campsie Fells, resulting in more predictable ground conditions and fewer microclimatic variations that could affect solar panel performance.

The steeper slopes and elevated positions closer to the Campsie Fells would generally be less suitable for large-scale solar installations due to the challenging terrain, potential for increased wind exposure, and the practical difficulties of construction and maintenance on steep gradients. Additionally, the more dramatic topography in these areas could create shadowing effects that would reduce the effectiveness of solar arrays during certain times of the day or year.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.
