Kilwinning, a town in North Ayrshire, Scotland, presents a mixed picture for solar PV energy generation. Located in the Northern Temperate Zone, this location experiences significant seasonal variations in solar output, which impacts its overall suitability for year-round solar energy production.

Seasonal Solar Performance

The solar energy potential in Kilwinning varies dramatically across the seasons. Summer stands out as the most productive period, with an impressive 5.10 kWh/day per kW of installed solar capacity. Spring follows closely behind, generating 4.22 kWh/day. However, the output drops significantly in autumn to 1.68 kWh/day, and plummets to a mere 0.81 kWh/day in winter.

This stark contrast between seasons means that solar energy generation in Kilwinning is highly inconsistent throughout the year. The long summer days provide excellent conditions for solar power, making it an ideal time for energy production. Spring also offers good potential, with increasing daylight hours and generally clearer skies.

Challenges and Considerations

The primary challenge for solar PV in Kilwinning is the extremely low output during winter months. The short days and typically overcast weather conditions in this part of Scotland significantly reduce solar efficiency. Autumn also presents challenges, with rapidly decreasing daylight hours and increased cloud cover.

To maximize year-round production, solar panels should be installed at a tilt angle of 47 degrees facing south. This optimal angle helps capture the most sunlight possible throughout the year, considering the location's latitude and seasonal sun paths.

Environmental Factors and Mitigation

Several environmental factors can impede solar production in Kilwinning:

1. Cloud cover: The area experiences frequent overcast conditions, especially in autumn and winter.
2. Rainfall: Kilwinning has a wet climate, which can reduce solar panel efficiency.
3. Short winter days: The high latitude results in very short days during winter months.

To mitigate these challenges, consider the following measures:

• Use high-efficiency solar panels designed for low-light conditions.
• Implement a robust cleaning schedule to combat the effects of frequent rainfall.
• Consider supplementary energy sources for winter months when solar output is minimal.
• Utilize solar tracking systems to maximize exposure during limited daylight hours.

In conclusion, while Kilwinning's location is excellent for solar energy production during summer and spring, the significant drop in output during autumn and winter makes it less than ideal for consistent year-round solar PV generation. Careful planning and appropriate technology choices can help maximize the potential of solar energy in this challenging climate.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

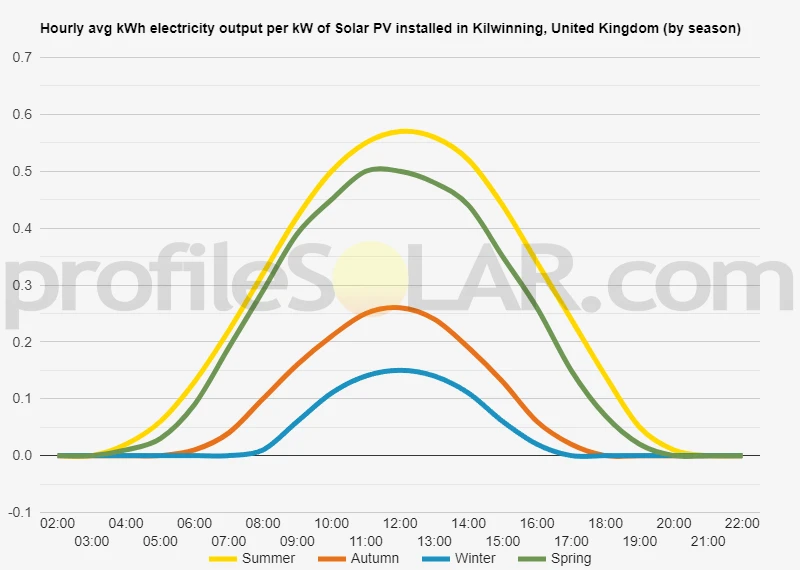

Solar output per kW of installed solar PV by season in Kilwinning

Seasonal solar PV output for Latitude: 55.6534, Longitude: -4.6941 (Kilwinning, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 47° South in Kilwinning, United Kingdom

To maximize your solar PV system's energy output in Kilwinning, United Kingdom (Lat/Long 55.6534, -4.6941) throughout the year, you should tilt your panels at an angle of 47° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kilwinning, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kilwinning, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 47° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
39° South in Summer	58° South in Autumn	69° South in Winter	47° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kilwinning, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kilwinning, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kilwinning, United Kingdom

Kilwinning, located in North Ayrshire, Scotland, is situated in a relatively low-lying area with gently rolling hills and open countryside. The town itself sits at an elevation of around 30 meters above sea level, with the surrounding landscape gradually rising to higher elevations as you move away from the town center. To the east and northeast of Kilwinning, the terrain becomes more undulating, with small hills and valleys characterizing the landscape. This area is primarily used for agriculture, with a mix of pastures and croplands. The River Garnock flows to the east of the town, carving a shallow valley through the countryside. To the west and southwest, the land slopes gently towards the Firth of Clyde, with expansive views of the coastline and the Isle of Arran in the distance. This area is generally flatter, with some low-lying wetlands and marshes near the coast.

Potential for Solar PV Development

When considering areas suitable for large-scale solar PV installations near Kilwinning, several factors come into play. The most promising locations would likely be found in the gently sloping farmlands to the east and northeast of the town. These areas offer several advantages for solar development: 1. The gradual slopes provide good exposure to sunlight throughout the day, maximizing energy generation potential. 2. The agricultural land in this region is generally open and free from major obstructions that could cast shadows on solar panels. 3. The existing road network in the area could facilitate the construction and maintenance of solar farms. 4. The land is already being used for agriculture, which means it may be easier to obtain planning permission for solar installations compared to more environmentally sensitive areas. However, it's important to note that while these areas may be technically suitable for solar PV development, any large-scale projects would need to carefully consider their impact on the local landscape, wildlife, and agricultural productivity. Additionally, the relatively northern latitude of Kilwinning means that solar irradiance levels are lower compared to more southern locations, which could affect the overall efficiency and economic viability of large-scale solar projects in the region.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
