Kings Langley, England, United Kingdom, located in the Northern Temperate Zone at coordinates 51.7196, -0.447, presents a moderately favorable location for solar PV energy generation, though with significant seasonal variations that are typical for this latitude.

Seasonal Solar Performance

The solar energy output at Kings Langley varies dramatically throughout the year. Summer provides the peak performance at 5.07kWh per day per kW of installed solar capacity, making it an excellent time for solar generation. Spring also offers strong performance at 4.28kWh per day per kW, providing nearly as much energy as the summer months. Autumn sees a notable decline to 2.25kWh per day per kW, while winter presents the most challenging period with only 1.03kWh per day per kW. This winter figure represents roughly one-fifth of the summer output, highlighting the significant seasonal challenge for solar installations in this location.

Optimal Installation Configuration

For maximum year-round solar production at Kings Langley, England, fixed solar panels should be tilted at 44 degrees facing south. This angle is calculated to optimize total annual energy output by accounting for the sun's varying position throughout the year and the location's specific latitude.

Local Factors Affecting Solar Production

Several environmental and weather factors in Kings Langley can significantly impact solar energy production:

• Frequent cloud cover and overcast conditions - The UK's maritime climate brings regular cloudy weather that can substantially reduce solar output
• High humidity and frequent precipitation - Rain, drizzle, and morning dew are common, affecting panel efficiency
• Atmospheric pollution and dust accumulation - Being in the greater London area, air quality can impact panel performance over time
• Seasonal fog and mist - Particularly common in autumn and winter months, reducing available sunlight

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered: Regular cleaning schedules are essential to remove dust, pollution residue, and organic matter that accumulates on panel surfaces. Installing panels with adequate spacing and ventilation helps prevent moisture buildup and allows for better air circulation, reducing the impact of humidity. Choosing high-quality panels with anti-reflective coatings and superior low-light performance can help maintain efficiency during overcast conditions. Additionally, installing monitoring systems allows for quick identification of performance issues caused by weather-related factors. Proper drainage systems around the installation site prevent water pooling, while strategic placement away from trees and buildings minimizes shading during the critical low-sun periods of autumn and winter when every bit of available light is crucial for energy generation.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

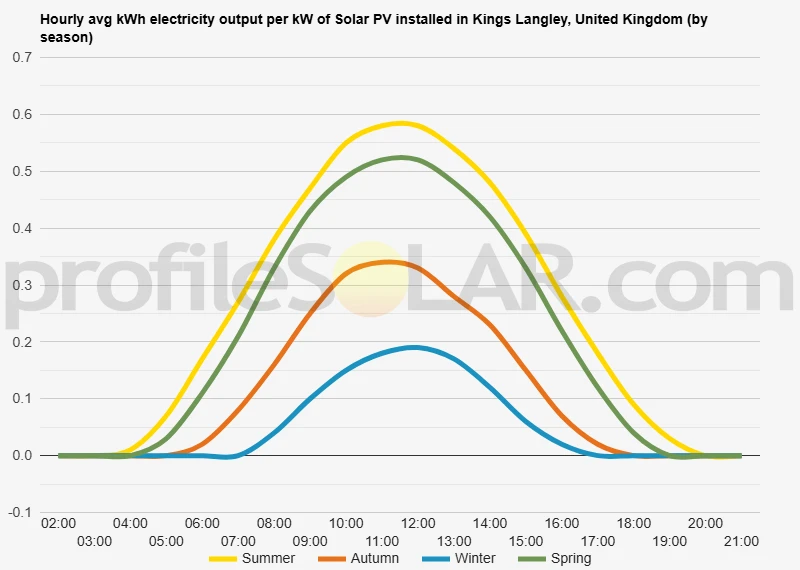

Solar output per kW of installed solar PV by season in Kings Langley

Seasonal solar PV output for Latitude: 51.7196, Longitude: -0.447 (Kings Langley, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Kings Langley, United Kingdom

To maximize your solar PV system's energy output in Kings Langley, United Kingdom (Lat/Long 51.7196, -0.447) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kings Langley, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kings Langley, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	55° South in Autumn	65° South in Winter	44° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kings Langley, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kings Langley, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kings Langley, United Kingdom

Topographical Characteristics of Kings Langley

Kings Langley sits within the Chiltern Hills region of Hertfordshire, positioned in a landscape characterized by gentle rolling hills and river valleys. The town occupies a relatively elevated position on the western edge of the Gade Valley, with the River Gade flowing northward through the area toward its confluence with the River Colne. The terrain around Kings Langley features a mix of chalk downland typical of the Chilterns, with elevations ranging from approximately 60 metres above sea level in the valley bottom to over 150 metres on the surrounding hilltops. The local topography is defined by a series of dry valleys and ridges that run in a northeast to southwest orientation, following the geological structure of the underlying chalk bedrock. These valleys, known as coombes, were carved during previous ice ages and now form distinctive features in the landscape. The slopes are generally moderate, rarely exceeding gradients that would present significant challenges for development or land use. South and east of Kings Langley, the land rises toward Chipperfield and the main ridge of the Chiltern Hills. To the north and west, the terrain descends gradually toward the broader Colne Valley. This varied topography creates a patchwork of different microclimates and exposures, with south-facing slopes receiving optimal solar exposure throughout the day.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Kings Langley would be the gently sloping south-facing hillsides that characterize much of the area between Kings Langley and Hemel Hempstead. These slopes offer ideal orientation for solar panels while maintaining gradients that are manageable for construction and maintenance access. The elevated plateau areas to the southeast, particularly around Chipperfield Common and toward Sarratt, present excellent opportunities for solar development. These locations benefit from minimal shading from surrounding topography and offer relatively flat to gently undulating terrain that would minimize earthworks and installation costs. The open agricultural land in this area provides large contiguous parcels that could accommodate substantial solar arrays. West of Kings Langley, toward Abbots Langley and the M25 corridor, the landscape opens into broader, flatter agricultural areas within the Colne Valley. While these areas may have slightly lower elevation, they offer extensive open spaces with good southern exposure and minimal topographical constraints. The proximity to existing electrical infrastructure along this developed corridor could provide advantages for grid connection. The area north of Kings Langley, extending toward Hemel Hempstead, includes several large open fields on gentle south-facing slopes that would be well-suited to solar development. These locations benefit from the natural amphitheater effect created by the surrounding hills, which provides shelter from prevailing winds while maintaining excellent solar exposure. Areas to avoid for large-scale solar installations would include the steeper valley sides immediately adjacent to the River Gade, where slopes may be too steep and where development could impact the river corridor environment. Similarly, the heavily wooded areas on some of the steeper hillsides would require extensive clearing and may face planning constraints due to their ecological value.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
