Lockerbie, United Kingdom presents significant challenges for year-round solar energy generation, with highly variable seasonal performance that makes it far from ideal for consistent solar PV output.

Seasonal Solar Performance

The solar energy production at Lockerbie varies dramatically throughout the year. Summer delivers the strongest performance at 5.06 kWh per day per kW of installed capacity, making it a reasonably productive period for solar generation. Spring also shows good potential with 4.05 kWh per day per kW. However, the location struggles considerably during the darker months. Autumn production drops to just 1.71 kWh per day per kW, while winter performance plummets to a mere 0.77 kWh per day per kW of installed capacity. This represents more than a six-fold difference between peak summer and winter production.

Optimal Installation Configuration

For maximum year-round energy production at Lockerbie, solar panels should be installed at a fixed tilt angle of 46 degrees facing south. This angle has been calculated to optimize total annual output by accounting for the sun's varying position throughout the year and the location's specific latitude.

Environmental and Weather Challenges

Several local factors can significantly impede solar production at this Scottish location:

• Frequent cloud cover and overcast conditions typical of Scotland's maritime climate
• Regular rainfall that can reduce light transmission and soil panels
• Snow accumulation during winter months that can completely block panels
• High humidity and fog, particularly common in the Scottish lowlands
• Strong winds that can affect panel positioning and create debris issues

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Install panels with adequate spacing to allow natural rain cleaning and prevent shading from accumulated debris
• Use mounting systems that allow for steeper angles to help snow slide off more easily
• Implement robust mounting structures designed to withstand high wind loads
• Consider anti-reflective coatings that perform better in diffuse light conditions
• Plan for regular maintenance access to clear snow, leaves, and other debris
• Install monitoring systems to quickly identify performance issues

The location's northern latitude and maritime climate make it better suited for seasonal rather than year-round solar dependence, with summer and spring months offering the most viable periods for substantial solar energy generation.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

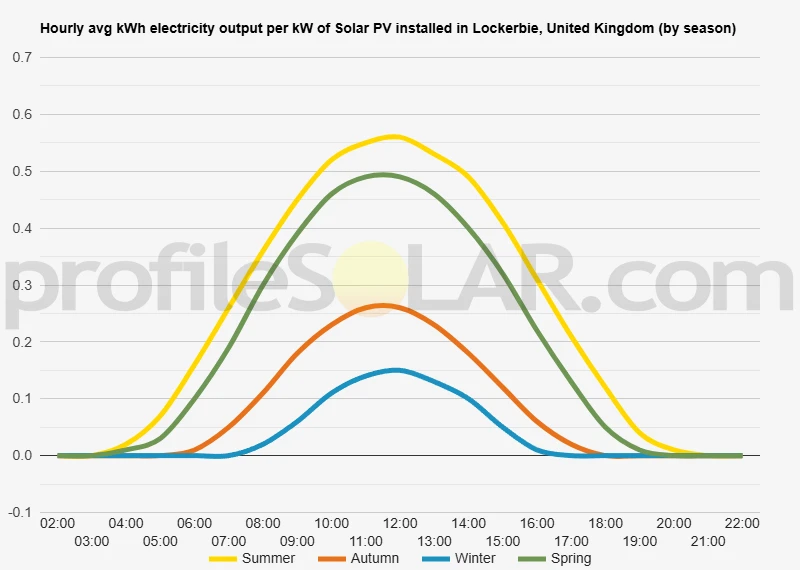

Solar output per kW of installed solar PV by season in Lockerbie

Seasonal solar PV output for Latitude: 55.123, Longitude: -3.3564 (Lockerbie, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 46° South in Lockerbie, United Kingdom

To maximize your solar PV system's energy output in Lockerbie, United Kingdom (Lat/Long 55.123, -3.3564) throughout the year, you should tilt your panels at an angle of 46° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Lockerbie, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Lockerbie, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 46° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
39° South in Summer	58° South in Autumn	68° South in Winter	47° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Lockerbie, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Lockerbie, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Lockerbie, United Kingdom

Topography Around Lockerbie

Lockerbie sits in the gently rolling landscape of Dumfries and Galloway in southern Scotland, positioned within the broader Annandale valley system. The town itself lies at a relatively modest elevation, surrounded by undulating farmland that characterises much of the Scottish Borders region. The terrain here is predominantly agricultural, featuring a patchwork of fields, pastures, and scattered woodland that creates the典型 Scottish lowland scenery.

The immediate area around Lockerbie exhibits gentle slopes and modest hills rather than dramatic elevation changes. To the north and east, the landscape gradually rises toward the Southern Uplands, while the terrain to the south and west maintains a more level character as it approaches the Solway Firth coastal plain. This topographical arrangement creates natural drainage patterns that flow generally southward toward the River Annan and its tributaries.

The underlying geology consists mainly of sedimentary rocks from the Permian and Triassic periods, which have weathered to create fertile soils well-suited to agriculture. These geological foundations contribute to the area's relatively stable and gently contoured landscape, with few steep gradients or dramatic topographical features that might complicate land development projects.

Optimal Areas for Large-Scale Solar Development

The most promising locations for substantial solar photovoltaic installations around Lockerbie would be the extensive areas of relatively flat to gently sloping agricultural land that dominate the local landscape. These areas offer several advantages for solar development, including minimal grading requirements, good accessibility for construction and maintenance vehicles, and sufficient space for large arrays without significant topographical constraints.

South-facing slopes with gradients between 5 and 15 degrees would be particularly well-suited for solar installations, as they provide natural optimal positioning without requiring complex mounting systems. Several such areas exist in the farmland surrounding Lockerbie, particularly on the southern aspects of the gentle hills that characterise the region. These locations would benefit from reduced shading issues and natural drainage away from the installation sites.

The agricultural fields immediately southwest and southeast of Lockerbie present excellent opportunities for solar development. These areas combine relatively level terrain with good road access via the existing network of farm tracks and minor roads. The open nature of this landscape minimises concerns about shading from trees or buildings, while the existing field boundaries could potentially accommodate the infrastructure requirements of large-scale solar installations.

Areas closer to existing electrical infrastructure would also be advantageous for development. The proximity to the town of Lockerbie itself, along with the major transport corridors including the M74 motorway and the West Coast Main Line railway, suggests that electrical grid connections may be more readily available in certain locations. Fields within a few kilometres of these infrastructure corridors would likely offer the most practical development opportunities from both logistical and connection standpoints.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
