Maesteg, United Kingdom, located in the Northern Temperate Zone, presents a moderately challenging environment for year-round solar PV energy generation. The location experiences significant seasonal variation in solar output, which is typical for its northern latitude position.

Seasonal Solar Performance

The solar energy production at Maesteg varies dramatically throughout the year. Summer provides the strongest performance at 5.36kWh per day per kW of installed capacity, making it the prime season for solar generation. Spring follows as the second-best period with 4.46kWh per day per kW, offering substantial energy production as daylight hours increase and weather conditions improve. Autumn sees a notable decline to 2.24kWh per day per kW as the region transitions into the darker months. Winter presents the most challenging conditions, dropping to just 0.99kWh per day per kW, representing less than one-fifth of summer production levels. For optimal year-round performance at this location, solar panels should be installed at a fixed tilt angle of 44 degrees facing south. This angle maximizes total annual energy production by accounting for the sun's varying position throughout the seasons and the Earth's elliptical orbit.

Environmental and Weather Challenges

Several local factors in Maesteg can significantly impact solar energy production:

• Frequent cloud cover and overcast skies, particularly during autumn and winter months
• High rainfall typical of the Welsh climate, which can reduce solar irradiance
• Atmospheric moisture and humidity that can scatter and absorb sunlight
• Dust and debris accumulation on panels from local industrial activity or agricultural areas
• Potential shading from surrounding hills and valleys characteristic of the South Wales geography

Preventative Installation Measures

To maximize solar energy production despite these challenges, several installation strategies can be employed:

• Install panels with adequate spacing to minimize inter-row shading during low sun angles
• Use high-quality anti-reflective glass coatings that perform better in diffuse light conditions
• Implement regular cleaning schedules to remove dirt, moss, and debris buildup
• Choose panel locations that avoid shading from buildings, trees, or terrain features
• Consider micro-inverters or power optimizers to minimize impact when partial shading occurs
• Ensure proper drainage around panel installations to prevent water pooling

Despite these challenges, Maesteg can still achieve reasonable solar energy production, particularly during the spring and summer months when conditions are most favorable. The key to success lies in proper system design and maintenance to work effectively within the local climate constraints.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

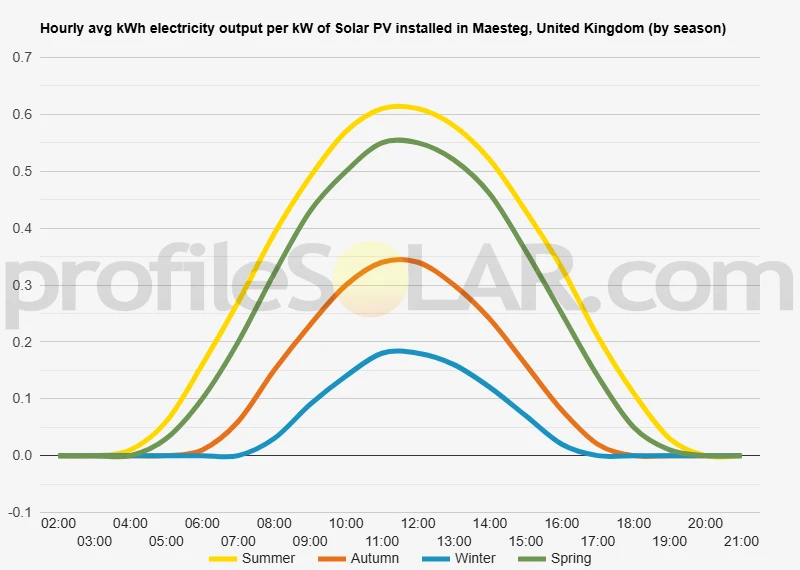

Solar output per kW of installed solar PV by season in Maesteg

Seasonal solar PV output for Latitude: 51.6071, Longitude: -3.6526 (Maesteg, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Maesteg, United Kingdom

To maximize your solar PV system's energy output in Maesteg, United Kingdom (Lat/Long 51.6071, -3.6526) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Maesteg, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Maesteg, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	55° South in Autumn	65° South in Winter	44° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Maesteg, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Maesteg, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Maesteg, United Kingdom

Topographical Features Around Maesteg

Maesteg sits in the Llynfi Valley within the South Wales Valleys region, positioned at an elevation of approximately 150 metres above sea level. The town is nestled between rolling hills that are characteristic of the former coal mining landscape of South Wales. The terrain consists of steep-sided valleys carved by ancient glacial activity and subsequent river erosion, creating a distinctive bowl-like topography with the Llynfi River running through the valley floor. The surrounding landscape is dominated by the Bridgend Hills to the south and the broader Glamorgan uplands extending northward. These hills rise to heights of 300-400 metres, creating a series of ridgelines that run predominantly east-west across the region. The valley sides are moderately steep, typically ranging from 10-25 degree slopes, though some areas feature more dramatic inclines approaching 30 degrees. The geology underlying the area consists primarily of Carboniferous sandstone and mudstone formations, with coal measures that historically supported the region's mining industry. This has resulted in relatively stable ground conditions, though some areas show evidence of past mining subsidence. The soil composition varies from peaty deposits on the higher moorland areas to more fertile alluvial soils along the valley floor.

Climate and Environmental Conditions

The maritime climate of South Wales brings frequent cloud cover and precipitation throughout the year, with the surrounding hills creating local weather patterns that can affect solar irradiance. The prevailing southwesterly winds carry moisture inland from the Atlantic, often resulting in orographic precipitation as air masses encounter the Welsh hills. Winter months typically bring overcast conditions with frequent rain and occasional snow on higher elevations. The valley location provides some shelter from the strongest winds, though this can also lead to temperature inversions and fog formation during certain weather conditions. Spring and summer months generally offer the most favorable conditions for solar energy generation, with longer daylight periods and reduced cloud cover.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Maesteg would be the gently sloping hillsides with southern or southwestern exposure. These areas benefit from maximum solar exposure throughout the day while avoiding the steepest terrain that would complicate installation and maintenance. The plateau areas and ridgelines to the south and southeast of Maesteg present particularly attractive opportunities. These elevated positions typically experience less shading from surrounding topography and benefit from improved air circulation that helps maintain optimal panel temperatures. The former industrial sites and reclaimed mining areas in these locations often provide large, relatively flat expanses suitable for utility-scale developments. Valley floor locations, while easily accessible, tend to experience more shading from surrounding hills, particularly during winter months when the sun angle is lower. However, some larger agricultural fields in the broader parts of the valley could still accommodate solar installations, especially those with clear southern exposure. The moorland areas on the higher elevations, while offering excellent exposure, may present challenges due to environmental designations, more extreme weather conditions, and potential access difficulties. These areas would require careful environmental assessment before development could proceed. Agricultural land with gentle south-facing slopes presents another opportunity, particularly where farming activities have declined or where agrivoltaic approaches could be implemented. The relatively stable geology throughout most of the region provides good foundation conditions for mounting systems, though areas with known mining history would require additional ground investigation.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
