Solar PV Analysis of Maldon, United Kingdom
The location at Maldon, England, United Kingdom, is moderately suitable for generating energy via solar photovoltaic (PV) panels throughout the year. The amount of electricity you can expect to generate from each kilowatt (kW) of installed solar panels changes with the seasons. During summer and spring, you could produce significantly more electricity (5.13 and 4.41 kilowatt-hours per day respectively), while in autumn and winter the output drops to 2.29 and 1.03 kilowatt-hours per day respectively.
This means that the most ideal times to generate solar power in this location are during spring and summer when sunlight is plentiful.
To maximize your total year-round production from a fixed panel installation at this location, it's best to tilt your panels at an angle of 44 degrees towards the south.
There may be some local factors that could affect your ability to produce solar energy in Maldon such as weather conditions - particularly cloud cover which is common in UK winters - or potential obstructions like buildings or trees blocking sunlight reaching your panels.
In terms of preventative measures, ensuring that there are no obstructions blocking sunlight from reaching your panels will help increase their efficiency. Additionally, regular maintenance such as cleaning off any dirt or debris on the surface of the panels can also improve performance by allowing more light absorption.
It's also worth considering a tracking system for your solar PV setup which follows the sun's path across sky – this would provide greater exposure than fixed systems especially during less sunny periods like autumn and winter; but keep in mind these systems tend to be more expensive than their stationary counterparts.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in United Kingdom by location

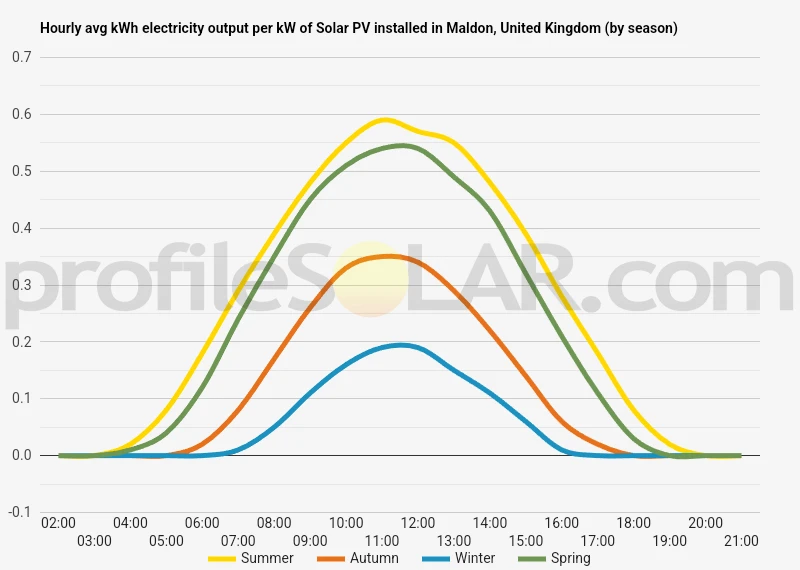

Solar output per kW of installed solar PV by season in Maldon
Seasonal solar PV output for Latitude: 51.7525, Longitude: 0.7382 (Maldon, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 44° South in Maldon, United Kingdom
To maximize your solar PV system's energy output in Maldon, United Kingdom (Lat/Long 51.7525, 0.7382) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Maldon, United Kingdom
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Maldon, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 35° South in Summer | 55° South in Autumn | 65° South in Winter | 44° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Maldon, United Kingdom
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Maldon, United Kingdom.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Maldon, United Kingdom
Maldon is located in the county of Essex, England. The topography around Maldon is relatively flat and low-lying, with some gentle hills. It's a coastal town situated on the Blackwater estuary.
In terms of suitability for large-scale solar PV installations, there are several factors to consider:
1) Sunlight: Essex generally receives good levels of sunlight compared to other parts of the UK which makes it suitable for solar energy production.
2) Land use: Large scale solar PV installations require significant amounts of open land. The areas around Maldon consist largely agricultural fields which could potentially be used for this purpose if not required for farming.
3) Proximity to power grid: For efficient transmission and minimal loss, proximity to power lines or substations would be beneficial.
4) Environmental considerations: Any potential sites would need careful assessment regarding impact on local wildlife and habitats.
Therefore, while specific locations would need detailed study and consideration, overall the surrounding areas may offer feasible options due to their relatively flat terrain, sufficient sunlight exposure and availability of open lands.
Please note that any such development would also require consultation with local communities as well as compliance with planning regulations and guidelines from relevant authorities like Department for Business, Energy & Industrial Strategy (BEIS), Natural England etc.
United Kingdom solar PV Stats as a country
United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United Kingdom?
Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.
Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
