Solar PV Analysis of Muswell Hill, United Kingdom
Muswell Hill, England, located in the United Kingdom, presents a mixed opportunity for solar energy generation throughout the year. Situated in the Northern Temperate Zone, this location experiences significant seasonal variations in solar potential.
Seasonal Solar Performance
Summer stands out as the most productive season for solar energy in Muswell Hill, England, with an average daily output of 5.13 kWh per kW of installed solar capacity. Spring follows closely behind, generating 4.36 kWh per day. However, the colder months see a substantial drop in solar production, with autumn yielding 2.31 kWh per day and winter producing a mere 1.07 kWh daily.
The stark contrast between summer and winter performance highlights the challenges of year-round solar energy generation in this location. While the longer, sunnier days of late spring and summer provide excellent conditions for solar power, the shorter, often overcast days of late autumn and winter significantly reduce energy output.
Optimal Panel Installation
To maximize year-round solar production in Muswell Hill, England, fixed solar panels should be installed at a tilt angle of 44 degrees facing south. This angle is calculated to optimize energy capture across all seasons, balancing the high summer sun with the lower winter sun angle.
Environmental and Weather Factors
Several factors can impact solar production in Muswell Hill:
- Cloud cover: The UK is known for its frequent overcast conditions, particularly in autumn and winter, which can significantly reduce solar output.
- Rain and humidity: Muswell Hill experiences considerable rainfall, which can temporarily decrease panel efficiency.
- Air pollution: Being close to London, air pollution can sometimes reduce sunlight reaching the panels.
To mitigate these factors, consider installing high-efficiency panels that perform well in low-light conditions. Regular cleaning and maintenance of panels can help combat the effects of pollution and rainfall. Additionally, incorporating a battery storage system can help balance out the seasonal variations in energy production.
In conclusion, while Muswell Hill's location presents challenges for year-round solar energy production, careful planning and appropriate technology can still make solar PV a viable option for supplementing energy needs, particularly during the more productive spring and summer months.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in United Kingdom by location

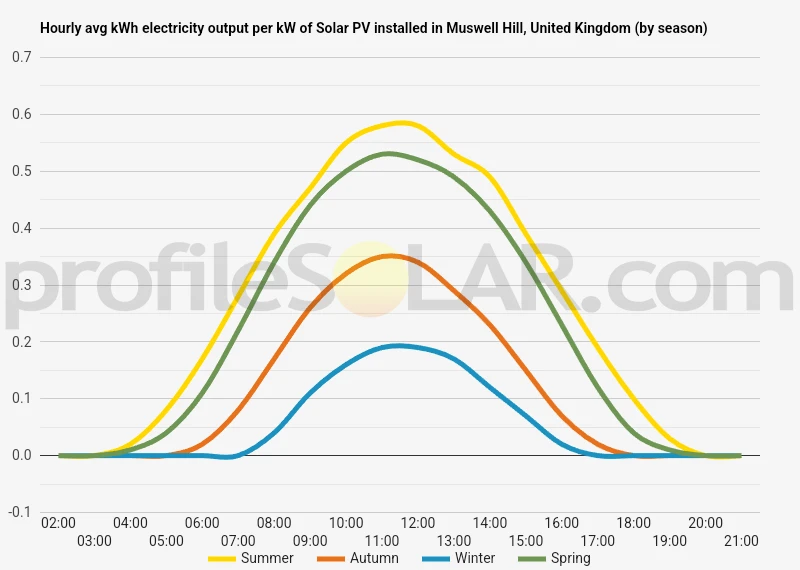

Solar output per kW of installed solar PV by season in Muswell Hill
Seasonal solar PV output for Latitude: 51.5936, Longitude: -0.1463 (Muswell Hill, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 44° South in Muswell Hill, United Kingdom
To maximize your solar PV system's energy output in Muswell Hill, United Kingdom (Lat/Long 51.5936, -0.1463) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Muswell Hill, United Kingdom
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Muswell Hill, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 35° South in Summer | 55° South in Autumn | 65° South in Winter | 44° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Muswell Hill, United Kingdom
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Muswell Hill, United Kingdom.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Muswell Hill, United Kingdom
Muswell Hill, located in North London, sits atop a prominent hill that rises noticeably above the surrounding area. The terrain in this part of London is characterized by gentle slopes and undulating landscapes, with Muswell Hill being one of the higher points in the vicinity. The hill itself reaches an elevation of about 105 meters (344 feet) above sea level, offering panoramic views of the city to the south.
The area surrounding Muswell Hill features a mix of residential neighborhoods, parks, and open spaces. To the east lies Alexandra Park, a large green area with varied topography including both flat areas and gentle slopes. To the north and west, the land gradually descends towards Highgate Wood and Queen's Wood, creating a series of smaller hills and valleys.
In terms of large-scale solar PV installations, the immediate vicinity of Muswell Hill itself may not be ideal due to its dense urban development and the presence of many trees which could cast shadows on potential solar arrays. However, there are some nearby areas that might be more suitable for such projects:
1. Alexandra Park: While it's a protected green space, some of its more open, south-facing slopes could potentially accommodate solar installations without significantly impacting recreational use.
2. Finsbury Park: Located to the southeast of Muswell Hill, this large open space has some flatter areas that could be considered for solar PV, though careful planning would be needed to balance energy production with park use.
3. Tottenham Marshes: Further east, this area offers more expansive, open spaces that could be suitable for larger solar installations, provided environmental considerations are taken into account.
4. Lee Valley: To the northeast, the Lee Valley area has some industrial and brownfield sites that could be repurposed for solar energy production.
It's important to note that any large-scale solar PV project in this area would need to carefully consider local planning regulations, environmental impact, and the preservation of green spaces, which are highly valued in this part of London. Additionally, the relatively high latitude of London means that solar installations would need to be carefully angled and positioned to maximize their efficiency.
United Kingdom solar PV Stats as a country
United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United Kingdom?
Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.
Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
