Oldbury, England, located in the United Kingdom, presents a mixed picture for solar PV energy generation throughout the year. Situated in the Northern Temperate Zone, this location experiences significant seasonal variations in solar output.

Seasonal Performance

Summer stands out as the most productive season, with an impressive 5.27 kWh per day for each kilowatt of installed solar capacity. Spring follows closely, generating 4.42 kWh/day. However, the output drops considerably during autumn, producing only 2.14 kWh/day. Winter sees the lowest generation, with a mere 1.01 kWh/day.

These figures highlight that Oldbury's solar potential is heavily concentrated in the spring and summer months. From late March through September, solar panels in this location can be expected to perform reasonably well, making it an opportune time for energy generation and storage.

Panel Installation

For fixed panel installations in Oldbury, England, the ideal tilt angle to maximize year-round production is 44 degrees facing south. This angle is optimized to capture the most sunlight throughout the year, considering the location's latitude and seasonal sun paths.

Environmental Factors

Several environmental factors could potentially impact solar production in Oldbury:

1. Cloud cover: The UK is known for its frequent overcast conditions, which can significantly reduce solar output.
2. Rainfall: Oldbury experiences considerable rainfall throughout the year, which can affect panel efficiency.
3. Short winter days: Being in the Northern Temperate Zone, Oldbury has notably shorter days during winter, limiting solar generation potential.

Preventative Measures

To mitigate these challenges and ensure greater energy production, consider the following measures when installing solar panels:

• Use high-efficiency panels designed for low-light conditions
• Implement a robust cleaning schedule to combat the effects of rainfall and potential debris
• Consider incorporating solar tracking systems to maximize light capture, especially during shorter winter days
• Explore battery storage solutions to make better use of energy generated during peak production periods

While Oldbury may not be ideal for year-round solar energy production, with proper planning and technology, it can still be a viable location for solar PV installations, particularly capitalizing on the strong performance during spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 756 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

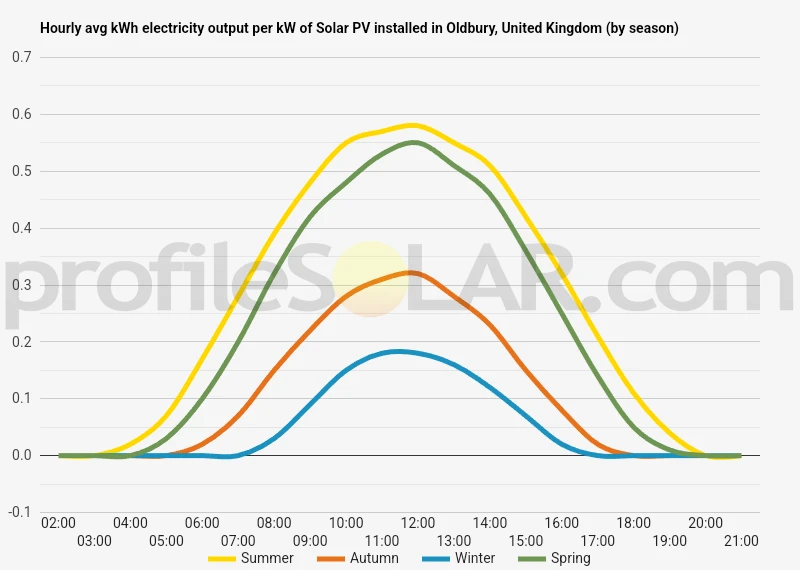

Solar output per kW of installed solar PV by season in Oldbury

Seasonal solar PV output for Latitude: 52.4994, Longitude: -2.0188 (Oldbury, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 5.27kWh/day in Summer.

Average 2.14kWh/day in Autumn.

Average 1.01kWh/day in Winter.

Average 4.42kWh/day in Spring.

Ideally tilt fixed solar panels 44° South in Oldbury, United Kingdom

To maximize your solar PV system's energy output in Oldbury, United Kingdom (Lat/Long 52.4994, -2.0188) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 52.4994, Longitude: -2.0188, the ideal angle to tilt panels is 44° South

Seasonally adjusted solar panel tilt angles for Oldbury, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Oldbury, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Oldbury, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Oldbury, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Oldbury, United Kingdom

The area around Oldbury, United Kingdom, is characterized by gently rolling terrain typical of the West Midlands region. Situated in the Black Country, Oldbury's landscape is a mix of urban development and remnants of its industrial past, interspersed with pockets of green spaces.

The topography of Oldbury and its surroundings is relatively low-lying, with elevations generally ranging from about 100 to 200 meters above sea level. The land gradually rises towards the west, where you'll find the Clent Hills, a series of small peaks that offer a more pronounced change in elevation. To the east, the terrain becomes flatter as it approaches the River Tame and the broader Birmingham area.

In terms of suitability for large-scale solar PV installations, the areas to the west and southwest of Oldbury might be more appropriate. These regions, including parts of Dudley and Halesowen, have more open spaces and slightly higher elevations, which could provide better exposure to sunlight throughout the day. The gently sloping hillsides in these areas could also be advantageous for solar panel placement, allowing for optimal angling towards the sun.

However, it's important to note that the West Midlands is a densely populated region, and finding large, uninterrupted tracts of land for solar farms may be challenging. Any potential sites would need to be carefully evaluated for their impact on local communities and the environment. Areas that were previously used for industrial purposes, such as former mining sites or brownfield land, could be particularly suitable for solar PV development, as they often have the necessary infrastructure and minimal conflict with current land use.

While the immediate vicinity of Oldbury might have limited options due to urban development, expanding the search radius to include more rural areas in South Staffordshire or northern Worcestershire could yield more promising locations for large-scale solar PV installations. These areas tend to have more agricultural land and open spaces that could potentially be repurposed for renewable energy production.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
