Solar Energy Potential in Oxshott, England, United Kingdom

Oxshott, England, located in the United Kingdom at coordinates 51.3305, -0.3634, presents a moderate opportunity for solar energy generation, with significant seasonal variations throughout the year. This Northern Temperate Zone location experiences typical British weather patterns that affect solar production capabilities.

Seasonal Solar Production

The solar energy generation potential in Oxshott varies considerably across the four seasons:

• Summer: 5.08 kWh per day per kW installed capacity
• Spring: 4.29 kWh per day per kW installed capacity
• Autumn: 2.25 kWh per day per kW installed capacity
• Winter: 1.03 kWh per day per kW installed capacity

This pattern shows that summer and spring are the most productive seasons for solar energy generation in Oxshott, England, with nearly five times more energy produced in summer compared to winter. The substantial drop in winter production is typical for locations at this northerly latitude.

Optimal Installation Angle

For fixed solar panel installations in Oxshott, England, the ideal tilt angle to maximize year-round energy production is 44 degrees facing South. This angle has been calculated by analyzing the daily solar elevation patterns at this specific latitude, weighted by the potential solar energy available throughout the year.

Environmental and Weather Considerations

Several local factors may impact solar production in Oxshott: Cloud cover is perhaps the most significant limitation, as the UK is known for its frequently overcast conditions, particularly during autumn and winter. This explains the dramatic seasonal differences in production values. Rainfall and humidity can also reduce panel efficiency by creating dirt buildup over time. Regular cleaning maintenance is recommended, especially after extended dry periods when dust accumulation is more likely. Tree coverage could be a concern in Oxshott, England, which is known for its wooded surroundings. Careful site assessment before installation is essential to avoid shading issues, particularly as the sun's path changes throughout the year.

Preventative Measures

To maximize solar production in Oxshott despite these challenges: Install panels at the recommended 44-degree tilt facing south to optimize year-round generation. Consider micro-inverters or power optimizers if partial shading is unavoidable, as these technologies help minimize the impact of shade on overall system performance. Implement a regular cleaning schedule, particularly before the high-production spring and summer months. Use high-efficiency panels that perform better in diffuse light conditions common during the UK's overcast days. Consider slight over-sizing of the system to compensate for the very low winter production if year-round self-sufficiency is a goal.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

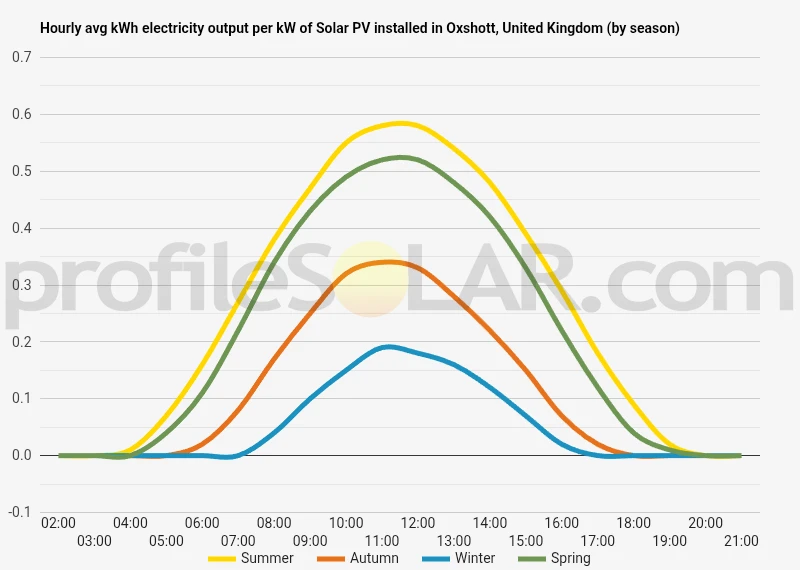

Solar output per kW of installed solar PV by season in Oxshott

Seasonal solar PV output for Latitude: 51.3305, Longitude: -0.3634 (Oxshott, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Oxshott, United Kingdom

To maximize your solar PV system's energy output in Oxshott, United Kingdom (Lat/Long 51.3305, -0.3634) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Oxshott, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Oxshott, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	54° South in Autumn	65° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Oxshott, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Oxshott, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Oxshott, United Kingdom

The topography around Oxshott in Surrey is characterized by gently undulating terrain typical of the North Downs region. Situated approximately 18 miles southwest of central London, Oxshott sits at an elevation of about 50-70 meters above sea level. The landscape features a mix of wooded areas and clearings, with Oxshott Heath and Oxshott Woods forming significant natural features to the north and east of the settlement. The area's terrain gradually rises toward the north, where the North Downs begin their characteristic chalk ridge formation. To the south and southwest, the land tends to be slightly flatter as it transitions toward the Thames Valley. This varied topography created a historically attractive setting for wealthy Londoners seeking country estates, resulting in the development of many large properties with substantial grounds.

Soil and Surface Conditions

The underlying geology around Oxshott consists primarily of sandy soils atop clay and chalk bedrock. This combination has influenced both the natural vegetation and land use patterns. The sandy soils support the heathland and woodland ecosystems that dominate undeveloped areas, while also providing reasonably stable ground for construction and development. Several small streams and drainage channels cross the area, flowing generally northward toward the River Mole, which passes several kilometers to the west of Oxshott. These waterways have carved subtle valleys into the landscape over time, creating minor variations in the otherwise gentle terrain.

Potential Areas for Solar Development

For large-scale solar photovoltaic installations, the most suitable nearby areas would be found in the relatively flat agricultural lands to the south and southwest of Oxshott, particularly in the direction of Leatherhead and Cobham. These areas offer several advantages for solar development: The flatter terrain requires less grading and preparation, reducing installation costs and environmental disruption. Agricultural fields typically have fewer trees and obstacles that might cast shadows across solar arrays. The existing road infrastructure supporting these farming areas could facilitate construction access and ongoing maintenance. However, potential solar development faces significant constraints in this region. The Green Belt designation covering much of the surrounding countryside imposes strict limitations on development. Additionally, the high property values and predominantly residential and recreational land use patterns (including several golf courses) create economic barriers to acquiring suitable land parcels. The most practical opportunities might exist on the rooftops of larger commercial and industrial buildings in nearby business parks, particularly those found closer to the M25 motorway corridor. These locations could support medium-scale solar installations without requiring new land development, though they wouldn't constitute truly large-scale solar farms. Any substantial solar development would need to carefully consider visual impact, as the rolling nature of the landscape means installations could be visible from multiple vantage points, potentially affecting the character of this affluent suburban area.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
