Pitlochry, located in the Scottish Highlands at latitude 56.6963° and longitude -3.7188°, presents a challenging environment for year-round solar energy generation. The location's position in the Northern Temperate Zone results in significant seasonal variation in solar output, making it less than ideal for consistent solar PV performance throughout the year.

Seasonal Solar Performance

The solar energy output at Pitlochry varies dramatically across the seasons. Summer provides the strongest performance with 4.95 kWh per day per kW of installed capacity, followed by spring at 3.85 kWh per day per kW. However, the location faces considerable challenges during autumn and winter months, producing only 1.64 kWh and 0.70 kWh per day per kW respectively. The most productive period for solar generation at this location runs from late spring through early autumn, with summer being the clear peak season. Winter months present significant challenges with minimal solar output, reflecting the harsh reality of Scotland's northern latitude and seasonal light patterns. For optimal year-round energy capture, solar panels at Pitlochry should be installed at a fixed tilt angle of 48 degrees facing south. This angle maximizes total annual production by accounting for the sun's varying elevation throughout the year and the location's specific latitude.

Local Factors Affecting Solar Production

Several environmental and weather factors at Pitlochry can significantly impact solar energy generation:

• Highland Weather Patterns: The Scottish Highlands experience frequent cloud cover, mist, and fog, particularly during autumn and winter months
• Snow Accumulation: Winter snowfall can cover panels and block sunlight for extended periods
• High Rainfall: Scotland's wet climate, while not directly blocking sunlight, often coincides with overcast conditions
• Mountain Topography: Surrounding hills and mountains may create shading during low sun angles, particularly in winter

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Steeper Panel Angles: Installing panels at angles steeper than the calculated 48 degrees can help snow slide off more easily
• Strategic Positioning: Careful site selection to avoid shading from nearby hills, trees, or buildings, especially during winter months
• Anti-Reflective Coatings: Specialized panel coatings can improve performance during Scotland's frequent overcast conditions
• Regular Maintenance Schedule: More frequent cleaning and snow removal protocols during winter months
• Elevated Mounting: Higher mounting systems can reduce ground-level fog interference and improve air circulation around panels

While Pitlochry faces significant challenges for solar energy generation, particularly during the darker months, proper installation techniques and maintenance can help optimize the available solar resource during the more productive seasons.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

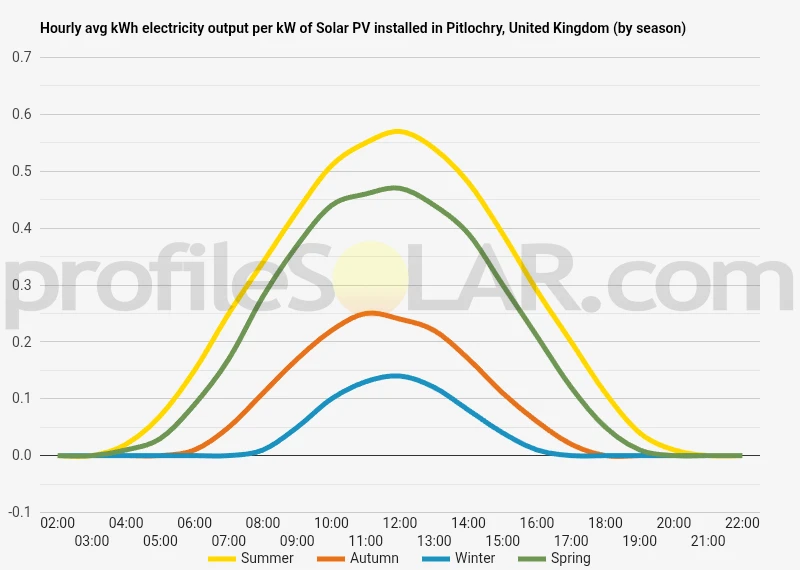

Solar output per kW of installed solar PV by season in Pitlochry

Seasonal solar PV output for Latitude: 56.6963, Longitude: -3.7188 (Pitlochry, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 48° South in Pitlochry, United Kingdom

To maximize your solar PV system's energy output in Pitlochry, United Kingdom (Lat/Long 56.6963, -3.7188) throughout the year, you should tilt your panels at an angle of 48° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pitlochry, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pitlochry, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 48° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
40° South in Summer	59° South in Autumn	70° South in Winter	49° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pitlochry, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pitlochry, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pitlochry, United Kingdom

Topographical Features of the Pitlochry Region

Pitlochry sits nestled within the dramatic landscape of the Scottish Highlands, positioned in the heart of Perth and Kinross at an elevation of approximately 150 metres above sea level. The town occupies a strategic location in the Tummel Valley, where the River Tummel flows eastward through a landscape characterised by rolling hills, ancient woodlands, and steep-sided valleys carved by glacial action thousands of years ago.

The surrounding terrain is dominated by a series of prominent hills and mountains that create a natural amphitheatre around the settlement. To the north, the landscape rises steadily toward Ben Vrackie, which reaches 841 metres and forms a distinctive pyramid-shaped peak visible from much of the valley floor. The southern approaches are guarded by the Craigower Hill and the broader mass of the Atholl Hills, while westward the land climbs toward the remote peaks of the central Highlands.

The valley floor itself is relatively narrow, constrained by the steep sides of the surrounding hills. Much of the immediate area around Pitlochry is covered by mixed woodland, including both native Scots pine and deciduous species, along with commercial forestry plantations that extend up the hillsides. The River Tummel has been significantly modified by hydroelectric development, creating a series of artificial lochs including Loch Faskally, which now forms an integral part of the local landscape.

Terrain Challenges for Solar Development

The mountainous character of the Pitlochry area presents significant challenges for large-scale solar photovoltaic installations. The steep gradients that characterise much of the region make construction difficult and expensive, while the dense woodland cover would require extensive clearance to create suitable sites. The narrow valley floors, while relatively flat, are often constrained by existing infrastructure, settlements, and the important agricultural land that remains in the area.

Shadow casting from the surrounding hills represents another major consideration, as the high ridgelines can significantly reduce the amount of direct sunlight reaching potential installation sites, particularly during winter months when the sun follows a low arc across the southern sky. The north-facing slopes that characterise much of the terrain are inherently unsuitable for solar energy generation due to their orientation away from the sun.

Optimal Locations for Solar Installations

Despite the challenging topography, several areas in the broader region show more promise for large-scale solar development. The most suitable locations would be found on the gentler southern-facing slopes at lower elevations, particularly where these have been cleared for agriculture or where existing forestry could be modified without significant environmental impact.

The area southeast of Pitlochry, toward Blairgowrie and the edge of the Highland Boundary Fault, offers more favourable terrain with lower hills and broader valleys. This transition zone between the Highlands and the Central Belt features more gradual slopes and larger areas of open farmland that could potentially accommodate solar arrays without the extreme engineering challenges present in the steeper Highland terrain.

Further east, the Strathtay area presents opportunities on south-facing hillsides that are less severely graded than those immediately around Pitlochry. These locations benefit from being at lower elevations while still maintaining good southern exposure, and some areas have already been modified by agricultural use, reducing the environmental constraints associated with woodland clearance.

The key to successful solar development in this region would be identifying sites that balance acceptable gradients, southern orientation, minimal shading from surrounding topography, and reasonable access for construction and maintenance activities. Such locations are likely to be found at some distance from Pitlochry itself, in the transitional landscapes where the dramatic Highland topography begins to give way to the gentler terrain of lowland Perthshire.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
