Rayleigh, England, United Kingdom, located in the Northern Temperate Zone, offers varying potential for solar PV energy generation throughout the year. This Essex town experiences significant seasonal fluctuations in solar productivity that prospective solar panel owners should consider.

Seasonal Solar Production

Solar panels in Rayleigh demonstrate strong performance during summer months, generating approximately 5.08kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 4.34kWh/day. Autumn sees a considerable drop to 2.22kWh/day, while winter production falls dramatically to just 0.99kWh/day per kilowatt installed.

This pattern creates a clear "solar calendar" for Rayleigh residents. The six-month period from April through September offers substantially better solar generation than the October to March period. Nearly 70% of the annual solar energy is produced during the brighter half of the year.

Optimal Panel Installation

For fixed solar panel installations in Rayleigh, England, the ideal tilt angle to maximize year-round energy production is 44 degrees facing South. This specific angle has been calculated to optimize solar capture across all seasons, accounting for Rayleigh's latitude and the Earth's elliptical orbit.

Challenges and Mitigation Strategies

Several environmental factors can impact solar production in Rayleigh:

• Cloud cover and rainfall: Essex experiences considerable cloud cover, particularly during winter months, which significantly reduces solar efficiency. Installing higher-efficiency panels can partially offset these losses.
• Coastal proximity effects: Rayleigh's relative proximity to the Thames Estuary and North Sea can mean increased humidity and salt spray. Using marine-grade mounting hardware and panels with appropriate IP ratings can prevent corrosion issues.
• Air pollution: While not extreme, particulate matter from the nearby London metropolitan area can accumulate on panels, reducing efficiency by 4-5%. Installing an automated cleaning system or scheduling regular manual cleaning can mitigate this issue.
• Shading from deciduous trees: Leaf growth in spring and summer can create new shading issues absent in winter. A thorough shade analysis across seasons is recommended before installation.

Despite these challenges, Rayleigh's solar potential remains quite good by UK standards. With proper installation techniques and maintenance, solar PV systems can provide meaningful energy production, especially when sized to account for the significant winter production drop.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 754 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

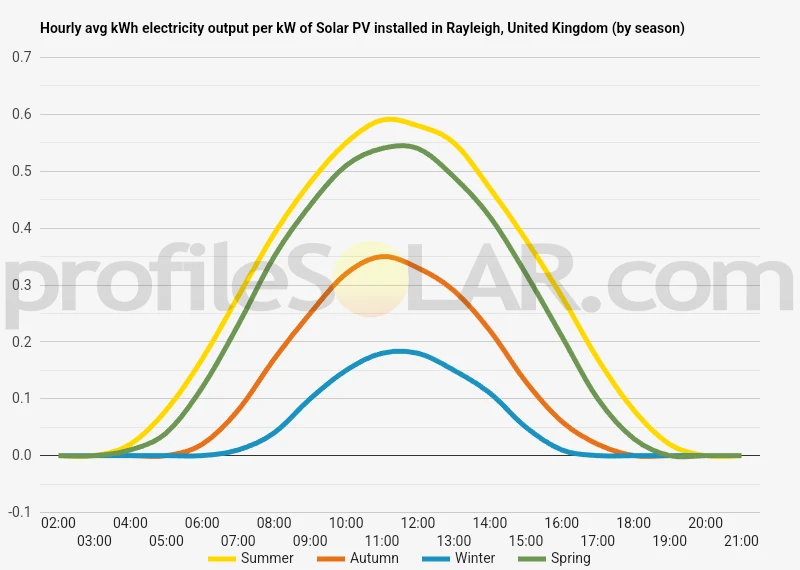

Solar output per kW of installed solar PV by season in Rayleigh

Seasonal solar PV output for Latitude: 51.5876, Longitude: 0.6048 (Rayleigh, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Rayleigh, United Kingdom

To maximize your solar PV system's energy output in Rayleigh, United Kingdom (Lat/Long 51.5876, 0.6048) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rayleigh, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rayleigh, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	55° South in Autumn	65° South in Winter	44° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rayleigh, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rayleigh, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rayleigh, United Kingdom

Rayleigh, situated in Essex, England, presents a gently undulating landscape typical of the southeast of England. The town itself sits on a hill, with elevations reaching around 75 meters above sea level at its highest points. This modest hill forms part of a ridge that runs roughly east to west through southern Essex. From these higher positions, the land gradually slopes downward toward the north and more dramatically toward the south, where it eventually meets the Thames Estuary. The surrounding countryside features a patchwork of agricultural fields, small woodlands, and suburban developments. To the south of Rayleigh, the terrain descends toward the coastal plains around Southend-on-Sea and the Thames Estuary. This southern area is characterized by flatter, low-lying land with some marshland near the coast. To the north and west, the landscape continues its gentle rolling pattern, forming what might be described as a softly wrinkled tablecloth of low hills and shallow valleys.

Potential Areas for Solar PV Development

The topographical characteristics of the region surrounding Rayleigh offer several promising locations for large-scale solar photovoltaic installations. The most suitable areas would generally be found on the south-facing slopes of the gentle hills, particularly those to the north of Rayleigh where the land rises slightly. These south-facing inclines receive more direct sunlight throughout the day, optimizing potential energy generation. The relatively flat agricultural lands to the south and southeast of Rayleigh, extending toward Rochford and beyond, present another opportunity. These areas benefit from minimal shadowing from topographical features and offer expansive open spaces that could accommodate large solar arrays. The flat terrain would also simplify construction and installation processes, potentially reducing development costs. Areas to avoid would include the more densely wooded sections, particularly in the northwest, as well as the marshy lowlands near the coast which may face flooding risks or have protected status due to their ecological importance. Additionally, the more densely populated sections immediately surrounding Rayleigh town center would be impractical for large-scale development. The gently rolling landscape does mean that careful site selection is necessary to avoid localized shadowing effects, particularly during winter months when the sun is lower in the sky. However, the modest nature of these undulations means that with proper planning, many locations could prove viable for solar energy production.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.

Helping you assess viability of solar PV for your site

Calculate Your Optimal Solar Panel Tilt Angle: A Comprehensive Guide

Enhance your solar panel's performance with our in-depth guide. Determine the best tilt angle using hard data, debunk common misunderstandings, and gain insight into how your specific location affects solar energy production.
