Solar PV Analysis of Ryton, United Kingdom
Ryton, England, located in the United Kingdom, presents a mixed picture for solar energy generation throughout the year. Situated in the Northern Temperate Zone, this location experiences significant seasonal variations in solar output.
Seasonal Performance
Summer proves to be the most productive season for solar energy in Ryton, England, with an average daily output of 4.99 kWh per kW of installed solar capacity. Spring follows closely behind, generating 4.28 kWh per day. However, autumn and winter show a marked decline in production, with 1.94 kWh and 0.86 kWh per day, respectively.
These figures highlight that the ideal times for solar energy generation in Ryton are during the spring and summer months, typically from April through September. During this period, longer daylight hours and higher sun angles contribute to increased solar panel efficiency.
Panel Optimization
To maximize year-round solar production in Ryton, England, fixed solar panels should be installed at a tilt angle of 46 degrees facing south. This optimal angle takes into account the location's latitude and the Earth's elliptical orbit, ensuring the best possible exposure to sunlight throughout the year.
Challenges and Solutions
Several factors can impede solar production in Ryton:
- Cloud cover: The UK is known for its cloudy weather, which can significantly reduce solar output. Using high-efficiency panels and incorporating energy storage systems can help mitigate this issue.
- Short winter days: With limited daylight during winter months, production drops dramatically. Implementing a hybrid system with wind energy or other renewable sources can provide a more consistent energy supply.
- Rain and snow: Frequent precipitation can reduce panel efficiency. Installing panels at the optimal angle helps with natural cleaning, while regular maintenance ensures optimal performance.
Despite these challenges, preventative measures such as using weather-resistant panels, regular cleaning, and implementing smart inverter technology can help maximize energy production in Ryton's variable climate.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in United Kingdom by location

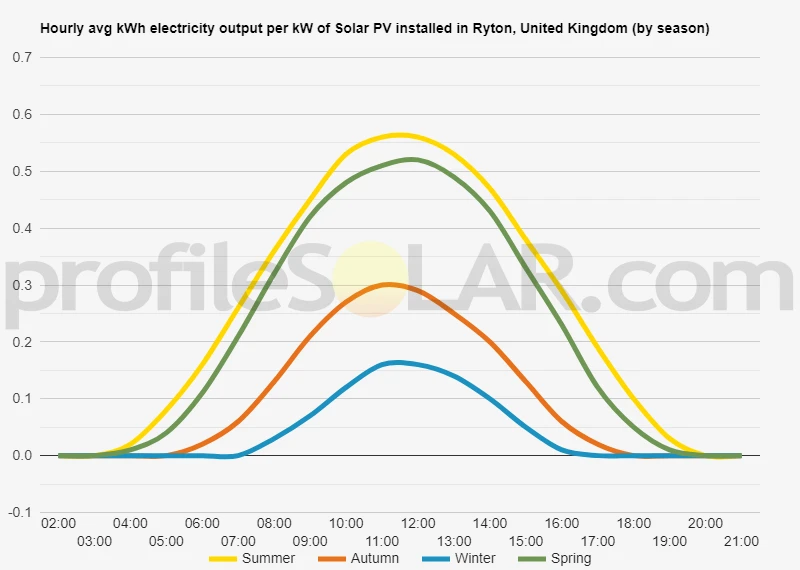

Solar output per kW of installed solar PV by season in Ryton
Seasonal solar PV output for Latitude: 54.9805, Longitude: -1.7655 (Ryton, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 46° South in Ryton, United Kingdom
To maximize your solar PV system's energy output in Ryton, United Kingdom (Lat/Long 54.9805, -1.7655) throughout the year, you should tilt your panels at an angle of 46° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Ryton, United Kingdom
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ryton, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 46° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 38° South in Summer | 58° South in Autumn | 68° South in Winter | 47° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Ryton, United Kingdom
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ryton, United Kingdom.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Ryton, United Kingdom
The area around Ryton, United Kingdom, is characterized by gently rolling countryside typical of the northeast of England. Located in Tyne and Wear, near the western edge of the Newcastle upon Tyne urban area, Ryton sits on elevated ground overlooking the Tyne Valley to the south.
The topography of the region is a mix of low hills, shallow valleys, and relatively flat areas. The land gradually rises from the River Tyne, which flows to the south of Ryton, towards the north and west. This creates a landscape of undulating fields and small woodlands, interspersed with scattered settlements and farmland.
To the north and west of Ryton, the terrain becomes slightly more pronounced, with higher hills and steeper valleys as you move towards the North Pennines Area of Outstanding Natural Beauty. However, the immediate surroundings of Ryton remain relatively gentle in terms of elevation changes.
Regarding areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, several factors need to be considered. Ideal locations for solar farms typically include flat or gently sloping land with good exposure to sunlight and minimal shading from trees or buildings. Based on the topography of the region, some potentially suitable areas might include:
- The more level agricultural lands to the east and southeast of Ryton, stretching towards the outskirts of Gateshead
- Open fields to the north and northeast of Ryton, where the terrain is less steep
- Gently sloping south-facing hillsides in the surrounding countryside, which could provide optimal sun exposure
However, it's important to note that the suitability of any specific site for solar PV would require detailed assessment, taking into account not only topography but also factors such as local planning regulations, grid connection availability, and environmental considerations. The relatively northern latitude of Ryton also means that careful planning would be needed to maximize solar energy capture throughout the year.
United Kingdom solar PV Stats as a country
United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United Kingdom?
Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.
Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
