Saffron Walden, England, located in the United Kingdom, presents a moderate opportunity for solar energy generation throughout the year. Situated in the Northern Temperate Zone, this location experiences significant seasonal variations in solar energy production.

Seasonal Solar Performance

Summer stands out as the most productive season, with an average daily output of 5.04 kWh per kW of installed solar capacity. Spring follows closely behind, generating 4.38 kWh/day. However, the colder months see a substantial drop in energy production, with autumn yielding 2.27 kWh/day and winter producing a mere 1.04 kWh/day.

The stark contrast between summer and winter production highlights the challenges of year-round solar energy generation in Saffron Walden. The long, sunny days of summer provide excellent conditions for solar power, while the short, often overcast days of winter significantly limit energy output.

Optimal Panel Installation

To maximize year-round solar energy production in Saffron Walden, England, fixed solar panels should be installed at a tilt angle of 44 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, balancing the low winter sun with the high summer sun.

Environmental and Weather Factors

Several factors can impact solar energy production in Saffron Walden:

1. Cloud cover: The UK is known for its frequent cloudy weather, which can significantly reduce solar panel efficiency.
2. Rain: While not directly impacting production, frequent rainfall can lead to dirt accumulation on panels, reducing their effectiveness.
3. Short winter days: The limited daylight hours during winter months naturally restrict energy production.

Preventative Measures

To mitigate these challenges and enhance solar energy production, consider the following measures:

• Install high-efficiency panels designed to perform well in low-light conditions.
• Implement an automated cleaning system or schedule regular manual cleaning to combat dirt accumulation.
• Use microinverters or power optimizers to minimize the impact of partial shading on overall system performance.
• Consider a hybrid system combining solar with other renewable energy sources to ensure consistent power supply year-round.

While Saffron Walden may not be ideal for year-round solar energy production, proper system design and maintenance can still yield significant benefits, particularly during the spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

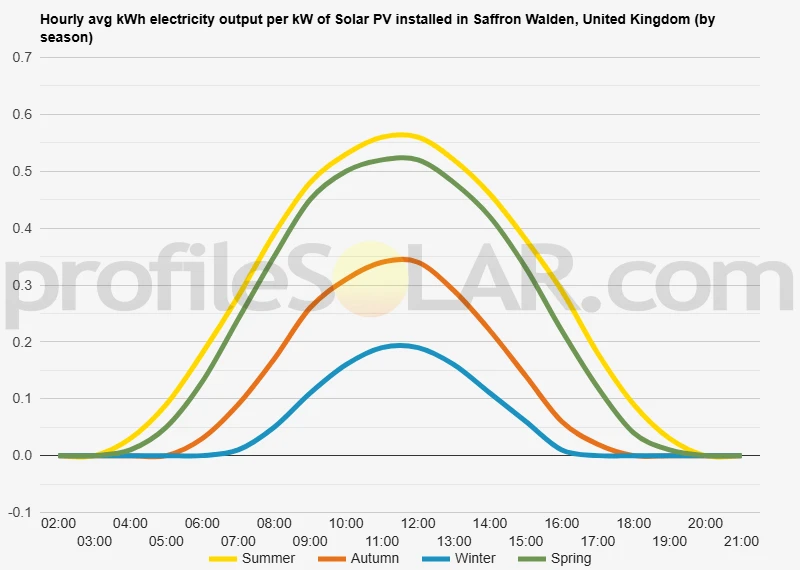

Solar output per kW of installed solar PV by season in Saffron Walden

Seasonal solar PV output for Latitude: 52.0346, Longitude: 0.1969 (Saffron Walden, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Saffron Walden, United Kingdom

To maximize your solar PV system's energy output in Saffron Walden, United Kingdom (Lat/Long 52.0346, 0.1969) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Saffron Walden, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Saffron Walden, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	55° South in Autumn	65° South in Winter	44° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Saffron Walden, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Saffron Walden, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Saffron Walden, United Kingdom

The topography around Saffron Walden, a picturesque market town in Essex, United Kingdom, is characterized by gently rolling countryside typical of the East Anglian region. Situated on a hill, the town itself sits at an elevation of about 50 meters above sea level. The surrounding landscape consists of undulating chalk hills, interspersed with shallow valleys and small streams. To the north and east of Saffron Walden, the terrain gradually flattens out towards the Cambridgeshire border, with expansive agricultural fields dominating the scenery. The land here is primarily used for farming, with a patchwork of arable fields and pastures creating a quintessential English rural landscape. To the south and west, the topography becomes slightly more varied, with the Chiltern Hills visible in the distance on clear days. This area features a mix of woodland patches, hedgerows, and open fields, creating a diverse and visually appealing environment.

Potential Areas for Large-Scale Solar PV

When considering areas near Saffron Walden that might be suitable for large-scale solar PV installations, several factors come into play. The ideal location would have relatively flat terrain, good sun exposure, and minimal impact on local communities or sensitive ecosystems. The agricultural lands to the north and east of Saffron Walden present the most promising opportunities for solar PV development. These areas offer several advantages: 1. The terrain is generally flatter, which simplifies installation and reduces costs associated with land preparation. 2. There are fewer obstructions to sunlight, such as tall buildings or dense forests, ensuring maximum solar exposure throughout the day. 3. The land is already being used for agricultural purposes, potentially allowing for dual-use scenarios where solar panels and crop production can coexist. 4. The region's lower population density means that large-scale installations would have less impact on residential areas. However, it's important to note that any solar PV development would need to carefully consider local planning regulations, environmental impact assessments, and community engagement. The historic and cultural significance of Saffron Walden and its surroundings would also play a role in determining suitable locations for such projects. While the area around Saffron Walden may not be as ideal for solar PV as some other parts of the UK with higher solar irradiance, the relatively open landscape and existing agricultural use make it a viable option for consideration, particularly as technology improves and the demand for renewable energy sources continues to grow.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
