Shaftesbury, England, located in the United Kingdom, presents a mixed picture for solar PV energy generation. Situated in the Northern Temperate Zone, this location experiences significant seasonal variations in solar energy production throughout the year.

Seasonal Solar Output

The solar energy output at Shaftesbury varies considerably across seasons. Summer is the most productive period, with an average daily output of 5.78 kWh per kW of installed solar capacity. Spring follows closely, generating 4.87 kWh/day. However, production drops significantly in autumn to 2.45 kWh/day, and reaches its lowest point in winter at just 1.07 kWh/day.

Optimal Times for Solar Generation

The most ideal times for solar energy production in Shaftesbury are from late spring through early autumn. During these months, longer daylight hours and higher sun angles contribute to increased solar panel efficiency. The peak generation period typically occurs around the summer solstice in June.

Panel Tilt Angle

For fixed panel installations in Shaftesbury, England, the ideal tilt angle to maximize year-round solar production is 43 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for the location's latitude and seasonal sun path variations.

Environmental and Weather Factors

Several factors can impact solar production in Shaftesbury:

1. Cloud cover: The UK is known for its cloudy weather, which can significantly reduce solar output.
2. Rainfall: Frequent rain can decrease panel efficiency, though it also helps keep panels clean.
3. Short winter days: The location's northern latitude results in very short days during winter, limiting solar production.

Preventative Measures

To mitigate these challenges and enhance solar energy production, consider the following measures:

• Use high-efficiency panels designed for low-light conditions
• Install a solar tracking system to maximize sun exposure
• Regularly clean and maintain panels to ensure optimal performance
• Consider adding battery storage to balance out seasonal variations in production

While Shaftesbury's location presents some challenges for year-round solar energy production, proper system design and maintenance can still make solar PV a viable renewable energy option for this area.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

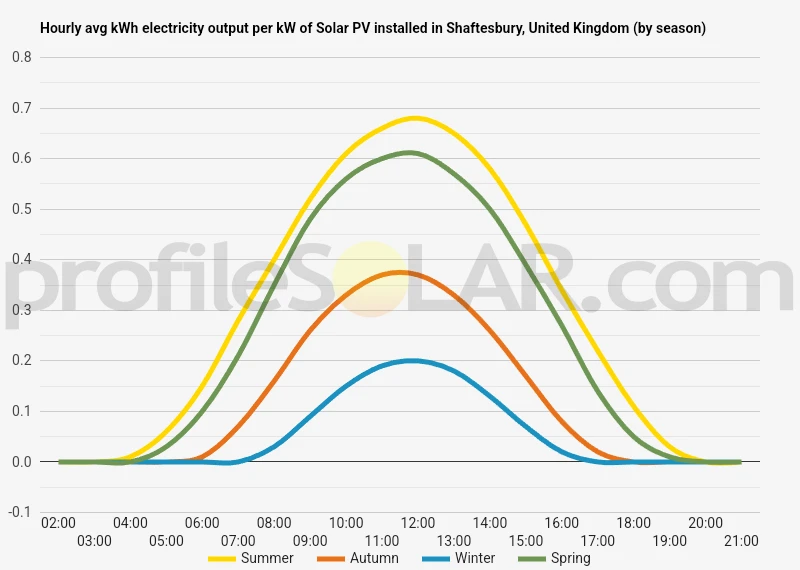

Solar output per kW of installed solar PV by season in Shaftesbury

Seasonal solar PV output for Latitude: 50.9973, Longitude: -2.0886 (Shaftesbury, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Shaftesbury, United Kingdom

To maximize your solar PV system's energy output in Shaftesbury, United Kingdom (Lat/Long 50.9973, -2.0886) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Shaftesbury, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Shaftesbury, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	54° South in Autumn	64° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Shaftesbury, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Shaftesbury, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Shaftesbury, United Kingdom

Shaftesbury, a small town in Dorset, England, is situated in an area characterized by rolling hills and picturesque countryside. The town itself sits atop a prominent hill, offering panoramic views of the surrounding landscape. This elevated position is one of Shaftesbury's most distinctive features, with the town center perched approximately 215 meters (705 feet) above sea level. The topography around Shaftesbury is primarily composed of chalk downland, a type of terrain typical of southern England. These chalk hills form part of a larger geological formation known as the North Dorset Downs. The landscape is characterized by gentle slopes, undulating fields, and scattered woodlands. To the north and east of Shaftesbury, the land gradually descends towards the Blackmore Vale, a wide, flat valley known for its rich agricultural land. To the south and west of Shaftesbury, the terrain becomes more varied, with a mix of hills and valleys. This area includes parts of the Cranborne Chase, an Area of Outstanding Natural Beauty (AONB) known for its diverse habitats, including ancient woodlands, chalk grasslands, and river valleys.

Potential Areas for Large-scale Solar PV

When considering areas near Shaftesbury that might be suitable for large-scale solar photovoltaic (PV) installations, several factors come into play. Ideal locations would have good sun exposure, relatively flat terrain, and minimal impact on sensitive landscapes or valuable agricultural land. The Blackmore Vale to the north and east of Shaftesbury could potentially offer suitable sites for solar PV installations. This area's flatter terrain and open fields might provide the necessary space and sun exposure for large-scale solar farms. However, it's important to note that this is prime agricultural land, so any development would need to be carefully balanced with food production needs. Some of the gently sloping hillsides to the south and west of Shaftesbury might also be considered for solar PV installations, particularly those facing south for maximum sun exposure. However, these areas would need to be carefully selected to avoid impacting the scenic beauty of the Cranborne Chase AONB. It's worth noting that any large-scale solar PV development in this area would require careful planning and consultation with local authorities and communities. The rural nature of the region and its scenic value mean that visual impact and land use changes would be important considerations. Additionally, the presence of protected landscapes and important wildlife habitats in the surrounding area would necessitate thorough environmental impact assessments before any development could proceed.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]
