Shenfield, England, United Kingdom, located in the Northern Temperate Zone, presents a moderate potential for solar PV energy generation throughout the year. The location's seasonal variations in solar output reflect typical patterns for its latitude, with significant fluctuations between summer and winter months.

Seasonal Solar Performance

Summer stands out as the peak season for solar energy production in Shenfield, England, with an impressive 5.08 kWh per day for each kW of installed solar capacity. Spring follows closely behind, generating 4.34 kWh/day. These warmer months, particularly from April to September, offer the most favorable conditions for solar energy harvesting.

Autumn sees a considerable drop in solar output, producing 2.22 kWh/day. Winter presents the greatest challenge, with a modest 0.99 kWh/day, reflecting the shorter daylight hours and lower sun angle typical of the UK's winter months.

Optimal Panel Installation

To maximize year-round solar energy production in Shenfield, England, fixed solar panels should be installed at a tilt angle of 44 degrees facing South. This orientation helps optimize energy capture across all seasons, balancing the higher summer sun with the lower winter sun angle.

Environmental Considerations

While Shenfield's climate is generally conducive to solar energy production, there are some factors that could impact efficiency:

• Cloud cover: The UK's notoriously cloudy weather can reduce solar panel efficiency, especially during autumn and winter.
• Rain and humidity: Frequent precipitation may lead to dirt accumulation on panels, potentially decreasing their performance.

To mitigate these issues, regular panel cleaning and the use of anti-soiling coatings can help maintain optimal performance. Additionally, installing microinverters or power optimizers can help manage partial shading issues caused by cloud cover, ensuring maximum energy harvest even under less-than-ideal conditions.

In conclusion, while Shenfield's location presents some challenges for year-round solar energy production, particularly during winter months, the substantial output during spring and summer makes it a viable option for renewable energy generation. With proper installation techniques and maintenance, solar PV systems can effectively contribute to the area's energy needs.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

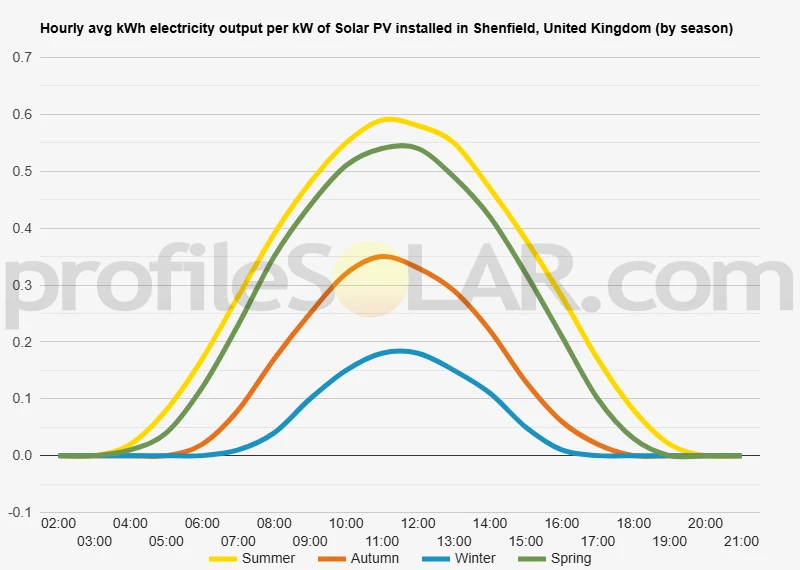

Solar output per kW of installed solar PV by season in Shenfield

Seasonal solar PV output for Latitude: 51.655, Longitude: 0.3475 (Shenfield, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Shenfield, United Kingdom

To maximize your solar PV system's energy output in Shenfield, United Kingdom (Lat/Long 51.655, 0.3475) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Shenfield, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Shenfield, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	55° South in Autumn	65° South in Winter	44° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Shenfield, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Shenfield, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Shenfield, United Kingdom

The area around Shenfield, United Kingdom, located at latitude 51.655 and longitude 0.3475, is characterized by gently rolling countryside typical of the Essex region. This part of southeastern England features a mix of low hills, shallow valleys, and relatively flat areas, creating a diverse but generally mild topography. Shenfield itself sits on slightly elevated ground, with the land gradually sloping down towards the south and east. The surrounding landscape is primarily composed of agricultural fields, interspersed with small woodlands and hedgerows. To the north and west, the terrain becomes more undulating, with a series of small hills and valleys forming a patchwork of fields and copses. The River Wid flows to the west of Shenfield, carving a shallow valley through the countryside. This river valley contributes to the area's varied topography, with gentle slopes leading down to the watercourse. To the south, the land becomes flatter as it approaches the Thames Estuary, though this transition occurs over several miles.

Potential Areas for Large-Scale Solar PV

When considering locations for large-scale solar photovoltaic (PV) installations near Shenfield, several factors come into play. The most suitable areas would typically be: South-facing slopes: The gently sloping fields to the north of Shenfield could provide ideal locations for solar farms. These areas benefit from maximum sun exposure throughout the day, enhancing the efficiency of solar panels. Flat agricultural land: The relatively flat farmland to the east and southeast of Shenfield offers potential for expansive solar installations. These areas provide ample space and minimal shading, which are crucial for large-scale solar projects. Brownfield sites: Any former industrial or commercial sites in the vicinity that are no longer in use could be repurposed for solar energy production. These areas often have the advantage of existing infrastructure and minimal impact on agricultural land. It's important to note that while the topography around Shenfield is generally favorable for solar PV installations, other factors such as local planning regulations, grid connection availability, and environmental considerations would also play a significant role in determining the most suitable locations for large-scale solar projects. Additionally, care should be taken to balance renewable energy development with the preservation of the area's rural character and agricultural productivity.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
