Solar PV Potential in Shotts, United Kingdom

Shotts, located in the United Kingdom at latitude 55.8148° North and longitude 3.8025° West, offers varying potential for solar photovoltaic (PV) energy generation throughout the year. This location in the Northern Temperate Zone experiences significant seasonal differences in solar energy production. The seasonal solar energy output at Shotts shows a clear pattern. Summer is the most productive season, generating approximately 5.06 kWh per day for each kilowatt of installed solar capacity. Spring follows as the second most productive season with 4.05 kWh/day. Solar production drops considerably in autumn to 1.71 kWh/day, while winter sees the lowest output at just 0.77 kWh/day per kilowatt installed.

Seasonal Variations and Optimal Installation

For fixed solar panel installations in Shotts, the ideal tilt angle to maximize year-round energy production is 47 degrees facing South. This specific angle has been calculated to optimize solar collection across all seasons, accounting for the Earth's elliptical orbit and the site's northern latitude. The substantial difference between summer and winter production rates indicates that Shotts is far from ideal for consistent year-round solar generation. However, from late spring through early autumn (approximately May through September), the location provides reasonably good solar potential that can make PV installations worthwhile.

Environmental and Weather Challenges

Several environmental factors can impact solar production at this location:

• Frequent cloud cover and precipitation common in Scotland can significantly reduce solar radiation reaching panels
• Winter snow accumulation may temporarily cover panels, though this coincides with already low production periods
• Potential for dust and pollen buildup during spring and summer months

To mitigate these challenges, solar installations in Shotts should incorporate:

• Self-cleaning panel technologies or regular maintenance schedules to address dust and pollen
• Slightly steeper panel angles than the optimal 47 degrees if winter production is prioritized, to help shed snow more effectively
• High-efficiency panels that perform better in diffuse light conditions common during cloudy periods
• Robust mounting systems to withstand occasional high winds in this region

While Shotts isn't ideal for year-round solar production due to its northern latitude and weather patterns, properly designed systems can still provide meaningful energy generation, particularly during the more productive months from April through September.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

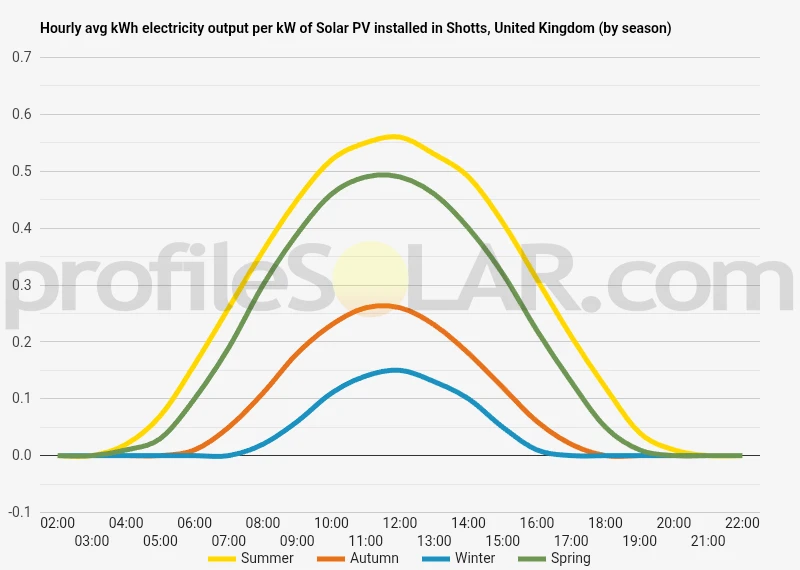

Solar output per kW of installed solar PV by season in Shotts

Seasonal solar PV output for Latitude: 55.8148, Longitude: -3.8025 (Shotts, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 47° South in Shotts, United Kingdom

To maximize your solar PV system's energy output in Shotts, United Kingdom (Lat/Long 55.8148, -3.8025) throughout the year, you should tilt your panels at an angle of 47° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Shotts, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Shotts, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 47° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
39° South in Summer	58° South in Autumn	69° South in Winter	48° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Shotts, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Shotts, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Shotts, United Kingdom

The topography around Shotts, United Kingdom, is characterized by gently rolling hills and plateaus typical of central Scotland. Situated in North Lanarkshire, approximately 40 kilometers east of Glasgow, Shotts sits at an elevation of roughly 200-250 meters above sea level. The landscape features a mixture of upland moors, agricultural fields, and scattered woodland areas, creating a varied terrain that transitions between the Central Lowlands and the Southern Uplands of Scotland. The area surrounding Shotts displays the effects of both glacial activity and human intervention through centuries of mining and agricultural use. The land rises gradually toward the south and east, with several modest hills and shallow valleys created by small rivers and streams that crisscross the region. This undulating landscape is part of the watershed between the Clyde and Forth river systems, with drainage patterns reflecting this topographical divide.

Potential Solar PV Development Areas

For large-scale solar photovoltaic development, several nearby areas present favorable conditions based on topographical considerations. South-facing slopes in the vicinity of Shotts offer natural advantages for solar collection. The gently sloping terrain to the south of Shotts, extending toward Carluke and Lanark, provides good exposure to the sun's path throughout the day while minimizing shadowing effects that can reduce solar panel efficiency. Former industrial and mining sites around Shotts represent particularly suitable locations for solar development. These brownfield areas often feature cleared, relatively level ground with minimal ecological sensitivity and reduced agricultural value. The reclaimed opencast mining sites to the east and southeast of Shotts present large contiguous areas where solar arrays could be installed with minimal additional land preparation. The slightly elevated plateaus to the northeast of Shotts, extending toward Bathgate and Armadale, also offer potential for solar development. These areas combine reasonable solar exposure with proximity to existing electrical infrastructure, which reduces connection costs for new solar installations. The topography in these locations is sufficiently level to minimize construction challenges while providing adequate drainage to prevent water accumulation around solar equipment. Agricultural areas with poorer quality soils, particularly those on south-facing aspects around the periphery of Shotts, could also accommodate solar developments while minimizing impact on prime farmland. The undulating nature of these lands can actually be advantageous when panels are arranged to follow the natural contours, potentially increasing overall energy capture compared to completely flat installations. The landscape around Shotts reflects the broader Central Belt of Scotland's characteristics - neither mountainous nor completely flat, but rather a middle ground that presents both challenges and opportunities for renewable energy development. While Scotland's northern latitude does affect solar potential compared to more southerly regions, the topographical features around Shotts can be leveraged to maximize the effectiveness of large-scale solar PV installations.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
