Sutton Coldfield, England, located in the United Kingdom, presents a mixed scenario for solar PV energy generation. Situated in the Northern Temperate Zone, this location experiences significant seasonal variations in solar energy production throughout the year.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive daily output of 5.09 kWh per kW of installed solar capacity. Spring follows closely, generating 4.22 kWh/day. However, the performance drops considerably during autumn, with only 2.18 kWh/day, and reaches its lowest point in winter, producing a mere 1.03 kWh/day.

These figures highlight the substantial difference between the peak and trough seasons, with summer generating nearly five times more energy than winter. This variance is typical for locations in higher latitudes of the Northern Hemisphere, where daylight hours and sun angle change dramatically throughout the year.

Optimal Panel Installation

To maximize year-round solar energy production in Sutton Coldfield, England, fixed solar panels should be installed at a 45-degree angle facing south. This tilt angle is calculated to capture the most sunlight across all seasons, taking into account the location's latitude and the Earth's elliptical orbit.

Environmental and Weather Factors

Several factors could potentially impact solar energy production in Sutton Coldfield:

1. Cloud cover: The UK is known for its cloudy weather, which can significantly reduce solar panel efficiency.
2. Rainfall: Frequent rain can temporarily decrease panel output, although it helps keep panels clean.
3. Short winter days: The limited daylight hours during winter months contribute to the low energy production in this season.

Preventative Measures

To mitigate these challenges and enhance solar energy production, consider the following measures:

• Use high-efficiency panels designed to perform well in low-light conditions
• Implement a solar tracking system to maximize exposure to available sunlight
• Regularly clean and maintain panels to ensure optimal performance
• Consider battery storage to make better use of energy generated during peak production periods

While Sutton Coldfield may not be ideal for year-round solar energy production due to its seasonal variations and weather patterns, implementing these strategies can help maximize the potential of solar PV systems in this location.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

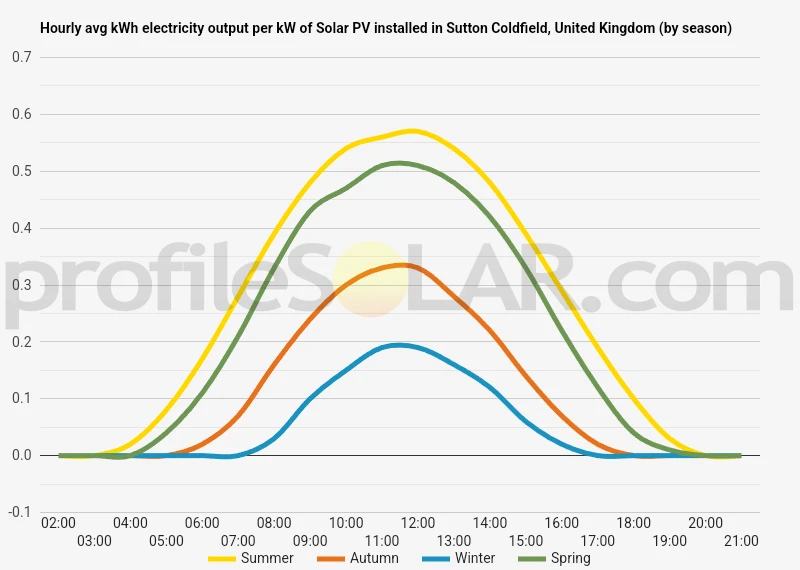

Solar output per kW of installed solar PV by season in Sutton Coldfield

Seasonal solar PV output for Latitude: 52.5927, Longitude: -1.8084 (Sutton Coldfield, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 45° South in Sutton Coldfield, United Kingdom

To maximize your solar PV system's energy output in Sutton Coldfield, United Kingdom (Lat/Long 52.5927, -1.8084) throughout the year, you should tilt your panels at an angle of 45° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Sutton Coldfield, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sutton Coldfield, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 45° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
36° South in Summer	56° South in Autumn	66° South in Winter	44° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Sutton Coldfield, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sutton Coldfield, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Sutton Coldfield, United Kingdom

Sutton Coldfield, located in the West Midlands region of England, is characterized by a diverse topography that reflects its position on the edge of the Birmingham Plateau. The area around Sutton Coldfield features a mix of gently rolling hills, shallow valleys, and some flatter areas, creating a varied landscape that transitions from urban to rural settings. To the north and east of Sutton Coldfield, the land gradually rises, forming part of the Midlands Plateau. This elevated area includes Sutton Park, a large nature reserve with a mix of heathland, wetlands, and woodland. The park's undulating terrain provides a natural buffer between the town and the surrounding countryside. Moving south and west from Sutton Coldfield, the landscape becomes more urbanized as it approaches Birmingham. Here, the topography is generally flatter, with some gentle slopes and occasional small hills. This area is more densely populated and developed, with a mix of residential, commercial, and industrial zones.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. Ideally, solar farms require relatively flat or gently sloping land with good exposure to sunlight and minimal shading from trees or buildings. The areas to the east and northeast of Sutton Coldfield, extending towards Lichfield and Tamworth, offer promising potential for solar PV development. This region features more open, agricultural land with fewer urban constraints. The gently rolling countryside in this direction provides opportunities for solar farms that can be integrated into the existing rural landscape. Another area with potential for solar PV development lies to the south and southeast of Sutton Coldfield, in the less densely populated zones between the town and the outskirts of Birmingham. While some of this land may be designated for future urban expansion, there could be opportunities for interim use as solar farms or for integrating solar installations into new developments. It's important to note that any large-scale solar PV projects would need to consider various factors beyond topography, including local planning regulations, grid connection availability, and environmental impact assessments. The proximity to urban areas in the West Midlands could be advantageous for connecting to existing electrical infrastructure, potentially making these sites more viable for solar energy development.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
