Treorchy, United Kingdom, situated in the Rhondda Valley in South Wales, presents a mixed scenario for solar PV energy generation. Located in the Northern Temperate Zone, this location experiences significant seasonal variations in solar electricity production throughout the year.

Seasonal Solar Production

Solar panels in Treorchy produce varying amounts of electricity depending on the season. During summer, production reaches its peak at 5.36kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 4.46kWh/day per installed kilowatt. Autumn sees a significant decrease to 2.24kWh/day, while winter production drops dramatically to just 0.99kWh/day per kilowatt of installed capacity.

This pattern shows that Treorchy's solar potential is heavily concentrated in the spring and summer months, with approximately 70% of annual production occurring during these seasons. The substantial difference between summer and winter production (over 5 times more energy in summer) highlights the seasonal nature of solar generation at this latitude.

Optimal Panel Installation

For a fixed panel installation at this location, the ideal angle to maximize year-round solar production is 44 degrees tilted toward the South. This specific angle has been calculated to optimize annual energy harvest considering Treorchy's geographical position and seasonal solar patterns.

Environmental and Weather Factors

Several factors may impact solar production in Treorchy:

• Rainfall and cloud cover: The Welsh valleys experience significant precipitation and cloudy conditions throughout the year, particularly in autumn and winter, which can reduce solar efficiency.
• Valley location: Treorchy's position within the Rhondda Valley means surrounding hills may create shading during early morning and late afternoon, particularly in winter when the sun is lower in the sky.
• Air pollution: While not as significant as in large urban areas, local coal mining heritage may still contribute to particulate matter in the air that can marginally reduce panel efficiency.

Preventative Measures

To maximize solar production despite these challenges, several installation strategies are recommended:

• Careful site assessment to avoid any shading from surrounding hills, trees, or buildings, particularly for morning and evening sun
• Installation of panels with high efficiency in diffuse light conditions, which perform better during cloudy Welsh days
• Regular cleaning schedule to remove accumulated dust, pollen, and bird droppings, which is especially important in rural valley locations
• Consider slight adjustments to the standard 44-degree tilt if the installation site has specific shading issues from the valley topography

While Treorchy may not offer ideal year-round solar conditions compared to sunnier regions, proper installation techniques can still make solar PV a viable renewable energy option, especially when taking advantage of the productive spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

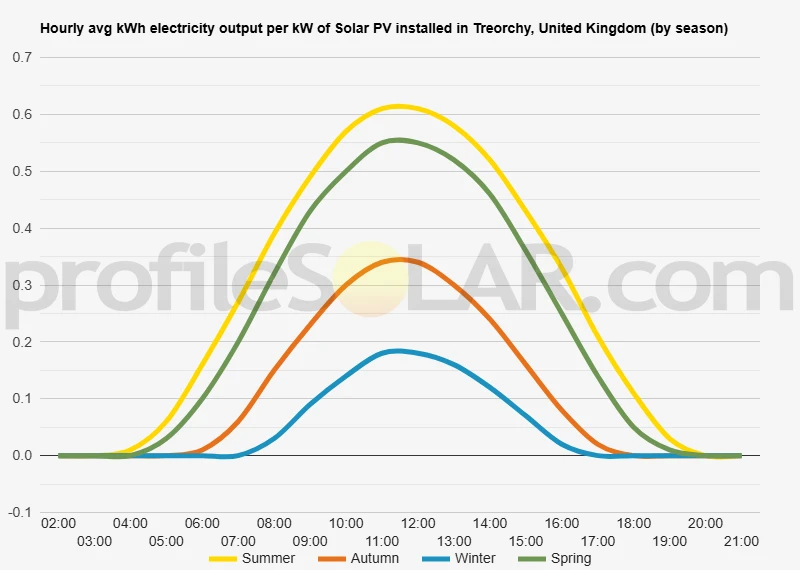

Solar output per kW of installed solar PV by season in Treorchy

Seasonal solar PV output for Latitude: 51.6693, Longitude: -3.5281 (Treorchy, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Treorchy, United Kingdom

To maximize your solar PV system's energy output in Treorchy, United Kingdom (Lat/Long 51.6693, -3.5281) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Treorchy, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Treorchy, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	55° South in Autumn	65° South in Winter	44° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Treorchy, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Treorchy, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Treorchy, United Kingdom

Treorchy is nestled within the Rhondda Valley in South Wales, United Kingdom. The topography of this area is characterized by steep-sided valleys carved through the South Wales Coalfield plateau. The town itself sits at an elevation of approximately 150 meters above sea level, with surrounding hills rising steeply to heights of 500-600 meters.

Valley Setting

Treorchy is situated in the Rhondda Fawr, one of the two main valleys that make up the Rhondda Valley system. This narrow valley runs roughly north-south, with the town spreading across the valley floor and partially up the eastern and western slopes. The River Rhondda flows through the valley bottom, with the urban development concentrated along this relatively flat corridor. The valley sides rise steeply on both the east and west, creating a somewhat enclosed feeling within the town. These slopes are typically inclined at angles between 15-30 degrees, transitioning to the higher moorland plateaus above. The valley orientation means that east-facing and west-facing slopes receive different amounts of solar radiation throughout the day.

Surrounding Uplands

Beyond the immediate valley sides, the landscape opens up to more expansive upland plateaus. To the west lies Mynydd Tynewydd and to the east is Mynydd Maerdy, both reaching elevations around 500-600 meters. These upland areas feature gentler gradients and more open aspects than the steep valley sides. The higher terrain consists primarily of moorland vegetation with limited tree cover, offering unobstructed exposure to the sky. The plateaus generally have a rolling character rather than being perfectly flat, with occasional steeper sections where streams have cut small tributary valleys.

Potential for Solar PV Development

When considering areas nearby that would be most suited to large-scale solar PV development, several factors must be taken into account beyond just topography, including grid connection opportunities, environmental designations, and land ownership. The upland plateau areas offer the most promising topographical conditions for solar PV development. Specifically, south-facing gentle slopes on the plateau edges would provide optimal conditions for solar generation. Areas such as parts of Mynydd Tynewydd to the west and sections of Mynydd Maerdy to the east that have southerly aspects would be particularly suitable. These upland locations benefit from reduced shadowing effects compared to the valley floor and lower slopes, where surrounding terrain can cast shadows during significant portions of the day, especially in winter months. The more exposed nature of the plateaus also typically results in less cloud formation than can occur in the valley bottom.

Topographical Constraints

The steep valley sides present significant challenges for large-scale solar development due to their gradient and often northerly aspects. Installation and maintenance would be difficult on slopes exceeding 15 degrees, and the effectiveness of panels would be compromised on north-facing sections. The valley floor, while relatively flat, has limited suitable areas due to existing development and the narrow width of the valley at Treorchy. Additionally, the surrounding hills can reduce direct sunlight reaching the valley bottom, particularly during winter months when the sun angle is lower. Areas of particular topographical challenge include the steepest sections of the valley sides directly east and west of Treorchy town center, and north-facing slopes throughout the region.

Broader Context

Looking beyond the immediate vicinity of Treorchy, the wider South Wales uplands offer extensive areas of potentially suitable terrain for solar development. Moving south toward more open landscapes where the valleys widen, there may be additional opportunities on gently sloping terrain with favorable aspects. The topography of this region has been significantly shaped by both natural processes and human activity, particularly coal mining, which has left a legacy of modified landscapes that in some cases might be repurposed for renewable energy generation.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
