Tring, England, United Kingdom presents a moderately suitable location for solar photovoltaic (PV) energy generation, though with significant seasonal variations typical of the Northern Temperate Zone. The location experiences considerable differences in solar output throughout the year, making it less than ideal compared to sunnier climates but still viable for renewable energy production.

Seasonal Solar Performance

Summer represents the peak solar generation period at Tring, England, with panels producing 5.07 kWh per day per kW of installed capacity. This is more than four times the winter output, making summer the most productive season for solar energy harvesting. Spring offers strong solar generation potential with 4.28 kWh per day per kW, making it the second-best season for solar production. This period benefits from increasing daylight hours and improving sun angles as the year progresses toward summer. Autumn sees a notable decline in solar output to 2.25 kWh per day per kW as the sun's angle decreases and weather conditions become less favorable. Winter presents the greatest challenge for solar generation, dropping to just 1.03 kWh per day per kW of installed capacity.

Optimal Panel Configuration

For maximum year-round solar production at Tring, England, fixed solar panels should be tilted at 44 degrees facing south. This angle is calculated to optimize total annual energy capture by accounting for the sun's varying elevation throughout the seasons and weighting these angles against actual solar irradiance data.

Local Factors Affecting Solar Production

Several environmental and weather factors at Tring can significantly impact solar energy generation and should be considered during installation planning. Cloud cover represents the most significant impediment to solar production in this region. The UK's maritime climate brings frequent overcast conditions, particularly during autumn and winter months, which can substantially reduce solar panel efficiency even during daylight hours. Precipitation, including rain and occasional snow, can accumulate on solar panels and reduce their effectiveness. While rain can help clean panels naturally, heavy or persistent precipitation blocks sunlight and reduces energy generation.

Preventative Installation Measures

Several installation strategies can help maximize solar energy production despite these local challenges:

• Install panels with adequate spacing to prevent shading between rows during low winter sun angles
• Ensure proper drainage and smooth panel surfaces to facilitate natural cleaning by rainfall
• Position panels away from trees, buildings, or other structures that might cast shadows
• Consider anti-reflective coatings to maximize light absorption during overcast conditions
• Install monitoring systems to identify performance issues quickly

Proper maintenance access should be incorporated into the design to allow for occasional cleaning during extended dry periods when dust or debris might accumulate. The 44-degree tilt angle naturally helps with self-cleaning during rainfall while optimizing solar capture throughout the year. While Tring's location presents seasonal challenges for solar generation, proper installation techniques and realistic expectations about winter performance can still make solar PV a worthwhile investment for renewable energy production.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

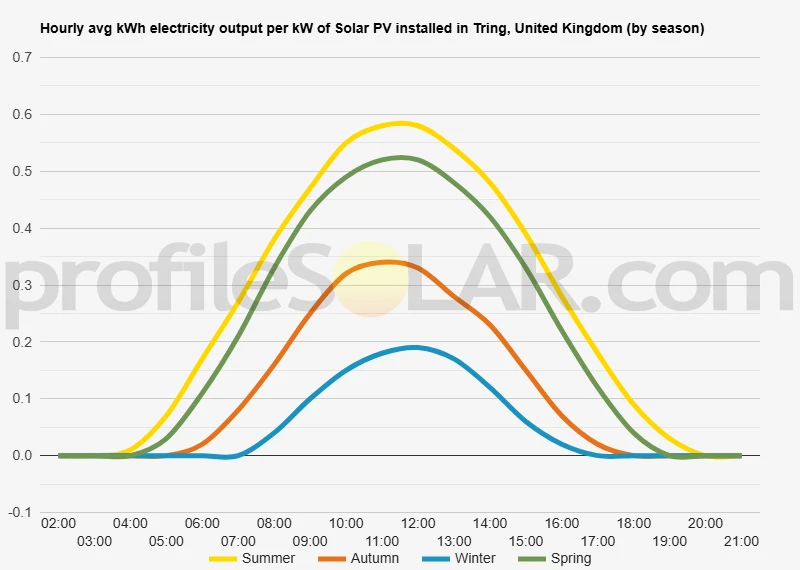

Solar output per kW of installed solar PV by season in Tring

Seasonal solar PV output for Latitude: 51.795, Longitude: -0.6549 (Tring, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Tring, United Kingdom

To maximize your solar PV system's energy output in Tring, United Kingdom (Lat/Long 51.795, -0.6549) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tring, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tring, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	55° South in Autumn	65° South in Winter	44° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tring, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tring, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tring, United Kingdom

Topographical Features Around Tring

Tring sits in a distinctive geographical position within Hertfordshire, nestled in the Chiltern Hills Area of Outstanding Natural Beauty. The town occupies a relatively elevated position at approximately 240 metres above sea level, positioned on the northwestern edge of the Chiltern escarpment. This chalk downland creates a dramatic landscape of rolling hills, steep-sided valleys, and open plateau areas that characterise much of the surrounding countryside.

The terrain immediately around Tring is quite varied, with the town itself built on relatively level ground within a natural gap in the hills. To the southeast, the land rises sharply towards the main Chiltern ridge, creating steep chalk slopes covered in beech woodland and grassland. Moving northwest from the town centre, the landscape opens into the broader Vale of Aylesbury, where the topography becomes gentler and more suitable for agriculture.

The area features several notable hills and ridges, including Pitstone Hill to the northeast and the Aldbury Nowers to the southeast. These elevated areas provide commanding views across the surrounding valleys but present challenging gradients for development. Between these higher elevations lie numerous dry valleys, known locally as coombes, which are characteristic features of chalk downland and create a distinctly undulating landscape pattern.

Optimal Areas for Large-Scale Solar Development

The most promising locations for substantial solar photovoltaic installations lie in the gentler agricultural areas to the northwest and west of Tring, where the land transitions into the Vale of Aylesbury. These areas offer extensive fields with moderate slopes, typically facing south or southwest, which would be ideal for solar panel orientation. The terrain here is sufficiently level to allow for efficient installation and maintenance while avoiding the steeper gradients found on the Chiltern escarpment.

Agricultural land around the villages of Pitstone, Ivinghoe, and extending towards Leighton Buzzard presents particularly suitable conditions. This zone benefits from being outside the most sensitive parts of the Chilterns Area of Outstanding Natural Beauty while still maintaining reasonable proximity to existing electrical infrastructure. The fields in this area are generally large enough to accommodate utility-scale installations and feature the kind of gentle undulation that can work well with modern solar mounting systems.

The plateau areas on top of the Chiltern ridge, while offering excellent solar exposure due to their elevation, face significant constraints due to their protected landscape status and ecological sensitivity. Additionally, many of these elevated areas are covered by ancient woodland or chalk grassland habitats that would be inappropriate for development.

Areas to the south and east of Tring, particularly around Berkhamsted and towards the M25 corridor, present mixed opportunities. While some agricultural land exists in this direction, much of it lies within steeper valley systems or faces planning constraints due to proximity to residential areas and transport infrastructure. The terrain here tends to be more fragmented by existing development and woodland, making large-scale solar installations more challenging to implement effectively.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.
