Wadebridge, England, United Kingdom presents a moderately challenging location for year-round solar PV energy generation, situated in the Northern Temperate Zone at coordinates 50.5166, -4.8337. The solar energy output varies dramatically throughout the year, reflecting the typical patterns of higher latitude locations in the Northern Hemisphere.

Seasonal Solar Performance

The location experiences significant seasonal variation in solar energy production. Summer provides the highest output at 5.86 kWh per day per kW of installed capacity, making it the most productive season for solar generation. Spring follows as the second-best performing season with 4.99 kWh per day per kW, offering nearly comparable energy production to summer months. Autumn sees a substantial drop in solar output to 2.28 kWh per day per kW of installed capacity. Winter presents the greatest challenge for solar energy generation, producing only 1.10 kWh per day per kW of installed solar panels - representing less than 20% of summer production levels.

Optimal Installation Configuration

For fixed panel installations at Wadebridge, England, the ideal tilt angle to maximize total year-round solar production is 42 degrees facing south. This angle is calculated by analyzing daily solar elevation angles at this latitude, determining optimal panel positioning, and weighting these angles based on solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several significant local factors could impede solar production at this Wadebridge location, requiring careful consideration during installation planning. The coastal location in Cornwall exposes solar installations to salt-laden air from the nearby Atlantic Ocean. Salt deposits can accumulate on solar panels, reducing light transmission and decreasing energy output over time. Additionally, the maritime climate brings frequent cloud cover and precipitation, which naturally reduces solar irradiance reaching the panels. Strong coastal winds are common in this region, potentially causing structural stress on solar mounting systems and occasionally carrying debris that could damage or obstruct panels. The area also experiences occasional severe weather events including storms that can bring heavy rain, hail, or high winds.

Preventative Measures for Enhanced Performance

Several installation strategies can help mitigate these environmental challenges and improve energy production:

• Install corrosion-resistant mounting hardware specifically designed for marine environments, using stainless steel or aluminum components with appropriate protective coatings
• Implement regular cleaning schedules to remove salt deposits and other debris, potentially using automated cleaning systems in commercial installations
• Choose solar panels with anti-reflective and hydrophobic coatings that help shed water and reduce dirt accumulation
• Design robust mounting systems engineered to withstand high wind loads typical of coastal locations
• Install appropriate drainage systems to prevent water pooling around ground-mounted installations

Proper system design should also include adequate spacing between panel rows to prevent shading during the low sun angles of winter months, when energy production is already significantly reduced. Regular maintenance and monitoring become particularly important in this coastal environment to ensure optimal long-term performance despite the challenging conditions.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

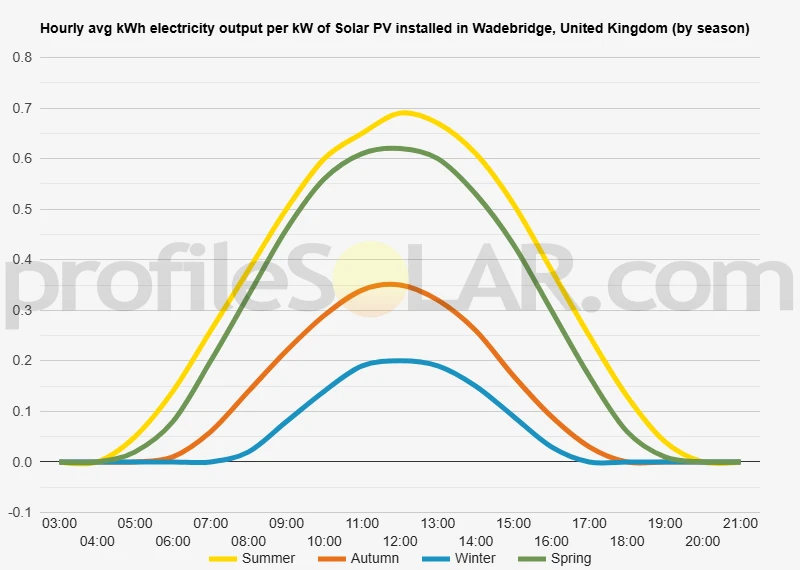

Solar output per kW of installed solar PV by season in Wadebridge

Seasonal solar PV output for Latitude: 50.5166, Longitude: -4.8337 (Wadebridge, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 42° South in Wadebridge, United Kingdom

To maximize your solar PV system's energy output in Wadebridge, United Kingdom (Lat/Long 50.5166, -4.8337) throughout the year, you should tilt your panels at an angle of 42° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Wadebridge, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Wadebridge, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
34° South in Summer	54° South in Autumn	64° South in Winter	42° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Wadebridge, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Wadebridge, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Wadebridge, United Kingdom

Topographical Features Around Wadebridge

Wadebridge sits in a relatively low-lying valley position along the River Camel in north Cornwall, approximately 20 kilometres inland from the Atlantic coast. The town itself occupies gently undulating terrain at an elevation of around 20 metres above sea level, surrounded by a landscape that gradually rises toward higher ground in multiple directions. To the north and northeast, the land climbs steadily toward Bodmin Moor, which represents some of Cornwall's most elevated terrain. This moorland area features rolling hills, tors, and open grassland that can reach elevations exceeding 400 metres. The transition from the river valley to these uplands creates a varied topographical profile with moderate slopes and occasional steeper gradients. Southward from Wadebridge, the landscape consists of undulating agricultural land typical of mid-Cornwall, with field patterns divided by traditional Cornish hedgerows. The terrain here features gentle hills and shallow valleys, generally maintaining elevations between 50 and 150 metres above sea level. This area represents part of the broader Cornwall plateau that characterises much of the county's interior. The western approaches toward the coast present a mixture of farmland and smaller settlements, with the land generally sloping downward toward the Atlantic. The topography becomes more varied as it approaches the coastal areas, with some steeper sections and more pronounced valley systems carved by smaller watercourses.

Optimal Areas for Large-Scale Solar Development

The most promising locations for substantial solar photovoltaic installations lie primarily to the south and southwest of Wadebridge, where the agricultural plateau provides extensive areas of relatively flat to gently sloping terrain. These locations offer the dual advantages of suitable gradients for panel installation and sufficient open space for large-scale development. The elevated agricultural areas between Wadebridge and the A30 corridor present particularly attractive characteristics for solar development. This zone features predominantly south-facing slopes with gradual inclines that would facilitate optimal panel orientation while minimising earthwork requirements. The existing field patterns, though divided by hedgerows, could potentially accommodate substantial installations with appropriate planning. Areas toward Bodmin Moor, while offering elevation advantages, present mixed suitability due to steeper gradients in some locations and potential landscape sensitivity considerations. However, the lower elevations of this moorland transition zone, particularly on south-facing slopes, could provide suitable sites where the terrain permits. The coastal approaches westward from Wadebridge generally offer less optimal conditions due to more varied topography and potential exposure to harsh coastal weather conditions. However, some inland areas within this zone, particularly those with southern exposures and moderate elevations, could still present viable opportunities for solar development. Agricultural land throughout the region would need careful consideration regarding soil quality and existing farming operations, but the predominant pastoral use in many areas could potentially be compatible with solar installations through appropriate design approaches that allow continued agricultural activities beneath or around panel arrays.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
