Location estimate

Walton on Thames

England · United Kingdom

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

5.13

kWh/day

Autumn

2.31

kWh/day

Winter

1.07

kWh/day

Spring

4.36

kWh/day

Shared scale: 0–6.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Walton on Thames, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 5.13 5.13 × 1 kWp = 5.13 kWh/day
Autumn 2.31 2.31 × 1 kWp = 2.31 kWh/day
Winter 1.07 1.07 × 1 kWp = 1.07 kWh/day
Spring 4.36 4.36 × 1 kWp = 4.36 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
5.13
Autumn · kWh/day
2.31
Winter · kWh/day
1.07
Spring · kWh/day
4.36

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 44 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
44°
Facing direction
South

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Jun, Jul, Aug
35°South
Autumn
Sep, Oct, Nov
54°South
Winter
Dec, Jan, Feb
65°South
Spring
Mar, Apr, May
43°South

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Walton on Thames, England, United Kingdom.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 35 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

35° tilt · South

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 54 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

54° tilt · South

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 65 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

65° tilt · South

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 43 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

43° tilt · South

Illustrative direction; exact azimuth not recorded.

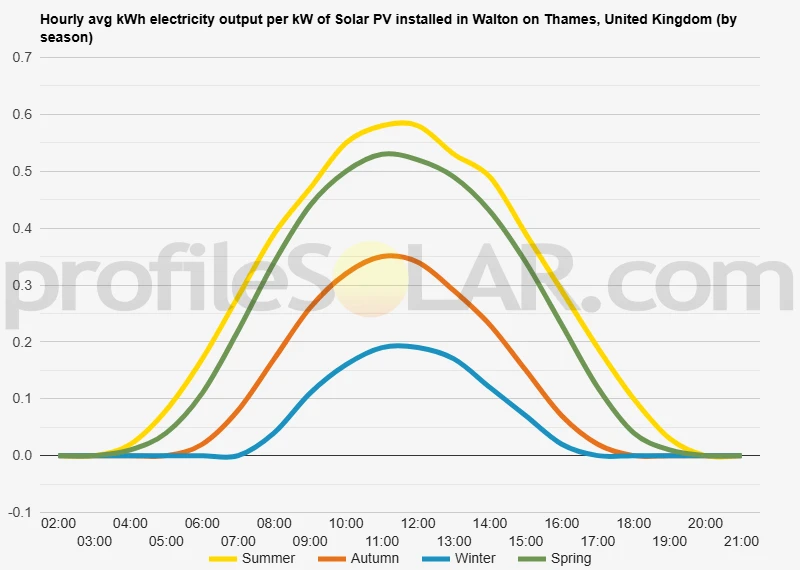

Historical hourly-by-season solar output chart for Walton on Thames, United Kingdom. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Walton on Thames, United Kingdom

Hourly profiles by season — Walton on Thames, United Kingdom · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Walton on Thames, United Kingdom · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Walton on Thames

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 6.56 m

Proportional side viewDesign sun: ≈ 15.17° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 5.12 m
Added margin
≈ 0 m
Gap including margin
≈ 5.12 m
Panel horizontal footprint
≈ 1.44 m
Panel vertical rise
≈ 1.39 m
Pitch before margin
≈ 6.56 m

Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
44°
Added margin
0 m
Latitude from the catalogue
51.382200000000000000° (Northern Hemisphere)
Panel horizontal footprint
1.4386796006773024 m
Panel vertical rise
1.3893167409179945 m
Calculated clear gap
5.124839823309239 m
Pitch before margin
6.563519423986541 m
Gap including margin
5.124839823309239 m
Row pitch including margin
6.563519423986541 m
Design solar elevation
15.168017153186357°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Walton on Thames

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

<p>Walton-on-Thames, located in the United Kingdom, presents a mixed scenario for solar energy generation throughout the year. Situated in the Northern Temperate Zone, this location experiences significant seasonal variations in solar output, which affects the overall efficiency of solar PV systems.</p>

Read the full article

<h3>Seasonal Solar Performance</h3> <p>The solar energy production in Walton-on-Thames varies considerably across the four meteorological seasons: <ul> <li>Summer: 5.13 kWh/day</li> <li>Spring: 4.36 kWh/day</li> <li>Autumn: 2.31 kWh/day</li> <li>Winter: 1.07 kWh/day</li> </ul> These figures represent the expected daily electricity output per kilowatt of installed solar capacity.</p> <h3>Optimal Generation Periods</h3> <p>The most favorable times for solar energy generation in Walton-on-Thames are during the summer and spring months. These seasons offer longer daylight hours and generally clearer skies, resulting in significantly higher energy production. The period from late March to early September is particularly ideal for maximizing solar output.</p> <h3>Panel Installation Considerations</h3> <p>For fixed panels in Walton-on-Thames, our recorded year-round reference is 44 degrees facing South. It is a broad guide based on simplified solar geometry and estimated output; the roof and local horizon affect the installation layout.</p> <h3>Environmental and Weather Factors</h3> <p>Several factors can impact solar production in Walton-on-Thames: 1. Cloud cover: The UK is known for its frequently overcast skies, which can significantly reduce solar panel efficiency. 2. Rain: Walton-on-Thames experiences considerable rainfall, which can temporarily decrease panel performance. 3. Short winter days: The location's northern latitude results in very short days during winter, limiting solar generation potential.</p> <h3>Mitigation Strategies</h3> <p>Cloud cover reduces available sunlight, including during Walton’s lower-output winter season. Cleaning addresses actual surface deposits and should follow the installer’s guidance. Battery storage can shift some generated electricity to later use, with losses; its capacity does not follow from the seasonal figures alone.</p> <p>While Walton-on-Thames may not be ideal for year-round solar energy production, with proper planning and technology, it can still be a viable location for solar PV installations, particularly during the spring and summer months.</p>

Topography around Walton on Thames

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

Walton-on-Thames is on the south bank of the River Thames in northwest Surrey, within Elmbridge. Its low-relief riverside setting contrasts with the hillier and more wooded parts of the wider borough farther south.

Read the full topography description

<h3>A Developed Riverside Landscape</h3> The Thames is both a physical boundary and a major part of the town’s landscape. Riverside buildings, paths, gardens and mature vegetation sit alongside the channel. Elmbridge’s design code identifies a mix of public houses, boathouses, industrial buildings and residential uses along the borough’s riversides. The wider Elmbridge landscape includes parkland, woodland and other rivers and channels, alongside predominantly residential development. Flat ground therefore has a mixture of uses and obstruction patterns rather than a uniform open solar horizon. <h3>Solar Layout Beside the Thames</h3> Nearby trees, buildings and roof form can matter more than distant terrain to an individual installation. Their shadow positions change through the day and year, including during the lower winter sun. Ground-mounted proposals need to fit the riverside landscape, existing uses and local water conditions. A field’s openness or a former airfield’s size does not establish land availability or electrical connection capacity. Roofs within the developed area provide a different opportunity, with the actual structure and horizon guiding the usable layout.

Technical location reference

Approximate map point used for Walton on Thames, United Kingdom

This coordinate is the calculation reference for Walton on Thames, United Kingdom. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
51.382200000000000000, -0.424900000000000000
Originally displayed coordinate
lat51.3822 / long-0.4249

How the estimate works

How this Walton on Thames estimate was calculated

Here is how I calculated the location estimate for Walton on Thames, United Kingdom.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Walton on Thames Location estimate includes and leaves out

Use the Walton on Thames figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
