Warlingham in the United Kingdom has moderate potential for solar energy generation, with significant seasonal variations in output. Located in the Northern Temperate Zone, this site experiences substantial differences between summer and winter solar production.

Seasonal Solar Production

Solar panels in Warlingham can produce approximately 5.08kWh per day for each kilowatt installed during summer months, making this the peak season for generation. Spring follows as the second most productive season with 4.29kWh/day per kW installed. Production drops considerably in autumn to 2.25kWh/day, while winter sees the lowest output at just 1.03kWh/day per kW installed.

This pattern means that approximately 70% of annual solar energy is generated during spring and summer months, with a significant drop-off during autumn and winter. The nearly 5:1 ratio between summer and winter daily production highlights the seasonal challenges of solar energy in this latitude.

Optimal Installation

For fixed panel installations in Warlingham, England, the ideal angle to maximize year-round production is 44 degrees facing South. This angle has been calculated based on the location's latitude and seasonal solar elevation patterns, weighted by daily PV potential to optimize annual energy capture.

Environmental Factors and Preventative Measures

Several factors could impact solar production at this location:

• Cloud cover and fog are common in the UK, particularly during autumn and winter months, reducing direct sunlight
• Rain and high humidity can reduce panel efficiency and cause temporary drops in production
• Dust, pollen, and air pollution from nearby London can accumulate on panels, gradually decreasing efficiency
• Tree coverage and building shadows may be significant in this suburban area

To maximize production despite these challenges, installations should include regular cleaning schedules, positioning away from trees or structures that cast shadows, and potentially incorporating tracking systems for larger installations. Anti-reflective coatings and self-cleaning panel technologies can also help maintain efficiency in this environment.

While Warlingham doesn't have ideal year-round solar conditions compared to sunnier regions, proper installation with the correct angle and orientation can still make solar energy a viable supplementary power source, particularly during the productive spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

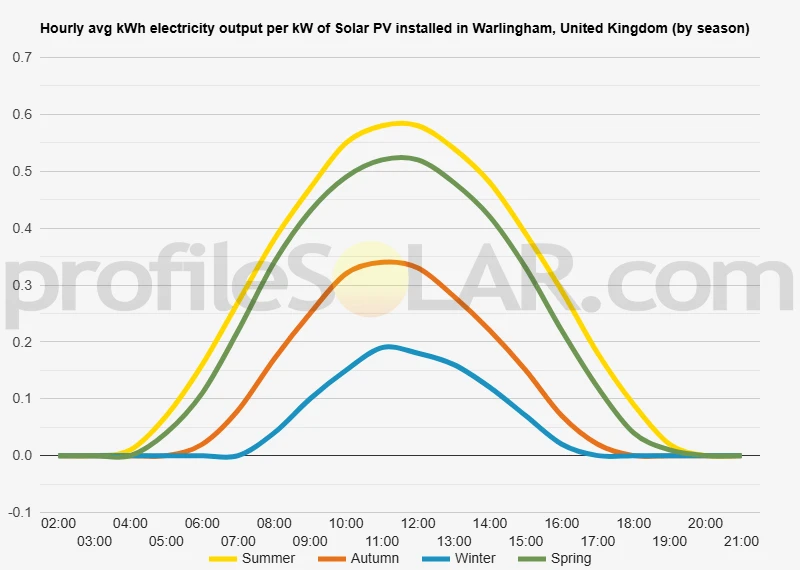

Solar output per kW of installed solar PV by season in Warlingham

Seasonal solar PV output for Latitude: 51.3186, Longitude: -0.0572 (Warlingham, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Warlingham, United Kingdom

To maximize your solar PV system's energy output in Warlingham, United Kingdom (Lat/Long 51.3186, -0.0572) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Warlingham, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Warlingham, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	54° South in Autumn	65° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Warlingham, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Warlingham, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Warlingham, United Kingdom

Warlingham is nestled in the North Downs of Surrey, England, situated approximately 14 miles south of central London. The topography of this area is characterized by rolling chalk hills that form part of a ridge running east to west across Southeast England. The landscape around Warlingham features significant elevation changes, with the town itself sitting at approximately 170-190 meters above sea level, making it one of the higher settlements in the Greater London area. The terrain surrounding Warlingham is quite varied. To the north, the land gradually descends toward the London Basin, while to the south, the chalk escarpment of the North Downs rises more dramatically, with some slopes exceeding 15-20% gradient. This creates a landscape of valleys and ridges, with notable high points in the vicinity reaching over 200 meters. The area contains numerous dry valleys typical of chalk landscapes, formed during periods of permafrost in past ice ages.

Vegetation and Land Use

The natural vegetation around Warlingham consists of a mixture of ancient woodland, particularly on steeper slopes, and open chalk grassland areas. However, much of the land has been modified for agricultural use, with a patchwork of fields dominating the more level areas. The steeper slopes of the North Downs often remain wooded or as unimproved grassland due to the challenges of cultivation on such terrain.

Solar PV Suitability in the Surrounding Area

For large-scale solar PV installations, the topography presents both challenges and opportunities. The most suitable areas would be: The gentler south-facing slopes of the North Downs would be particularly advantageous for solar energy collection, as they naturally orient toward the sun's path and receive more direct solar radiation throughout the year. Several plateaus and areas of more level ground to the east and southeast of Warlingham offer potential for larger installations without requiring extensive terrain modification. Some former agricultural land on the lower-gradient areas around Warlingham could be suitable, particularly where the soil quality is poorer or where farming has become less economically viable. These areas often have the advantage of existing access roads and proximity to the electrical grid. Areas to avoid would include the steeper north-facing slopes, which receive significantly less direct sunlight, and the heavily wooded areas, where clearance would have environmental implications. The most densely developed residential and commercial zones would also be impractical for large-scale installations. The undulating nature of the landscape means that careful site selection is essential to maximize efficiency. Ideally, solar farms would be positioned to minimize shadowing from nearby hills, trees, or structures, particularly during winter months when the sun is lower in the sky and shadows are longer. Some of the former chalk quarries and modified landscapes in the broader region might offer interesting opportunities for solar development, as they often combine good solar exposure with limited alternative land use potential. The proximity to London means that power transmission infrastructure is relatively well developed in the region, potentially reducing the costs of connecting new solar installations to the grid. However, this same proximity to urban areas means that land values are relatively high, which could affect the economic viability of very large-scale projects compared to more remote parts of the UK.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.
