Solar PV Analysis of Wednesbury, United Kingdom
The location at Wednesbury, England, United Kingdom is not the most ideal for year-round solar energy generation but can still produce a decent amount of power. Solar energy production varies greatly across different seasons due to changes in sunlight exposure and weather conditions.
In summer, you can expect the highest electricity output with about 5.27 kilowatt-hours (kWh) per day for each kilowatt (kW) of installed solar panels. This is because during this season, the days are longer and there's more direct sunlight. In spring, it drops slightly to 4.42 kWh/day per kW due to shorter daylight hours compared to summer.
However, in autumn and winter, the output decreases significantly due to fewer daylight hours and less intense sun rays reaching the panels. You'll get around 2.14 kWh/day per kW in autumn while it further reduces down to only about 1.01 kWh/day per kW in winter.
To maximize total year-round production from solar PV at this location, fixed panel installations should be tilted towards south at an angle of approximately 44 degrees.
There might be some local factors that could affect solar production such as frequent overcast or rainy weather which blocks sunlight from reaching the panels effectively reducing their efficiency; snow accumulation on panels during winter months could also reduce their effectiveness significantly if not cleared regularly; tall buildings or trees nearby may cast shadows on your installation reducing its exposure time; pollution levels if high might also hamper effective absorption of sunlight by panels.
To counter these issues: Regular cleaning and maintenance of panels would help keep them efficient especially when dealing with pollution or snowfall issues; strategic placement away from potential shadow casting structures would ensure maximum exposure time throughout the day; using advanced technology like trackers that adjust panel position according to sun movement could increase productivity especially during less sunny months but they come at higher costs compared with fixed installations.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in United Kingdom by location

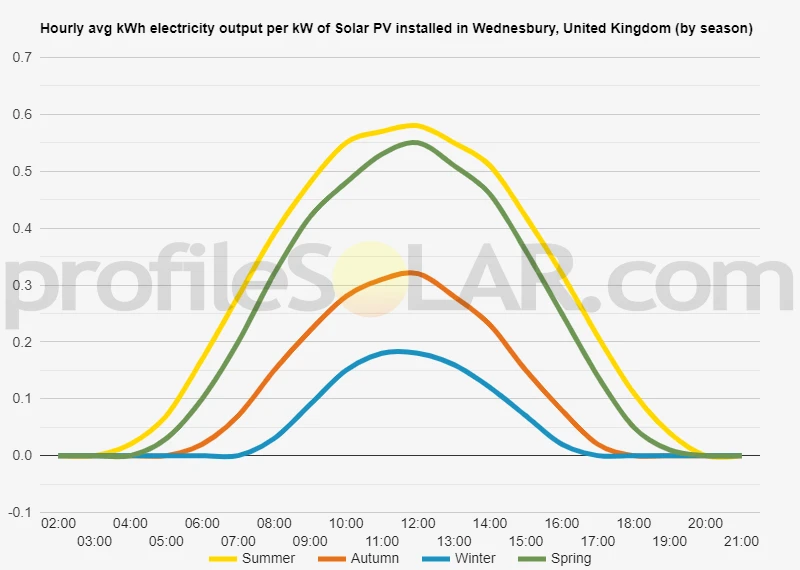

Solar output per kW of installed solar PV by season in Wednesbury
Seasonal solar PV output for Latitude: 52.5674, Longitude: -2.0333 (Wednesbury, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 44° South in Wednesbury, United Kingdom
To maximize your solar PV system's energy output in Wednesbury, United Kingdom (Lat/Long 52.5674, -2.0333) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Wednesbury, United Kingdom
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Wednesbury, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 36° South in Summer | 56° South in Autumn | 66° South in Winter | 45° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Wednesbury, United Kingdom
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Wednesbury, United Kingdom.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Wednesbury, United Kingdom
Wednesbury is located in the West Midlands region of England, United Kingdom. The topography of this area is generally flat to gently rolling terrain, with some low hills and valleys. The area has a mix of urban and suburban land uses, including residential areas, commercial centers, industrial sites and some green spaces.
For large-scale solar PV installations, it's important to consider factors such as sunlight exposure (solar irradiance), land availability and use restrictions, proximity to grid connection points or demand centers for electricity consumption.
Given these criteria:
1) Open fields: Open fields on the outskirts of Wednesbury could be suitable for large-scale solar farms due to their relatively flat terrain which maximizes sunlight exposure. However, any plans would need to consider potential impacts on local wildlife habitats or agricultural land use.
2) Industrial rooftops: Large warehouse or factory roofs in the industrial areas around Wednesbury could also be viable locations for installing solar panels. These can provide significant surface area for installation without requiring additional land space.
3) Brownfield sites: If there are brownfield (previously developed but now vacant) sites available within or near Wednesbury that aren't suitable for other types of development due to contamination issues etc., they might present good opportunities for setting up solar PV arrays too.
4) Car parks: Large car park areas might also serve as potential spots where you can install solar panel structures above parking spaces not only generating power but providing shade protection too.
In all cases though it's essential that site-specific feasibility studies are carried out before proceeding with any kind of installation project. Factors like shading from nearby buildings/trees/hillsides; orientation & tilt angle suitability; ground/roof condition & load-bearing capacity; access logistics etc need careful consideration.
United Kingdom solar PV Stats as a country
United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United Kingdom?
Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.
Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
Citation Guide
Article Details for Citation
Author: Aaron Robinson
Publisher: profileSOLAR.com
First Published: Wednesday 3rd of April 2024
Last Updated: Monday 21st of July 2025
Tell Us About Your Work
We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.
