Winscombe, England, a village in North Somerset, United Kingdom, presents a mixed picture for solar PV energy generation. Located in the Northern Temperate Zone, this location experiences significant seasonal variations in solar output.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive 5.42 kWh per day for each kW of installed solar capacity. Spring follows closely, generating 4.54 kWh/day. However, the output drops considerably during autumn (2.31 kWh/day) and reaches its lowest point in winter (1.05 kWh/day).

The substantial difference between summer and winter production highlights the challenges of year-round solar energy generation in Winscombe. While the location is excellent for solar power during the warmer months, the shorter days and typically overcast weather of British winters significantly reduce efficiency.

Optimal Panel Installation

To maximize year-round solar production, fixed panels should be installed at a 43-degree angle facing south. This tilt helps optimize energy capture across all seasons, balancing between the high summer sun and the lower winter sun angle.

Environmental and Weather Factors

Several factors can impact solar production in Winscombe:

1. Cloud cover: The UK is known for its frequent overcast conditions, particularly in autumn and winter, which can significantly reduce solar output.
2. Rainfall: The area experiences considerable rainfall, which can temporarily decrease panel efficiency.
3. Temperature: While not extremely hot, summer temperatures can slightly reduce panel efficiency compared to cooler, sunny days.

Mitigation Strategies

To address these challenges, consider the following measures:

• Use high-efficiency panels designed for diffuse light conditions
• Implement a robust cleaning schedule to combat the effects of rain and potential debris
• Consider a hybrid system with wind energy to complement solar during less sunny periods
• Install microinverters or power optimizers to minimize the impact of partial shading

While Winscombe's location presents some challenges for year-round solar energy production, proper system design and maintenance can still yield significant benefits, particularly during the spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

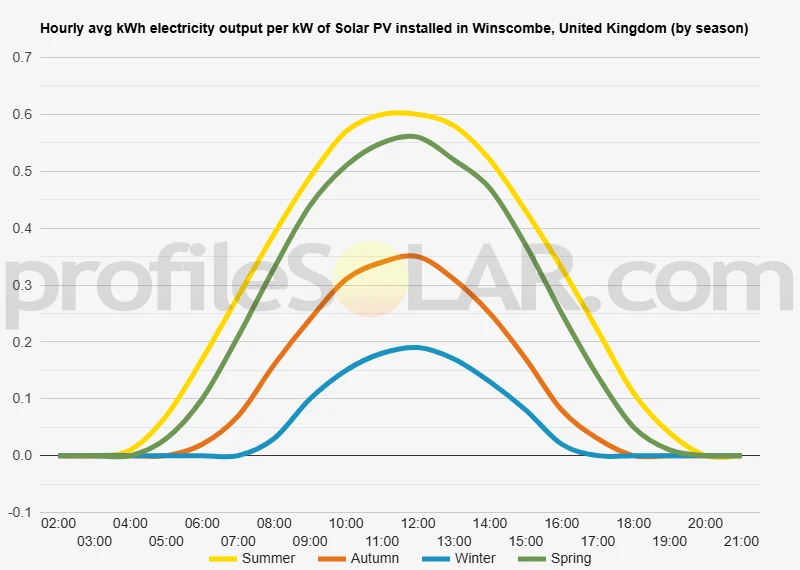

Solar output per kW of installed solar PV by season in Winscombe

Seasonal solar PV output for Latitude: 51.3229, Longitude: -2.7839 (Winscombe, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Winscombe, United Kingdom

To maximize your solar PV system's energy output in Winscombe, United Kingdom (Lat/Long 51.3229, -2.7839) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Winscombe, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Winscombe, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	54° South in Autumn	65° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Winscombe, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Winscombe, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Winscombe, United Kingdom

Winscombe, located in Somerset, England, is situated in an area characterized by diverse and picturesque topography. The village lies at the foot of the Mendip Hills, an area of outstanding natural beauty known for its limestone ridges and steep slopes. To the north and east of Winscombe, the landscape rises into these hills, offering panoramic views of the surrounding countryside. The immediate vicinity of Winscombe features a mix of gently rolling farmland and wooded areas. The village itself sits in a shallow valley, with the terrain gradually ascending as one moves away from the center. To the south and west, the land opens up into the Somerset Levels, a flat, low-lying area that was once marshland but has since been drained for agricultural use.

Nearby Areas Suitable for Large-Scale Solar PV

When considering locations for large-scale solar photovoltaic (PV) installations near Winscombe, several factors must be taken into account, including available space, sunlight exposure, and minimal impact on the natural landscape. The Somerset Levels to the south and west of Winscombe present the most promising areas for large-scale solar PV development. This expansive, flat terrain offers ideal conditions for solar farms, with unobstructed exposure to sunlight throughout the day. The agricultural nature of the land means that large, open fields are readily available, potentially allowing for significant solar installations without major disruption to the existing landscape. However, it's important to note that the Somerset Levels are prone to flooding, which could pose challenges for solar PV infrastructure. Careful site selection and appropriate flood mitigation measures would be necessary for any development in this area. The gently sloping farmland immediately surrounding Winscombe might also offer potential sites for smaller-scale solar installations. These areas benefit from good sun exposure while being close to existing infrastructure and population centers. The Mendip Hills, while offering excellent sun exposure due to their elevation, are less suitable for large-scale solar PV development. This is primarily due to their status as an Area of Outstanding Natural Beauty, which affords them protection against significant development. Additionally, the steep slopes and uneven terrain would present technical challenges for large solar installations. In conclusion, while the topography around Winscombe is varied and beautiful, the most suitable areas for large-scale solar PV development are likely to be found in the flatter, more open landscapes to the south and west of the village, particularly in the Somerset Levels. Any such development would need to be carefully planned to balance energy production needs with environmental and aesthetic considerations.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
