Winsford, England, United Kingdom is located in the Northern Temperate Zone and experiences significant seasonal variation in solar energy production, making it a moderately challenging location for year-round solar PV generation.

Seasonal Solar Production Patterns

The solar energy output at Winsford shows dramatic seasonal differences. Summer provides the highest production at 5.26 kWh per day per kW of installed capacity, making it the peak season for solar generation. Spring follows as the second-best season with 4.30 kWh per day per kW, offering substantial energy production as daylight hours increase. Autumn sees a significant drop to 1.90 kWh per day per kW, while winter presents the most challenging conditions with only 0.85 kWh per day per kW. This winter figure represents less than one-sixth of summer production, highlighting the location's seasonal limitations.

Optimal Panel Configuration

For maximum year-round energy production at Winsford, England, solar panels should be installed at a fixed tilt angle of 44 degrees facing south. This angle has been calculated to optimise total annual output by accounting for the sun's varying position throughout the year and weighting for actual solar irradiance potential at this latitude.

Local Factors Affecting Solar Production

Several environmental and weather factors at Winsford can significantly impact solar energy generation:

• Frequent cloud cover and overcast conditions - Common in the UK climate, reducing direct sunlight reaching panels
• High humidity and maritime climate - Can lead to moisture accumulation and reduced panel efficiency
• Prevailing westerly winds - May carry salt spray and debris that can coat panel surfaces
• Regular rainfall - While helpful for cleaning, can reduce production during extended wet periods

Preventative Measures for Enhanced Performance

To maximise solar energy production despite these challenges, several installation strategies should be considered:

• Regular cleaning schedules - Monthly panel cleaning to remove dirt, salt deposits, and organic matter
• Proper drainage design - Ensure water runs off panels efficiently without pooling
• Anti-reflective coatings - Specialised coatings can help panels perform better in diffused light conditions
• Microinverter systems - These can optimise performance when some panels are shaded by clouds while others remain in sunlight
• Adequate spacing between panel rows - Prevents self-shading and allows for maintenance access

The location's position in the Northern Temperate Zone means that while summer and spring offer good solar potential, the winter months present significant challenges for consistent energy generation. Property owners should plan for substantial seasonal variation in their solar energy production and consider battery storage or grid-tied systems to manage these fluctuations effectively.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

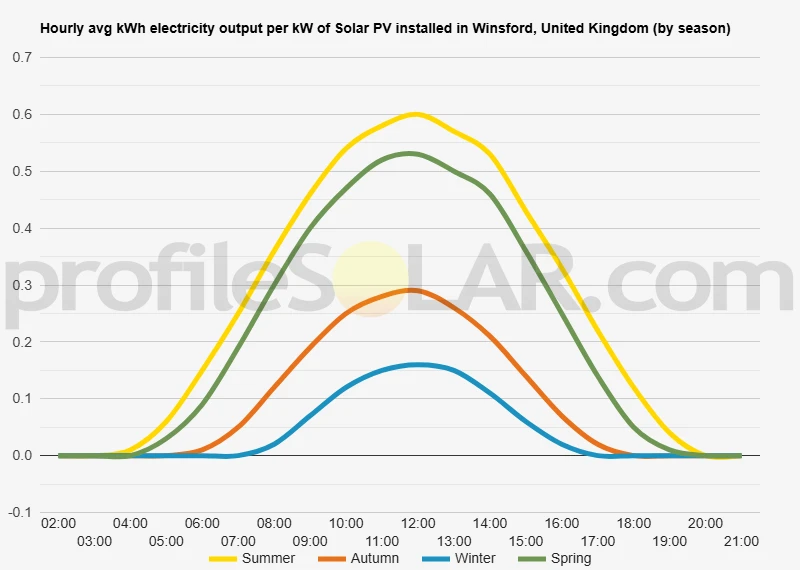

Solar output per kW of installed solar PV by season in Winsford

Seasonal solar PV output for Latitude: 53.1835, Longitude: -2.5119 (Winsford, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Winsford, United Kingdom

To maximize your solar PV system's energy output in Winsford, United Kingdom (Lat/Long 53.1835, -2.5119) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Winsford, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Winsford, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
37° South in Summer	56° South in Autumn	66° South in Winter	45° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Winsford, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Winsford, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Winsford, United Kingdom

Topographical Features Around Winsford

The landscape surrounding Winsford in Cheshire presents a relatively gentle and undulating terrain characteristic of the Cheshire Plain. This area sits within a broad lowland region that extends across much of central Cheshire, with elevations typically ranging between 40 and 100 metres above sea level. The topography consists primarily of rolling farmland interspersed with small woodlands and hedgerows, creating a patchwork of agricultural fields that have been shaped by centuries of farming activity. To the east of Winsford, the land begins to rise more noticeably as it approaches the foothills of the Peak District, though these elevated areas remain modest in height compared to the dramatic peaks further eastward. The western approaches toward the Mersey estuary maintain the characteristic flatness of the Cheshire Plain, offering expansive views across predominantly agricultural landscapes. The River Weaver meanders through the area, creating a shallow valley system that has influenced local drainage patterns and soil composition. This river system has historically supported the local salt industry, and its presence has created some areas of slightly lower elevation and occasional flood plains, though these are generally well-managed through modern drainage systems.

Optimal Areas for Large-Scale Solar Development

The gently rolling topography around Winsford presents several advantageous characteristics for large-scale solar photovoltaic installations. The most suitable areas lie on the south-facing slopes of the undulating farmland, particularly those fields that enjoy unobstructed southern exposure without significant shading from woodland or existing structures. Areas to the north and northwest of Winsford offer particularly promising opportunities, where extensive agricultural fields provide large, relatively flat expanses with minimal topographical constraints. These locations benefit from the gentle southward-facing slopes that characterise much of the Cheshire Plain in this region, allowing for optimal panel orientation without requiring significant ground preparation or terracing. The elevated areas to the east, while offering good exposure, may present more challenging installation conditions due to increased wind exposure and slightly steeper gradients. However, these locations could still prove viable for solar development, particularly on the more sheltered southern faces of hills and ridges. Agricultural land currently used for less intensive farming activities, such as pasture for livestock grazing, represents the most practical option for large-scale solar development. Many of these areas feature minimal existing infrastructure that would complicate installation, while the generally stable soil conditions across the Cheshire Plain provide good foundations for mounting systems. The flat to gently undulating nature of the terrain means that large solar arrays could be installed with minimal earthworks or complex foundation requirements, potentially reducing installation costs and environmental impact. Areas with good access to existing road networks and electrical infrastructure would be particularly advantageous for connecting large-scale installations to the national grid.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
