Witham, England, a town in Essex, United Kingdom, presents a mixed picture for solar energy generation throughout the year. Located in the Northern Temperate Zone, this area experiences significant seasonal variations in solar potential.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Witham, England, with an average daily output of 5.13 kWh per kW of installed capacity. Spring follows closely behind, generating 4.41 kWh per day. However, the colder months see a substantial drop in production. Autumn yields 2.29 kWh per day, while winter performance plummets to a mere 1.03 kWh daily.

These figures highlight the stark contrast between the warmer and colder months, with summer producing nearly five times more energy than winter. This variation is primarily due to the changing day length and sun angle throughout the year at Witham's latitude.

Optimal Panel Installation

To maximize year-round solar energy production in Witham, England, fixed solar panels should be tilted at an angle of 44 degrees facing south. This optimal angle takes into account the location's latitude and the sun's position throughout the year, balancing summer and winter performance.

Environmental Factors and Mitigation

While Witham doesn't face extreme environmental challenges for solar production, there are some factors to consider:

• Cloud cover: The UK is known for its cloudy weather, which can reduce solar efficiency. Using high-quality panels designed for diffuse light conditions can help mitigate this issue.
• Rain and humidity: Frequent rainfall can lead to dirt accumulation on panels. Regular cleaning and maintenance can ensure optimal performance.

Additionally, ensuring panels are not shaded by nearby trees or buildings is crucial for maximizing energy production. Implementing a system with microinverters or power optimizers can help minimize the impact of partial shading on overall system performance.

In conclusion, while Witham's location is not ideal for year-round solar energy production due to significant seasonal variations, proper installation techniques and maintenance can still make solar PV a viable renewable energy option for this area.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 911 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

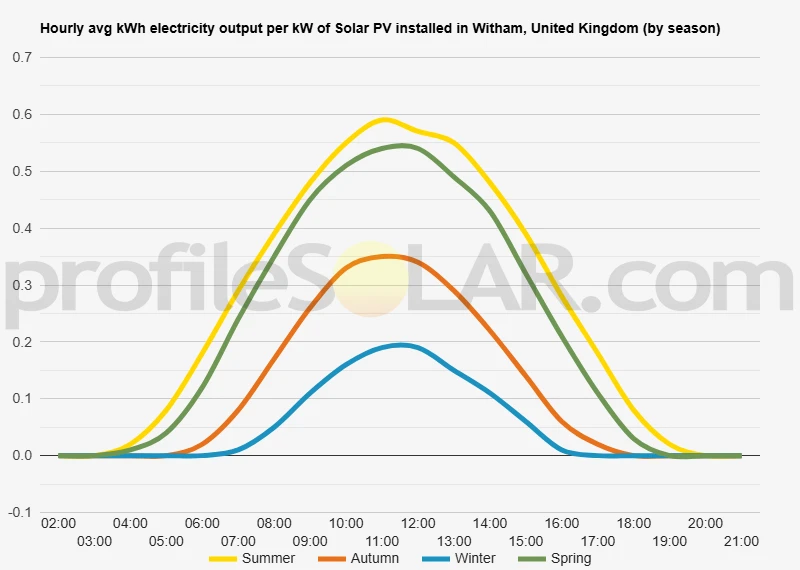

Solar output per kW of installed solar PV by season in Witham

Seasonal solar PV output for Latitude: 51.813, Longitude: 0.6415 (Witham, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Witham, United Kingdom

To maximize your solar PV system's energy output in Witham, United Kingdom (Lat/Long 51.813, 0.6415) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Witham, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Witham, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
35° South in Summer	55° South in Autumn	65° South in Winter	44° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Witham, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Witham, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Witham, United Kingdom

Witham, located in Essex, England, sits in a relatively flat landscape typical of much of southeastern England. The town itself is situated in the shallow valley of the River Brain, a tributary of the larger River Blackwater. The surrounding area is characterized by gently rolling countryside, with subtle undulations rather than dramatic hills or valleys. To the north and east of Witham, the land gradually rises, forming low hills and ridges. These areas offer slightly elevated positions with good exposure to sunlight. The terrain here is primarily made up of agricultural fields, interspersed with small woodlands and hedgerows. South of Witham, the landscape becomes even flatter as it approaches the Blackwater Estuary. This area is known for its expansive marshes and mudflats, which are not suitable for large-scale solar installations due to their ecological importance and flood risk.

Potential Areas for Solar PV

When considering locations for large-scale solar PV installations near Witham, several factors come into play. The ideal sites would be relatively flat or gently sloping, with good sun exposure and minimal shading from trees or buildings. They should also be away from areas of natural beauty or ecological significance. The agricultural lands to the north and east of Witham present the most promising opportunities for solar development. These areas offer large, open fields with few obstructions to sunlight. The slightly elevated positions of some of these fields could provide an advantage in terms of solar exposure. Specifically, the area between Witham and Braintree, about 5-7 miles north of Witham, contains expansive farmland that could be suitable for solar installations. Similarly, the region east of Witham towards Kelvedon offers potential sites on gently sloping terrain. It's important to note that any large-scale solar development would need to balance energy production goals with the preservation of productive agricultural land. Additionally, proper environmental assessments would be necessary to ensure minimal impact on local wildlife and ecosystems. While the immediate surroundings of Witham offer some potential for solar PV, it's worth considering that other parts of Essex or neighboring counties might provide even more suitable locations for large-scale installations, particularly in areas with less productive agricultural land or former industrial sites.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
