Barinas, Venezuela represents an excellent location for year-round solar energy generation, benefiting from its tropical position where consistent sunlight is available throughout most of the year with seasons characterized more by wet and dry periods than temperature variations.

Solar Energy Output Performance

The solar energy production data for this location shows remarkably consistent and strong performance across all seasons. Winter and autumn deliver the highest output at 5.46 kWh per day per kW of installed solar capacity, while spring produces 5.01 kWh/day and summer generates 4.93 kWh/day per kW installed. This seasonal pattern is typical for tropical locations, where the sun's angle varies less dramatically throughout the year compared to higher latitudes. The slight dip in summer production may be attributed to increased cloud cover during wetter periods, while the peak performance in winter and autumn coincides with drier, clearer atmospheric conditions.

Optimal Installation Configuration

For maximum year-round energy production at Barinas, solar panels should be installed at a fixed tilt angle of 9 degrees facing south. This relatively shallow angle is calculated to optimize total annual solar output by accounting for the sun's elevation angles throughout the year, weighted by solar irradiance potential and adjusted for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Barinas and require consideration during installation planning:

• Heavy rainfall and flooding: The wet season brings intense tropical downpours that can cause temporary flooding and create standing water around solar installations
• High humidity levels: Persistent moisture in the air can lead to corrosion of metal components and electrical connections over time
• Dust and debris accumulation: During dry periods, dust storms and airborne particles can coat solar panels, reducing their efficiency
• Extreme heat: Tropical temperatures can cause solar panels to operate at reduced efficiency and stress electrical components

Preventative Installation Measures

To maximize solar energy production despite these environmental challenges, several protective measures should be implemented:

• Elevated mounting systems: Install panels on raised structures or rooftops to avoid flood damage and improve air circulation for cooling
• Drainage and waterproofing: Ensure proper water drainage around installations and use marine-grade waterproof electrical connections and junction boxes
• Anti-corrosion treatments: Use aluminum or stainless steel mounting hardware with protective coatings designed for tropical marine environments
• Regular cleaning protocols: Establish routine panel cleaning schedules and consider installing automated cleaning systems for larger installations
• Ventilation design: Allow adequate spacing between panels and mounting surfaces to promote air circulation and heat dissipation

Despite these environmental considerations, Barinas offers excellent conditions for solar energy generation with consistent high output throughout the year, making it a highly suitable location for both residential and commercial solar installations when proper protective measures are implemented.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 83 locations across Venezuela. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Venezuela by location

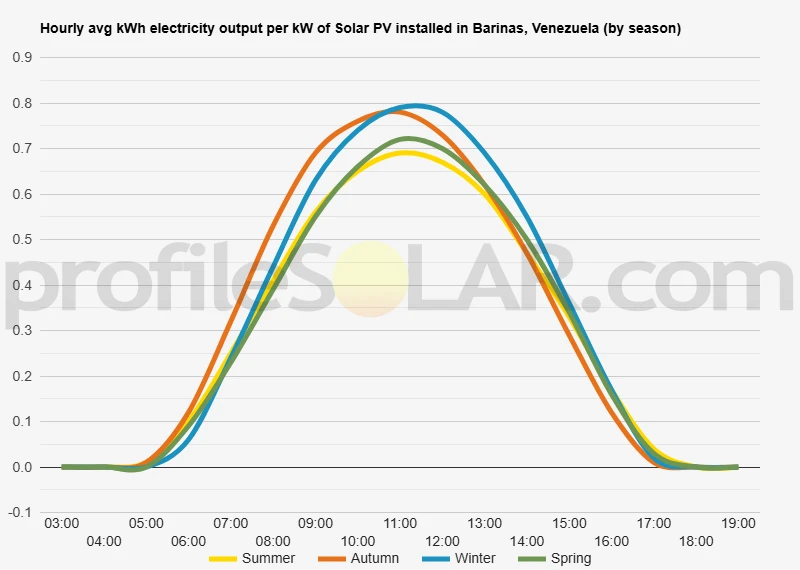

Solar output per kW of installed solar PV by season in Barinas

Seasonal solar PV output for Latitude: 8.6206, Longitude: -70.231 (Barinas, Venezuela), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 9° South in Barinas, Venezuela

To maximize your solar PV system's energy output in Barinas, Venezuela (Lat/Long 8.6206, -70.231) throughout the year, you should tilt your panels at an angle of 9° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Barinas, Venezuela

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Barinas, Venezuela. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 9° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	14° South in Autumn	24° South in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Barinas, Venezuela

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Barinas, Venezuela.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Barinas, Venezuela

Topographical Features of the Barinas Region

The area surrounding Barinas, Venezuela presents a diverse topographical landscape that transitions from the expansive Llanos plains to the foothills of the Andes Mountains. The city itself sits at approximately 200 meters above sea level in the western portion of the Orinoco Basin, positioned where the flat grasslands of the Llanos meet the rising terrain that leads toward the Cordillera de Mérida.

To the east and southeast of Barinas, the landscape consists primarily of vast, relatively flat plains that extend for hundreds of kilometers. These Llanos plains are characterized by gentle undulations and seasonal wetlands, with elevation changes typically measuring less than 50 meters across large distances. The terrain here is predominantly grassland with scattered gallery forests along the numerous rivers and streams that drain toward the Orinoco River system.

Moving westward from the city, the topography becomes increasingly varied as the land begins its gradual ascent toward the Andes. Rolling hills and gentle slopes characterize this transitional zone, with elevations rising progressively from the plains level to several hundred meters above sea level. The landscape features a mix of agricultural lands, pastures, and patches of tropical forest, particularly in areas with better drainage and slightly higher elevation.

The northern areas around Barinas display similar characteristics to the western zones, with undulating terrain that becomes more pronounced as distance from the city center increases. Several river valleys cut through this region, creating natural corridors and additional topographical variation. The Portuguesa River and its tributaries have carved distinct channels through the landscape, creating both flat floodplains and slightly elevated interfluves.

Optimal Areas for Large-Scale Solar Development

The extensive plains lying to the east and southeast of Barinas represent the most promising locations for large-scale solar photovoltaic installations. These areas offer several key advantages including minimal topographical obstacles, consistent flat terrain that reduces construction and maintenance costs, and vast expanses of available land. The gentle nature of the Llanos means that solar panel arrays can be installed with minimal grading or site preparation, while the open landscape ensures minimal shading from natural features.

The transitional zones to the west and northwest of the city also present viable opportunities for solar development, particularly on the elevated plateaus and gentle slopes that face favorable orientations. These areas benefit from good drainage characteristics and stable soil conditions, though they may require more careful site selection to avoid steeper gradients and ensure optimal panel positioning.

Areas immediately adjacent to existing infrastructure and transportation networks would be particularly advantageous for large-scale solar projects. The flat terrain surrounding the city provides excellent access for construction equipment and ongoing maintenance operations, while proximity to existing electrical infrastructure could reduce interconnection costs and complexity.

The seasonal flooding patterns common in some portions of the Llanos should be considered when selecting specific sites, with slightly elevated areas or locations with proven drainage characteristics being preferable for long-term solar installations. The interfluves between major river systems often provide ideal combinations of flat terrain, good drainage, and accessibility that make them particularly well-suited for extensive solar arrays.
