Cabudare, Lara, Venezuela represents an excellent location for year-round solar energy generation, benefiting from its tropical position where consistent sunlight is available throughout most of the year with seasons characterized more by wet and dry periods than temperature variations.

Solar Energy Output Performance

The solar energy production data for Cabudare shows remarkably consistent performance across all seasons. Summer delivers the highest output at 5.95 kWh per day per kW of installed solar capacity, followed closely by autumn at 5.88 kWh per day. Both winter and spring produce identical outputs of 5.69 kWh per day per kW installed. This consistency makes Cabudare particularly attractive for solar installations, as there are no dramatic seasonal drops in energy production that might affect system economics. The variation between the best performing season (summer) and the lowest performing seasons (winter and spring) is only about 4.4%, which is exceptionally small compared to locations at higher latitudes.

Optimal Installation Configuration

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 10 degrees facing south. This relatively shallow angle is typical for locations close to the equator, where the sun maintains a high position in the sky throughout the year.

Environmental and Weather Challenges

Several environmental factors could potentially impact solar energy production in Cabudare and require consideration during installation planning:

Tropical Rainfall and Humidity

The tropical climate brings periods of heavy rainfall and high humidity levels. While rain can actually help clean solar panels naturally, excessive moisture can lead to corrosion of mounting systems and electrical components if not properly protected. Preventative measures include using marine-grade aluminum or galvanized steel mounting systems with proper drainage channels, and ensuring all electrical connections are sealed with weatherproof enclosures rated for high humidity environments.

Dust and Particulate Accumulation

Venezuela's location and local industrial activity can result in dust accumulation on solar panels, particularly during dry seasons. This buildup reduces light transmission and decreases energy output. Installing panels at the recommended 10-degree tilt helps with natural cleaning during rain events, but regular maintenance washing schedules should be established during extended dry periods.

Potential Storm Activity

The Caribbean region can experience tropical storms and hurricanes, though Venezuela's northern coast location provides some protection. Solar installations should use reinforced mounting systems designed to withstand high wind loads, with panels secured according to local building codes for hurricane-prone areas.

Temperature Considerations

High ambient temperatures in tropical locations can reduce solar panel efficiency, as photovoltaic cells perform less efficiently as they heat up. Proper installation techniques include ensuring adequate airflow beneath panels by maintaining appropriate spacing from roof surfaces, and selecting panels with better temperature coefficients that maintain higher efficiency in hot conditions. The consistent solar resource and manageable environmental challenges make Cabudare a highly suitable location for solar energy projects, provided proper installation practices address the tropical climate conditions.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 83 locations across Venezuela. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Venezuela by location

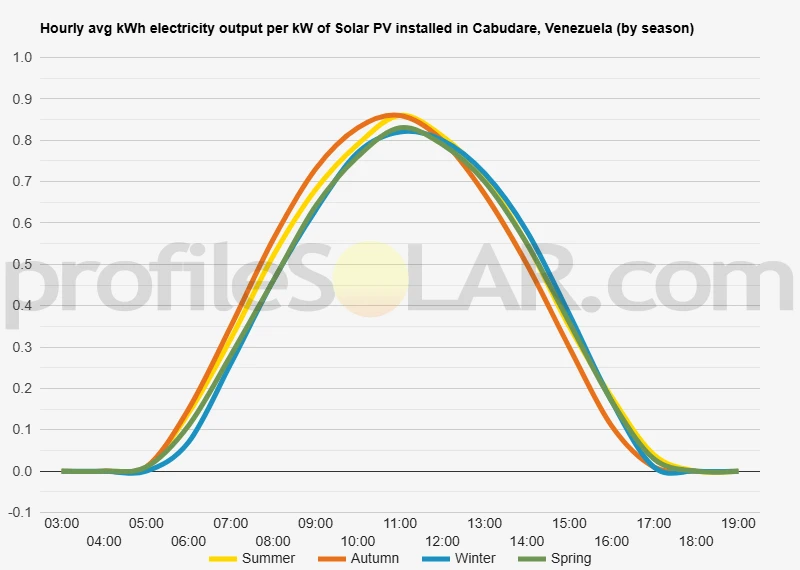

Solar output per kW of installed solar PV by season in Cabudare

Seasonal solar PV output for Latitude: 10.0248, Longitude: -69.2642 (Cabudare, Venezuela), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Cabudare, Venezuela

To maximize your solar PV system's energy output in Cabudare, Venezuela (Lat/Long 10.0248, -69.2642) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cabudare, Venezuela

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cabudare, Venezuela. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	15° South in Autumn	25° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cabudare, Venezuela

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cabudare, Venezuela.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cabudare, Venezuela

Topographical Features of Cabudare

Cabudare sits in the Lara state of Venezuela, positioned within a valley system that forms part of the broader Barquisimeto metropolitan area. The city itself occupies relatively flat terrain at an elevation of approximately 560 meters above sea level, nestled between rolling hills and gentle slopes that characterize this portion of the Venezuelan Andes foothills. The immediate surroundings feature a mix of urban development and agricultural lands, with the terrain gradually rising toward the south and east where the landscape becomes more mountainous. The region experiences a semi-arid climate typical of the Venezuelan coastal mountain valleys, with distinct wet and dry seasons that have shaped the local topography over millennia. The area features numerous small valleys and ridges created by seasonal water flow patterns, though the overall relief is moderate rather than dramatic. Natural drainage patterns flow generally northward toward the Caribbean coastal plain, creating gentle gradients across much of the surrounding countryside.

Terrain Characteristics for Solar Development

The topography around Cabudare presents several advantageous features for large-scale solar photovoltaic installations. The most promising areas lie to the north and northwest of the city, where extensive flat to gently sloping terrain stretches toward the coastal plains. These areas offer minimal elevation changes and relatively few natural obstacles, making them ideal for the construction and maintenance of solar arrays. South-facing slopes in the immediate vicinity provide excellent orientation for solar panels, particularly those with gradients between 5 and 15 degrees. The rolling hills southeast of Cabudare feature numerous such slopes that could accommodate utility-scale solar installations while maintaining optimal sun exposure throughout the day. The stable geological conditions in these areas, primarily composed of sedimentary formations, provide solid foundations for mounting systems.

Optimal Locations for Solar Installations

The most suitable areas for large-scale solar development cluster in three main zones around Cabudare. The first encompasses the relatively flat agricultural lands extending northward toward the Turbio River valley, where minimal grading would be required and existing road infrastructure could support construction and maintenance activities. This zone benefits from consistent terrain elevation and minimal shading from natural features. The second promising area lies along the eastern approaches to the city, where gentle hillsides offer natural south-facing orientations. These locations combine favorable topography with proximity to existing electrical transmission infrastructure, reducing connection costs for utility-scale projects. The terrain in this zone typically requires minimal earthwork while providing natural drainage for stormwater management. The third zone of interest stretches along the western periphery of the metropolitan area, where former agricultural lands present large contiguous parcels with suitable topography. These areas feature stable soil conditions and gentle slopes that facilitate both construction access and long-term operational efficiency. The western zone also benefits from reduced urban development pressure, potentially making land acquisition more feasible for large-scale projects. Areas to the south and southeast, while receiving excellent solar exposure, present more challenging topographical conditions with steeper slopes and more complex terrain that would require significant site preparation. The mountainous regions further south, though less developed, would face substantial construction challenges and higher infrastructure costs due to their rugged topography and limited access routes.
