Catia, Distrito Federal, Venezuela presents an excellent location for year-round solar energy generation, benefiting from its tropical position where consistent sunlight is available throughout most of the year, with seasons characterized more by wet and dry periods rather than significant temperature variations.

Solar Energy Production Potential

The solar energy output data for Catia demonstrates remarkably consistent performance across all seasons. Spring delivers the highest production at 6.16 kWh per day per kW of installed solar capacity, closely followed by autumn at 6.12 kWh/day. Summer provides 6.05 kWh/day, while winter shows the lowest but still substantial output at 5.58 kWh/day per kW installed. This seasonal variation of less than 0.6 kWh between the best and worst performing seasons indicates exceptional year-round reliability for solar energy generation. The relatively minor seasonal fluctuation makes Catia an ideal location for consistent solar power production throughout the entire year.

Optimal Installation Configuration

For maximum year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 10 degrees facing south. This optimal angle is calculated by analyzing daily solar elevation angles at Catia's latitude, determining daily optimal panel positioning, and weighting these angles according to solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several significant local factors could impact solar energy production in Catia and require careful consideration during installation:

• Heavy tropical rainfall: Venezuela's wet season brings intense downpours that can reduce solar irradiance and create water-related issues
• High humidity levels: Persistent moisture in the air can affect equipment performance and longevity
• Dust and particulate accumulation: Dry season conditions can lead to significant dust buildup on panel surfaces
• Salt air exposure: Proximity to the Caribbean coast means salt-laden air can accelerate corrosion of metal components
• Intense UV radiation: Strong tropical sunlight can degrade certain materials more rapidly than in temperate climates

Preventative Measures for Optimal Performance

To maximize energy production despite these environmental challenges, several installation strategies should be implemented:

• Enhanced drainage systems: Install panels with adequate spacing and proper mounting to ensure rapid water runoff during heavy rains
• Corrosion-resistant materials: Use marine-grade aluminum frames and stainless steel hardware specifically designed for coastal tropical environments
• Regular cleaning protocols: Establish routine panel cleaning schedules to remove dust, salt deposits, and organic matter
• Improved ventilation: Mount panels with sufficient air circulation underneath to reduce heat buildup and moisture retention
• UV-resistant components: Select cables, junction boxes, and mounting materials rated for high UV exposure in tropical conditions
• Protective coatings: Apply anti-corrosive treatments to all metal components and consider anti-reflective coatings that also repel dust and water

With proper installation techniques and materials selected for tropical coastal conditions, Catia's consistently high solar energy potential can be fully realized while minimizing the impact of local environmental challenges.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 83 locations across Venezuela. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Venezuela by location

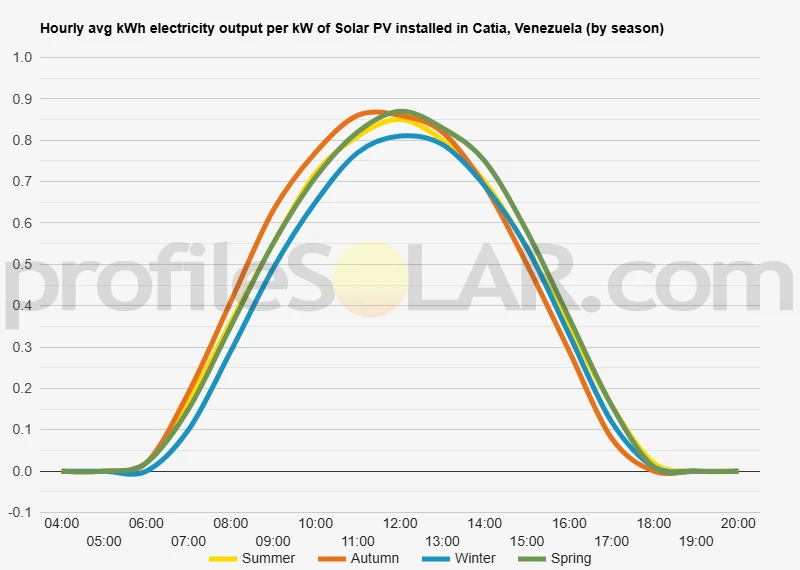

Solar output per kW of installed solar PV by season in Catia

Seasonal solar PV output for Latitude: 10.5127, Longitude: -66.9378 (Catia, Venezuela), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Catia, Venezuela

To maximize your solar PV system's energy output in Catia, Venezuela (Lat/Long 10.5127, -66.9378) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Catia, Venezuela

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Catia, Venezuela. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	16° South in Autumn	26° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Catia, Venezuela

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Catia, Venezuela.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Catia, Venezuela

Topographical Features of Catia

Catia sits within the Caracas metropolitan area of Venezuela, positioned in a valley system that characterizes much of the northern coastal region. The terrain around this location is notably hilly and mountainous, with the Cordillera de la Costa mountain range dominating the landscape to the north and south. These mountains create a series of valleys and ridges that run generally in an east-west direction, following the coastal mountain chain that separates the Caribbean Sea from the interior plains. The immediate area around Catia features steep slopes and irregular terrain typical of urban settlements that have developed on hillsides. Elevation changes are dramatic and frequent, with residential areas climbing up mountainsides at various gradients. The topography includes numerous ravines, small valleys, and ridge lines that create a complex three-dimensional landscape. Water drainage patterns follow these natural contours, with streams and seasonal watercourses carving additional channels through the terrain.

Terrain Challenges for Solar Development

The mountainous topography presents significant challenges for large-scale solar photovoltaic installations. The steep gradients mean that most land requires substantial grading and terracing to create suitable mounting surfaces for solar panels. Additionally, the irregular terrain creates shadowing issues, where higher elevations cast shadows on lower areas during different times of day and seasons. The existing urban development has claimed much of the more accessible terrain, leaving primarily steep slopes and ridge tops as potential development sites. These locations often lack adequate road access for construction equipment and ongoing maintenance requirements. The soil stability on many slopes may also present engineering challenges for heavy solar installations.

Optimal Areas for Solar Development

Despite the challenging topography, several types of locations in the broader region would be more suitable for large-scale solar installations. Ridge tops and plateau areas that have escaped dense urban development offer the best potential, as they typically receive less shadowing from adjacent terrain features. These elevated positions also benefit from better air circulation, which can help maintain optimal panel temperatures. Areas to the south and southeast of Catia, where the terrain begins to transition toward the interior plains, present more favorable conditions. Here, the land becomes gradually less mountainous, with longer, gentler slopes and occasional flat areas that could accommodate larger solar arrays with less site preparation. The industrial zones and less densely populated areas along transportation corridors also represent opportunities, particularly where existing infrastructure can support the electrical grid connections required for utility-scale solar installations. Former agricultural areas or undeveloped land in the broader Caracas valley system, while limited, could provide suitable sites with proper environmental and land-use considerations. Coastal plain areas, though somewhat distant from Catia itself, offer the most favorable topography for extensive solar development. These flatter regions require minimal site preparation and allow for optimal panel orientation and spacing, though they would need substantial transmission infrastructure to serve the urban areas around Catia.
