Caucagua, Miranda, Venezuela is an excellent location for year-round solar energy generation, with consistently high electricity output throughout all seasons. Located in the tropical zone at coordinates 10.2859°N, -66.3758°W, this area benefits from stable sunlight patterns typical of equatorial regions where seasonal variations are minimal.

Solar Energy Production Performance

The solar energy output at Caucagua demonstrates remarkable consistency across all meteorological seasons. Spring delivers the highest production at 6.16 kWh per day per kW of installed solar capacity, followed closely by autumn at 6.12 kWh/day and summer at 6.05 kWh/day. Even during winter, the lowest-producing season, the location still generates a strong 5.58 kWh/day per kW installed. This performance profile makes Caucagua ideal for solar installations, as the difference between peak and lowest production seasons is only about 10%. Such stability allows for reliable energy planning and reduces the need for extensive battery storage or backup systems.

Optimal Installation Configuration

For maximum year-round solar production at Caucagua, Miranda, fixed solar panels should be tilted at 10 degrees facing south. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year, determining optimal panel positioning for each day, and weighting these angles according to solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production in Caucagua and require careful consideration during installation planning. Tropical Weather Patterns Venezuela's tropical climate brings intense wet seasons with heavy rainfall, high humidity, and frequent cloud cover. During wet periods, cloud formation can significantly reduce solar irradiance, though the seasonal production data already accounts for these typical weather patterns. The high humidity levels can also lead to moisture-related equipment issues if proper sealing and ventilation aren't implemented. Dust and Particulate Accumulation The combination of dry seasons and Venezuela's geographical features can result in dust accumulation on solar panels. Harmattan winds and local dust storms may deposit particles that reduce panel efficiency over time. Vegetation Growth The tropical environment supports rapid vegetation growth, which can create shading issues if not properly managed during initial site planning and ongoing maintenance.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Waterproofing and Drainage: Install panels with robust waterproof sealing and ensure proper drainage systems to handle intense tropical rainfall
• Ventilation Design: Incorporate adequate air circulation around panels and electrical components to manage humidity and prevent moisture buildup
• Anti-Corrosion Materials: Use marine-grade or tropical-rated mounting hardware and electrical components designed to withstand high humidity environments
• Regular Cleaning Systems: Implement automated cleaning systems or establish frequent manual cleaning schedules to remove dust and debris
• Strategic Site Clearing: Conduct thorough vegetation management during installation and plan for ongoing landscape maintenance to prevent shading

Overall Assessment

Despite these environmental considerations, Caucagua represents a highly favorable location for solar energy generation. The consistent high output across all seasons, combined with proper installation techniques and maintenance protocols, makes this location excellent for both residential and commercial solar projects. The relatively minor seasonal variation in production provides exceptional reliability for energy planning purposes.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 83 locations across Venezuela. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Venezuela by location

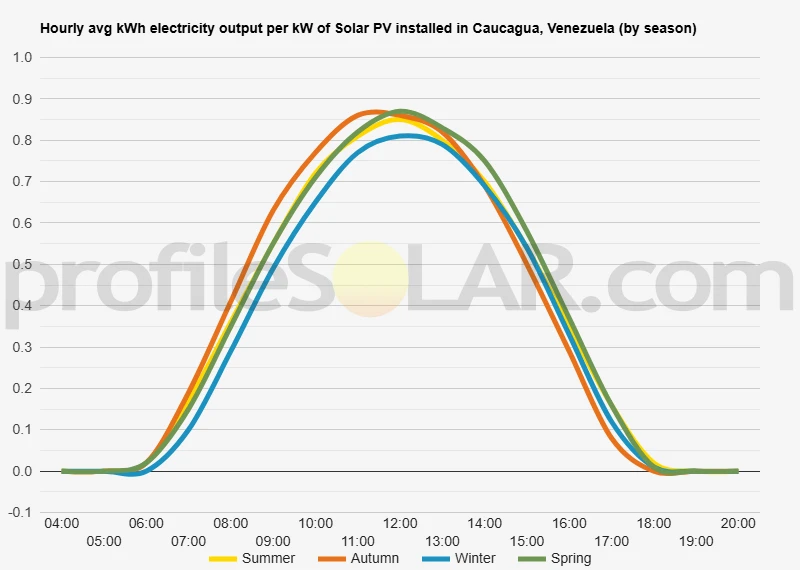

Solar output per kW of installed solar PV by season in Caucagua

Seasonal solar PV output for Latitude: 10.2859, Longitude: -66.3758 (Caucagua, Venezuela), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Caucagua, Venezuela

To maximize your solar PV system's energy output in Caucagua, Venezuela (Lat/Long 10.2859, -66.3758) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Caucagua, Venezuela

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Caucagua, Venezuela. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	16° South in Autumn	26° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Caucagua, Venezuela

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Caucagua, Venezuela.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Caucagua, Venezuela

Topographical Features of the Caucagua Region

Caucagua sits in the Miranda state of Venezuela, positioned within the northern coastal mountain range known as the Cordillera de la Costa. The immediate landscape around this town is characterized by rolling hills and moderate elevation changes, with the settlement itself nestled in a valley system that provides natural shelter from stronger coastal winds. The terrain gradually rises toward the south and east, where the foothills of the coastal mountains become more pronounced.

The region displays a mixed topography of undulating plains interspersed with low ridges and gentle slopes. These geographical features create a patchwork of elevated areas and flatter zones that extend northward toward the Caribbean coastal plains. The elevation changes are generally gradual rather than abrupt, making much of the surrounding landscape accessible for development while still providing natural drainage patterns.

Water features in the area include several seasonal streams and small tributaries that flow toward the larger river systems. These waterways have carved shallow valleys through the landscape over time, creating natural corridors between the higher ground. The soil composition varies from sandy loam in the flatter areas to more rocky terrain on the hillsides, reflecting the underlying geological structure of the coastal mountain system.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the gently sloping terrain to the north and northwest of Caucagua. These areas offer relatively flat to moderately inclined surfaces that would minimize the need for extensive land preparation while providing excellent exposure to solar radiation throughout the day. The natural gradient of these slopes also facilitates proper drainage, which is essential for maintaining solar panel efficiency and longevity.

The elevated plateaus and ridge tops in the surrounding area present additional opportunities for solar development. These higher elevations typically experience less atmospheric interference and benefit from consistent air circulation that helps maintain optimal operating temperatures for photovoltaic systems. The ridge systems running roughly east to west would be particularly advantageous, as they provide southern-facing slopes ideal for solar panel orientation.

Areas with minimal vegetation and lower agricultural value would be preferable for large-scale solar installations to minimize environmental impact and land use conflicts. The transitional zones between the more fertile valley bottoms and the steeper hillsides often present such opportunities, offering sufficient space for extensive solar arrays while avoiding prime agricultural land or sensitive ecological areas.

Access to existing infrastructure would also influence site selection for major solar developments. Areas within reasonable proximity to electrical transmission lines and transportation networks would reduce installation costs and improve project feasibility. The flatter terrain extending toward the coastal plains would likely provide the best combination of suitable topography and infrastructure access for the largest scale solar installations.
